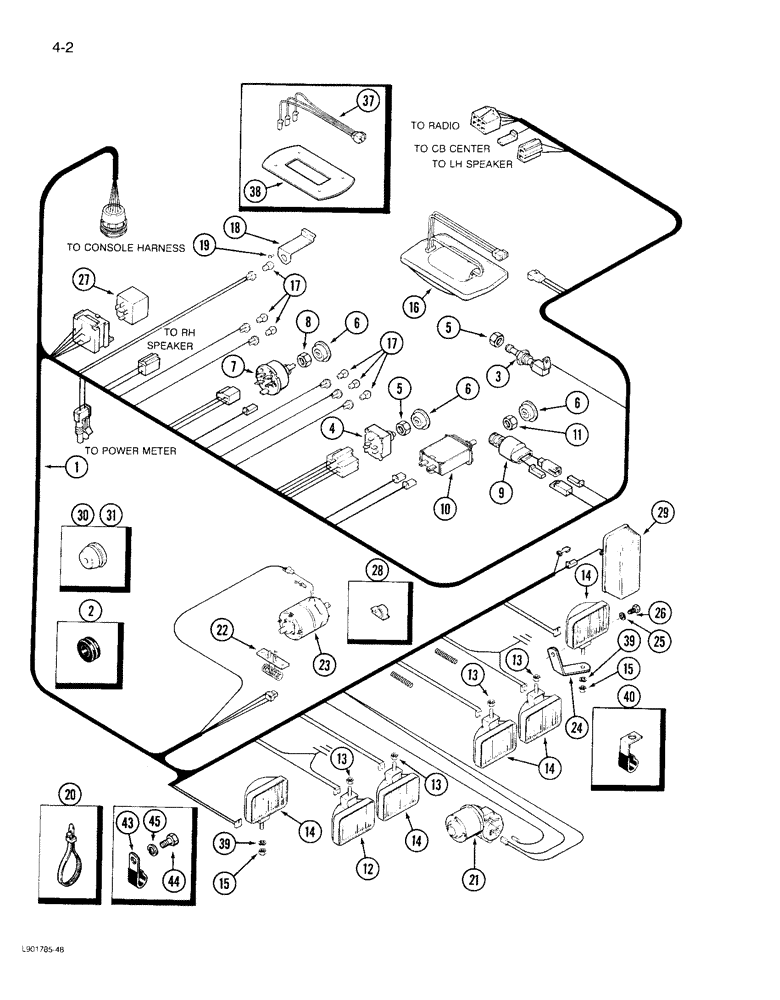

Запчасти Case IH 1822 (4-02) - CAB ROOF HARNESS (06) - ELECTRICAL SYSTEMS

1

84311C5

HARNESS

ASSEMBLY - roof, cab

1шт.

2

3063674R1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome light control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex jam

1шт.

6

111282C1

KNOB

- blower, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex jam

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioner, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioner, low pressure

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex jam

2шт.

12

91666C91

INTERIOR LIGHT

LAMP ASSEMBLY - headlight (55 x 30 Halogen flood)

1шт.

13

118647

NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

4шт.

14

245897C91

LAMP, WORK

LIGHT ASSEMBLY - work and outer flood light (Halogen flood)

5шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

16

REF

INSTRUCTION

LIGHT ASSEMBLY - dome (See Page 4-59)

1шт.

17

127934

BELT, TRANSMISSION

LAMP - cab instrument panel backlight and warning light (Type C-2V, trade No. 57)

5шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

5шт.

19

28152R1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - tap, No. 8 x 1/2 inch

5шт.

20

111619C1

STRAP

- adjustable

6шт.

21

REF

INSTRUCTION

MOTOR - wiper (See Page 4-61)

1шт.

22

REF

INSTRUCTION

RESISTOR ASSEMBLY - blower (See Page 9D-29)

1шт.

23

REF

INSTRUCTION

MOTOR - blower, 12 volt, DC, PM (See Page 9D-29)

1шт.

24

1283289C1

ANGLE

- outer flood light mounting bracket

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

26

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

2шт.

27

146461C1

RELAY

- air conditioner (Alternate with 3221235R2)

1шт.

27

3221235R2

RELAY

- air conditioner (Alternate with 146461C1)

1шт.

28

169850C1

CLIP

- harness (plastic)

6шт.

29

REF

INSTRUCTION

LAMP ASSEMBLY - warning (See Page 4-57)

1шт.

30

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- light harness, right

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- light harness, left

1шт.

37

1983386C1

HARNESS

- dome light adapter

1шт.

38

1979628C1

LARGE PLATE

PLATE - dome light

1шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

40

370383R1

CLIP

- warning lamp

4шт.

43

371036R1

CLIP

- retaining, rubber covered

1шт.

44

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

45

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
