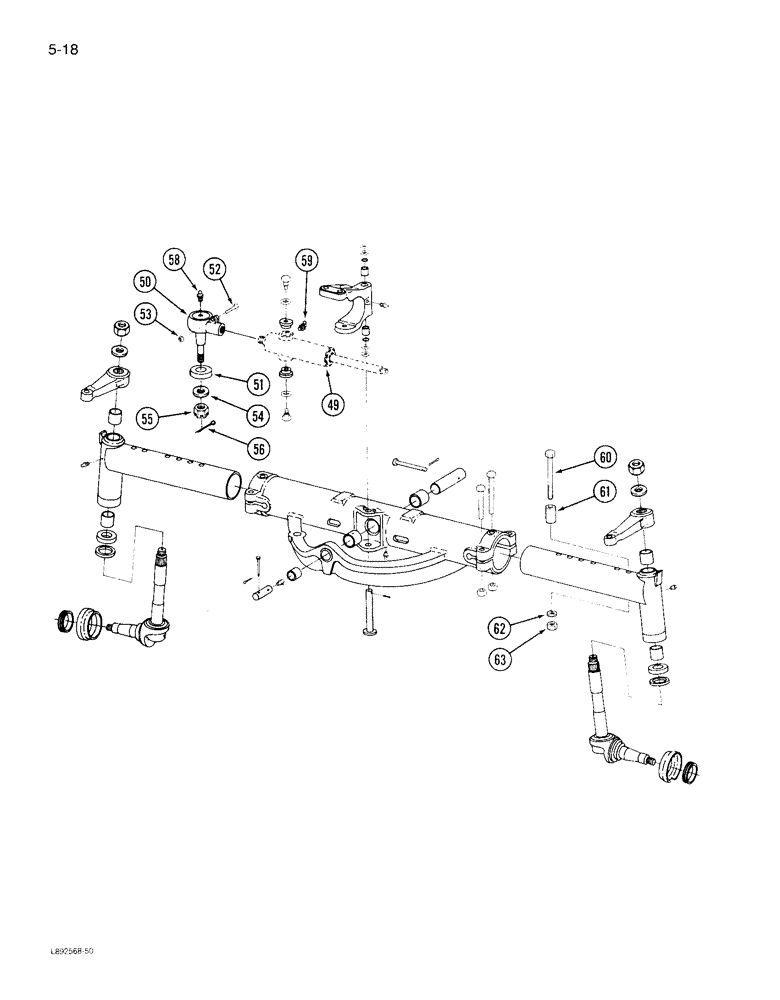

Запчасти Case IH 1822 (5-18) - STEERING AXLE, 1822 COTTON PICKER (04) - STEERING

49

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Page 5-11)

1шт.

50

1280566C2

BALL JOINT

END ASSEMBLY - ball joint rod

1шт.

50

71820C91

END

ASSEMBLY - ball joint rod

1шт.

51

250586C1

SEAL

- dust (Use with end 1280566C2)

1шт.

51

71822C1

SEAL

- dust (Use with end 71820C91)

1шт.

52

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

53

69981R1

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

54

614451R1

WASHER

- flat, 1-1/32 x 1-3/4 x 7/64 inch

1шт.

55

272322

WASHER

- hex slotted, 7/8 inch NF

1шт.

56

132-77

COTTER PIN,5/32" x 2"

Pin, Split (Cotter), 5/32" x 2"

1шт.

58

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

59

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - 65 degree grease, 3/16 inch

2шт.

60

25378R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 8

- hex, 3/4 NC x 7-1/2 inch, Grade 8

2шт.

61

1338712C1

SPACER

- stop, wheel turn

2шт.

62

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

63

129-138

NUT,3/4"-10, G8

2шт.
