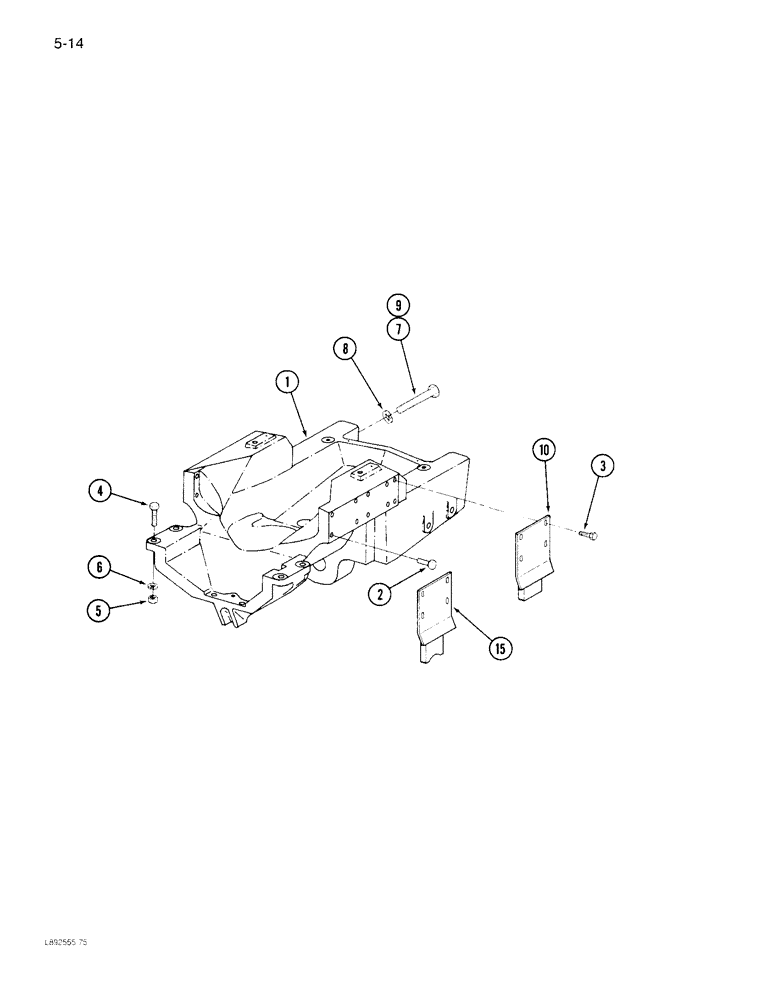

Запчасти Case IH 1822 (5-14) - STEERING AXLE BOLSTER (04) - STEERING

1

1280704C1

BOLSTER

- steering

1шт.

2

30065R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

3

30066R1

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

4

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

7

30120R1

BOLT,Hex, M24 x 120mm, Cl 10.9

- hex, 24 x 120 mm, Grade 10.9 (1844 only)

4шт.

8

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9

628-24060

BOLT,Hex, M24 x 3 x 60mm, Cl 10.9, Full Thd

(1822 only) Hex, M24 x 60, 10.9, Full Thd

4шт.

10

87568C2

RETAINER

STOP - axle (1844 Picker)

2шт.

15

1338426C1

LARGE PLATE

STOP - axle (1822 Picker)

2шт.
