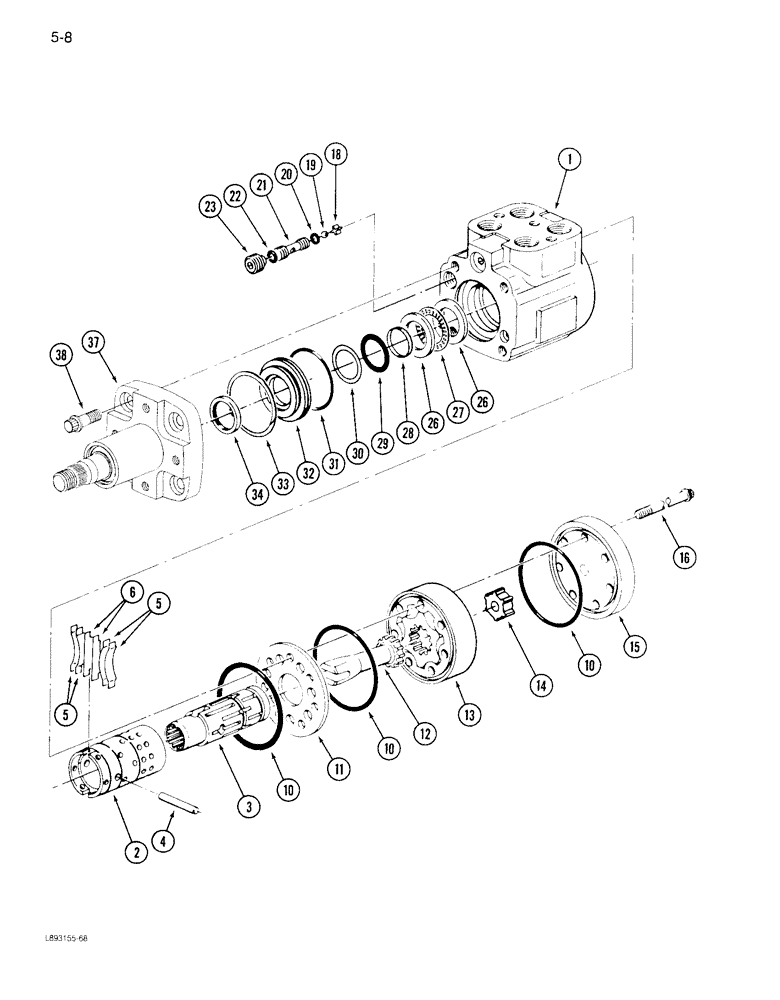

Запчасти Case IH 1822 (5-08) - STEERING PUMP ASSEMBLY (04) - STEERING

1978328C1

PUMP

ASSEMBLY - steering

1шт.

1343643C1

VALVE BLOCK

HOUSING AND CONTROL ASSEMBLY - pump

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, manual steering (Not shown)

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, inlet (Not shown)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

4

L30888

PIN

- centering

1шт.

N14250

KIT

SPRING KIT - centering

1шт.

5

NSS

NOT SOLD SEPARAT

SPRNG - centering

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - spring

2шт.

10

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

SEAL - end cap

3шт.

Part of pump seal kit P/N 1343658C1

1шт.

11

S113037

PLATE

- spacer

1шт.

12

L30878

DRIVE SHAFT

DRIVE - gerotor

1шт.

13

1343638C1

ROTOR

GEROTOR ASSEMBLY - pump

1шт.

14

1343646C1

SPACER

- gerotor

1шт.

15

D82809

COVER

CAP - end

1шт.

16

1343641C1

SCREW,Flg, 5/16" - 24 x 1 5/8", Gr 8

BOLT, 12 Pt Flg, 5/16"-24 x 1 5/8", G8

7шт.

18

L35368

RETAINER

- check ball

1шт.

19

211-208

BALL,5/16" Dia

- check

1шт.

20

L30893

O-RING,1/16" Thk x 5/16" ID

- check ball seat, 7/16 x 5/16 x 1/16 in

1шт.

Part of pump seal kit P/N 1343658C1

1шт.

21

D82806

VALVE SEAT

SEAT - check ball

1шт.

22

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

SEAL - 3/8 inch ID

1шт.

Part of pump seal kit P/N 1343658C1

1шт.

23

D82805

SET SCREW

SCREW - set

1шт.

26

D82804

RACE

- thrust bearing

2шт.

27

G13604

BEARING

- needle, thrust

1шт.

28

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon

1шт.

Part of pump seal kit P/N 1343658C1

1шт.

29

L15402

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

- 1-3/64 x 7/64 inch, 70 durometer

1шт.

Part of pump seal kit P/N 1343658C1

1шт.

30

N13314

RING

- backup

1шт.

Part of pump seal kit P/N 1343658C1

1шт.

31

N14515

VALVE POPPET

SEAL - 1-7/8 inch ID

1шт.

Part of pump seal kit P/N 1343658C1

1шт.

32

N13312

CYLINDER END CAP

BUSHING - seal gland

1шт.

33

S110169

WASHER

RING - retaining

1шт.

34

A28211

OIL SEAL

- 1 inch ID

1шт.

Part of pump seal kit P/N 1343658C1

1шт.

37

1343648C1

COVER

COLUMN ASSEMBLY - pump

1шт.

38

1343650C1

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT, 12 Pt Flg, 3/8"-16 x 1", G8

4шт.

1343658C1

SEAL KIT

SEAL KIT - pump, Includes Refs. 10, 20, 22, 28, 29, 30, 31 and 34

1шт.
