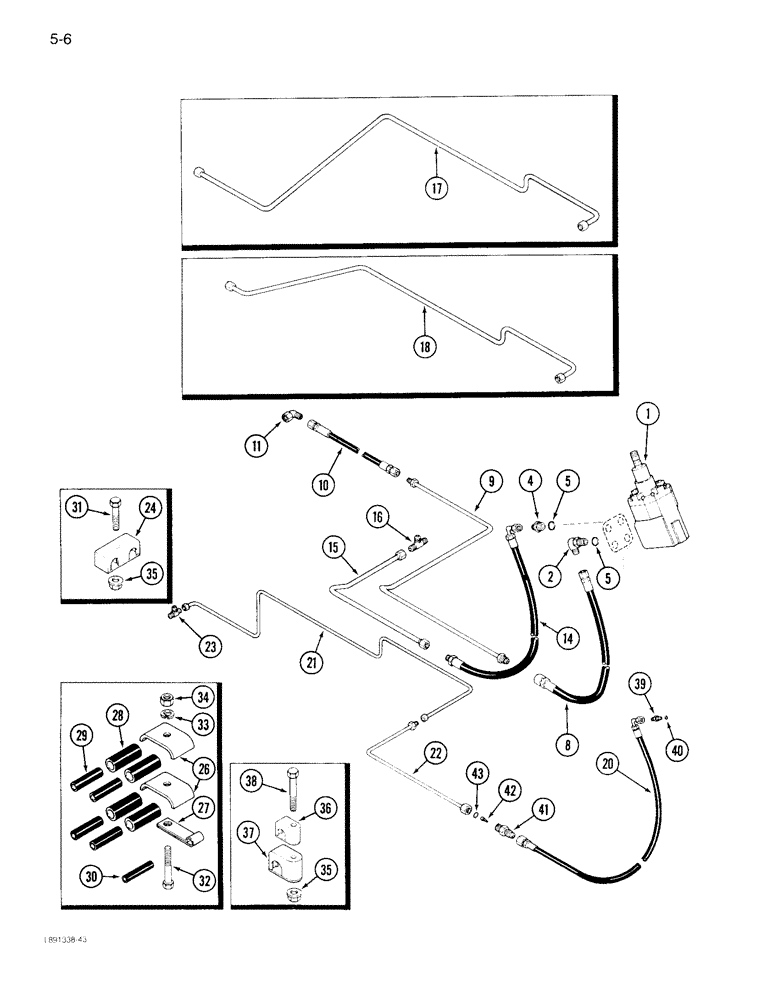

Запчасти Case IH 1822 (5-06) - STEERING SYSTEM SUPPLY, RETURN AND SENSING SYSTEM (04) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - steering (See Page 5-9)

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flared x 3/4-16 inch o-ring boss

1шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 o-ring boss

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD

2шт.

8

1979138C1

HOSE

ASSEMBLY - pressure, steering

1шт.

9

1978087C1

TUBE

ASSEMBLY - supply, steering

1шт.

10

1270453C1

HYDRAULIC HOSE

HOSE ASSEMBLY - supply, steering

1шт.

11

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree swivel, 3/8 inch

1шт.

14

1977123C1

HOSE

ASSEMBLY - return, steering

1шт.

15

1285364C3

TUBE

ASSEMBLY - steering tank

1шт.

16

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

- flared, 3/8 inch

1шт.

17

1285499C3

HYD TUBE

TUBE ASSEMBLY - steering tank (1822 only)

1шт.

18

1285363C3

TUBE

ASSEMBLY - steering tank (1844 only)

1шт.

20

1977124C3

HOSE

ASSEMBLY - sensing, steering

1шт.

21

1285357C2

TUBE

ASSEMBLY - steering sense

1шт.

22

1980247C1

TUBE

ASSEMBLY - sensing, steering

1шт.

23

9402979

TEE,7/16"-20, 37 Degree

- flared, 1/4 inch

1шт.

24

183824C1

CLAMP

- tube (For 1/4 inch OD tube)

1шт.

24

183825C1

CLAMP

- tube (For 3/8 inch OD tube)

1шт.

26

165601C1

CLAMP

- tube

2шт.

27

633125R1

CLAMP

- tube

1шт.

28

163491C1

RUBBER INSULATOR

STRIP - insulator, 1/2 inch

4шт.

29

163490C1

RUBBER INSULATOR

STRIP - insulator, 3/8 inch

4шт.

30

163489C1

STRIP

- insulator, 1/4 inch

1шт.

31

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

32

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

33

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

34

120377

NUT,3/8" - 16, Gr 5

1шт.

35

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

3шт.

36

183820C1

CLAMP

- tube (For 1/4 inch OD tube)

1шт.

37

183821C1

CLAMP

- tube (For 3/8 inch OD tube)

1шт.

38

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

39

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - swivel, 7/16-20 inch thread

1шт.

40

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

41

1980237C2

CHECK VALVE

VALVE ASSEMBLY - check

1шт.

42

NSS

NOT SOLD SEPARAT

SCREEN - flow

1шт.

43

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.
