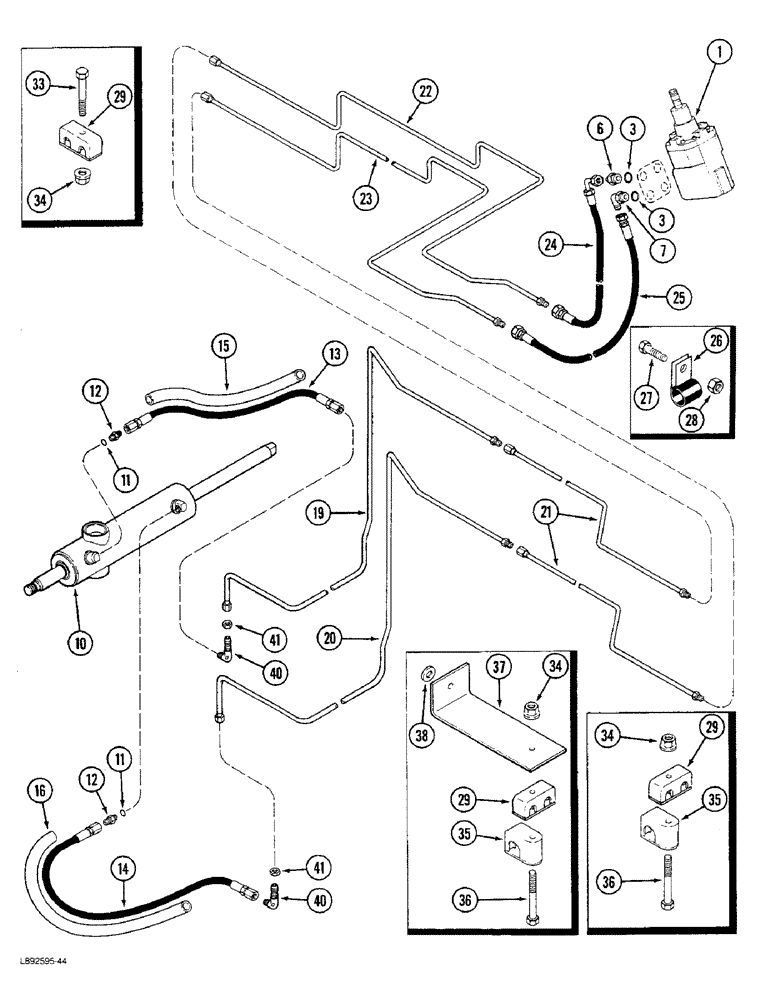

Запчасти Case IH 1822 (5-04) - STEERING SYSTEM STEERING PUMP TO STEERING CYLINDER (04) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - steering (See Page 5-9)

1шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube

2шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

7

935036R91

ELBOW

- 90 degree adjustable, 1/2 to 3/8 inch

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - power steering (See Pages 5-11 and 5-13)

1шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

12

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short swivel, 3/8 inch

2шт.

13

87706C1

HYDRAULIC HOSE

HOSE - left turn, rear (1822 only)

1шт.

13

1284338C1

HYDRAULIC HOSE

HOSE - left turn, rear (1844 only)

1шт.

14

1251872C2

HYDRAULIC HOSE

HOSE - right turn, rear (1822 only)

1шт.

14

1270453C1

HYDRAULIC HOSE

HOSE - right turn, rear (1844 only)

1шт.

15

NSS

NOT SOLD SEPARAT

COVER - hose, 31 inch (Order 87283C1 and cut to length) (1844)

2шт.

16

NSS

NOT SOLD SEPARAT

COVER - hose, 19 inch (Order 87283C1 and cut to length) (1822)

2шт.

87283C1

HOSE

- bulk, 50 foot roll

1шт.

19

1329205C3

TUBE

- left turn, third

1шт.

20

1329204C3

HYD TUBE

TUBE - right turn, third

1шт.

21

1285305C3

HYD TUBE,0.375" OD, 1657.3, 124.4 mm Length

TUBE ASSEMBLY - left and right turn, second

2шт.

22

1285310C3

HYD TUBE

TUBE ASSEMBLY - left turn, first

1шт.

23

1285303C3

TUBE

ASSEMBLY - right turn, first

1шт.

24

1979139C1

HOSE

- left turn, front

1шт.

25

1977125C1

HOSE

- right turn,front

1шт.

26

49845

CLAMP

- closed coated

4шт.

27

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

28

120376

NUT,5/16"-18, G5

2шт.

29

183825C1

CLAMP

- tube (1st and 2nd turn tubes)

8шт.

33

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

6шт.

34

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch

8шт.

35

183822C1

CLAMP

- tube

2шт.

36

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

37

288201C1

SUPPORT

BRACKET - clamp support

1шт.

38

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

40

671943R1

ELBOW

FITTING - 90 degree bulkhead union

2шт.

41

325-159

JAM NUT,Jam, 9/16"-18, G5

- hex jam, 9/16 inch NF

2шт.
