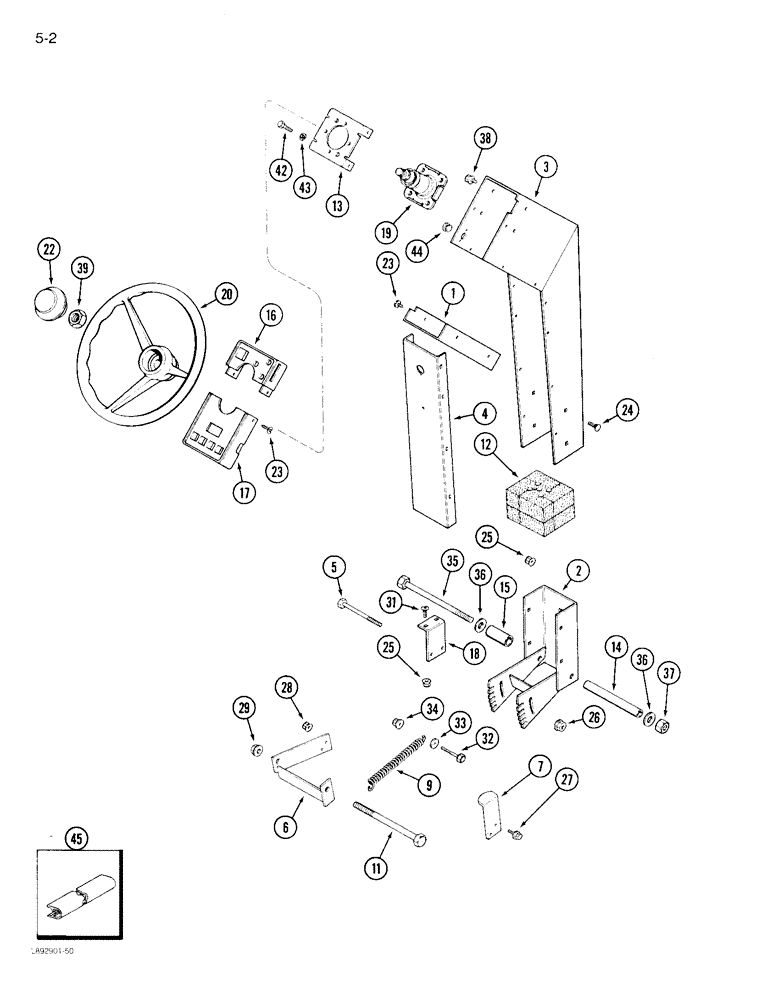

Запчасти Case IH 1822 (5-02) - STEERING WHEEL AND SUPPORT (04) - STEERING

1

1327540C3

CHANNEL

- post cover, steering

1шт.

2

1321449C1

SECTOR

- steering post pivot

1шт.

3

1327550C4

SUPPORT

POST - steering

1шт.

4

1327551C1

CHANNEL

- steering post cover

1шт.

5

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

1шт.

6

193235C3

PIVOT

- release, steering

1шт.

7

193239C2

BAR

PLATE - release, steering

1шт.

9

183608C1

SPRING

- pedal return

1шт.

11

413-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

- hex, 1/2 NC x 7-1/2 inch

1шт.

12

1327598C1

SEAL

SEAL - steering pedestal

1шт.

13

1283223C2

SUPPORT

- steering pump

1шт.

14

1321442C1

TUBE,13.51 mm ID, 19.05 mm OD

- steering column pivot

1шт.

15

1321441C1

SPACER

- steering column

1шт.

16

1327546C1

COVER

- steering column, top front

1шт.

17

1327547C2

COVER

- steering column, top rear

1шт.

18

193263C1

SUPPORT

- steering pivot stop pin

1шт.

19

REF

INSTRUCTION

PUMP ASSEMBLY - steering (See page 5-9) (Includes ref 39)

1шт.

20

1321683C1

WHEEL (STEERING)

WHEEL - steering

1шт.

22

1329895C1

CAP ASSY.

CAP ASSEMBLY - steering wheel

1шт.

23

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

SCREW - pan head cross slotted polyseal, 1/4 NC x 1/2 inch

18шт.

24

1321448C1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck polyseal, 5/16 NC x 3/4 inch

6шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

26

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

27

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

- hex flange, 1/4 NC x 3/4 inch

2шт.

28

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

29

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

31

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

32

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

33

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 1/16 inch

2шт.

34

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

35

25690R1

BOLT,Hex, 1/2" - 13 x 8", Gr 8

- hex, 1/2 NC x 8 inch, grade 8

1шт.

36

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

- flat, 17/32 x 1-1/4 x 3/16 inch

2шт.

37

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

38

1327574C1

FLANGE BOLT,Hex Serr, 5/16" - 18 x 1/2", Gr 5

BOLT - hex flange polyseal, 5/16 NC x 1/2 inch

4шт.

39

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex, steering wheel retaining

1шт.

42

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2/ inch

4шт.

43

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

44

1310707C1

PLUG

- button, turn signal switch

1шт.

45

NSS

NOT SOLD SEPARAT

SEAL - steering pivot, 3 inch (Order 196707C1 and, Serial Range: cut-length)

1шт.

196707C1

SEAL

TRIM - bulk, 50 foot roll

1шт.
