Запчасти Case IH 1822 (7-12) - PARKING BRAKE AND CONTROLS (03) - POWER TRAIN

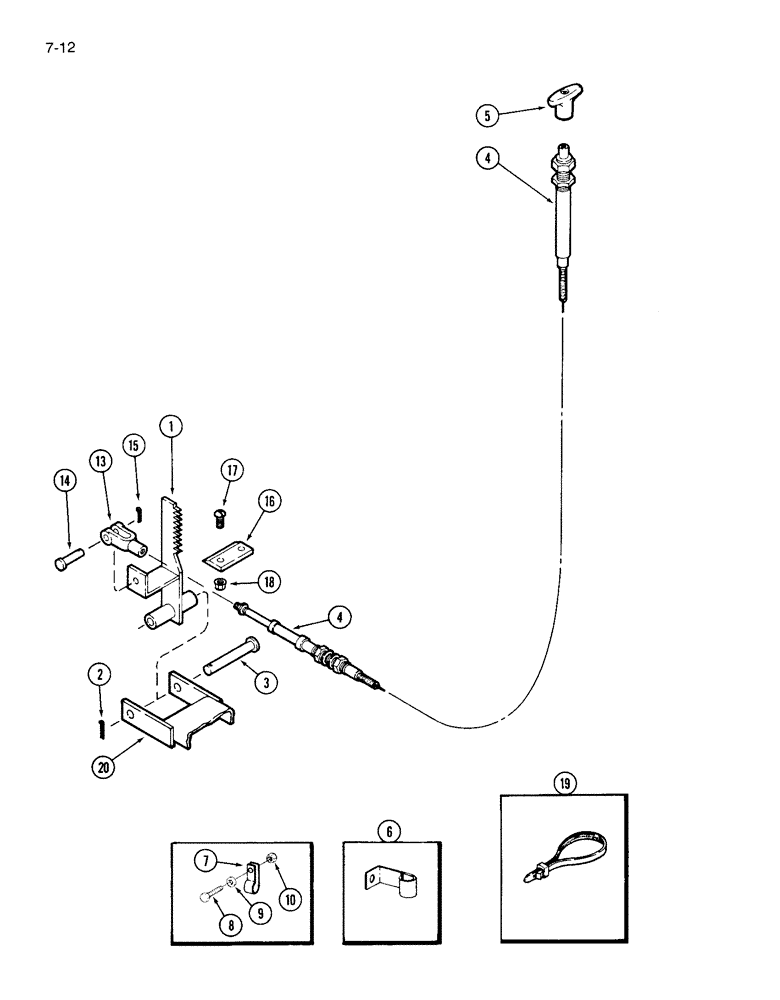

Схема запчастей Case IH 1822 - (7-12) - PARKING BRAKE AND CONTROLS (03) - POWER TRAIN
14
19
4
1
4
20
6
16
9
8
5
7
10
13
2
3
15
18
17

Артикул

Название

Примечание

Количество

1

1277202C1

PLATE

SECTOR ASSEMBLY - parking brake

1шт.

2

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

3

PO15464

HEADED PIN,3/8" x 4"

PIN - headed, 3/8 x 4 inch

1шт.

4

166149C91

CABLE

ASSEMBLY - parking brake

1шт.

5

170273C1

HANDLE

- brake control cable

1шт.

6

370383R1

CLIP

- brake cable

1шт.

7

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- retaining

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

13

117824

YOKE

CLEVIS - No. 10-32 x 1-9/16 inch

1шт.

14

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

1шт.

15

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

16

177802C1

BAR

- parking brake ratchet

1шт.

17

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

2шт.

18

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

19

702093C1

CABLE TIE

STRAP - cable retaining

5шт.

20

REF

INSTRUCTION

SUPPORT ASSEMBLY - brake actuator (See Page 7-9)

1шт.

Выбрано товаров: 18
