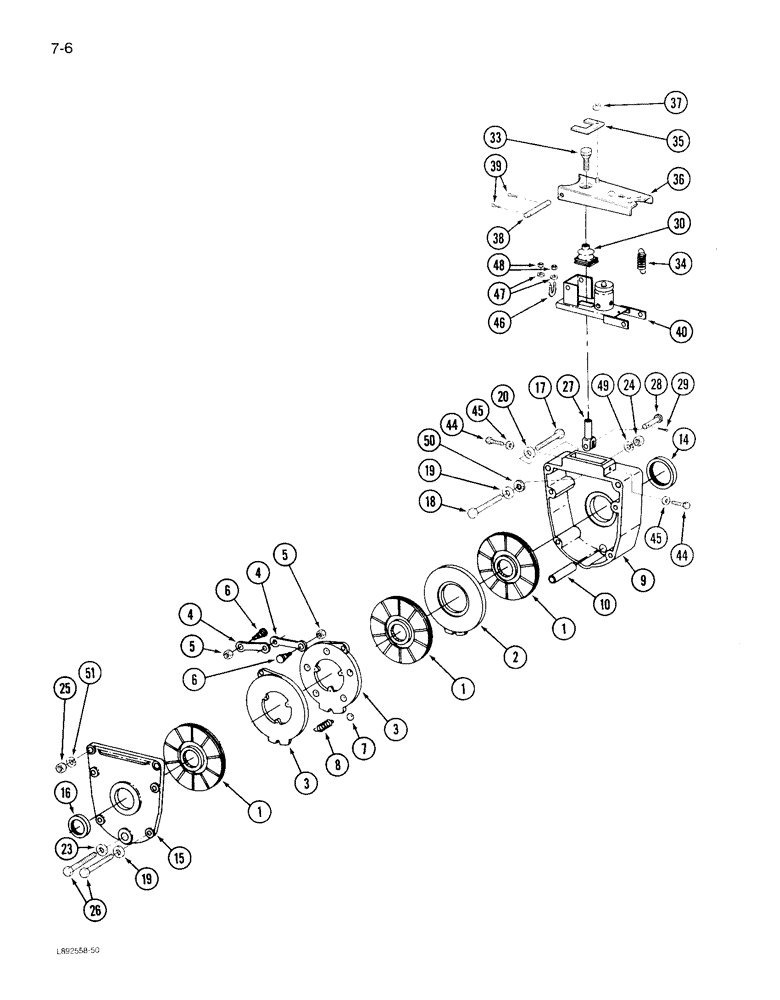

Запчасти Case IH 1822 (7-06) - MASTER BRAKES (03) - POWER TRAIN

1

1963811C1

CLUTCH DISC

DISC ASSEMBLY - middle

6шт.

2

184203C1

DISC

- intermediate

2шт.

184202C92

DISC

DIS ASSEMBLY - actuating

2шт.

3

NSS

NOT SOLD SEPARAT

DISC - actuating (Order 184203C92)

2шт.

4

1276923C2

LINK

- actuating, plain

2шт.

5

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam, 1/2 NF

2шт.

6

1276924C1

STUD

- disc

2шт.

7

17028R1

BALL,7/8" Dia

5шт.

8

359859R2

SPRING

- extension

3шт.

9

1278048C95

HOUSING

- brake, right (Includes Ref 10)

1шт.

9

1338185C3

HOUSING

- brake, left

1шт.

10

1278047C1

PIN

- brake reaction

1шт.

14

660432R91

OIL SEAL

SEAL - oil, felt

2шт.

15

1277015C91

COVER

ASSEMBLY - housing

2шт.

16

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

- dirt

2шт.

17

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

4шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

19

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch

10шт.

20

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-1/4 x 3/16 inch

4шт.

23

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

25

425-1010

NUT,5/8"-11, G5

4шт.

26

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch

10шт.

27

1321923C1

CLEVIS

YOKE ASSEMBLY - brake pull

2шт.

28

40545V

CLEVIS PIN,5/8" x 1 3/8"

PIN - clevis, 5/8 x 1-3/4 inch

2шт.

29

32-816

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

30

184321C1

COVER

BOOT - brake housing

2шт.

33

1321973C1

ROD

- brake pull

2шт.

34

312824R1

SPRING

- brake lever return

2шт.

35

184282C2

BAR

SUPPORT - brake adjustable keeper

2шт.

36

1277201C3

LEVER

- brake

2шт.

37

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch

2шт.

38

1308992C1

PIN,9.53mm OD x 102mm L

- wheel brake lever

2шт.

39

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

40

REF

INSTRUCTION

SUPPORT ASSEMBLY - wheel brake cylinder (See Page 7-9)

2шт.

44

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

45

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

4шт.

46

1327797C1

CLAMP

U-BOLT - support

2шт.

47

95-51028

WASHER,0.28" ID x 0.5" OD x 0.06" Thk

- flat, 9/32 x 1/2 x 1/16 inch

4шт.

48

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC

4шт.

49

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

50

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - internal tooth lock, 1/2 inch

2шт.

51

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

136969C1

FASTENER

- brake lever (Not Shown)

2шт.
