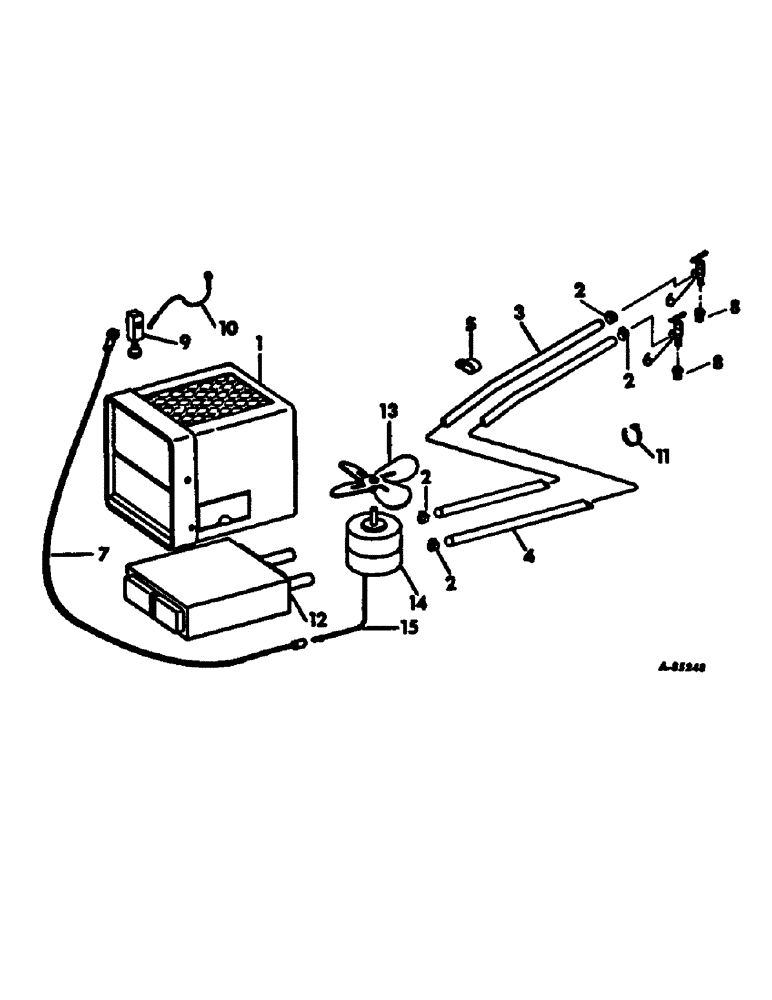

Запчасти Case IH 95 (13-14) - SUPERSTRUCTURE, OPERATORS CAB, HEATER, HOSE, FITTING, AND VALVE, SERIAL NUMBER 1011 AND BELOW (05) - SUPERSTRUCTURE

1

936197R91

HEATER ASSY

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

6шт.

2

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, heater hose

4шт.

3

HOSE, heater, For service use 147 inches of 5/8 ID hose from 50 ft. roll marked 117724C1

1шт.

4

HOSE, heater, For service use 140 inches of 5/8 ID hose from 50 ft. roll marked 117724C1

1шт.

5

154695C1

CLAMP

hose

2шт.

6

301803R91

VALVE

ASSY, heater shut off

2шт.

7

937526R91

WIRE ASSY, Serial Range: switch-motor

1шт.

8

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing, Pipe 1/2"-14 NPTF x 3/8"-18 Fem NPTF

2шт.

9

937574R91

SWITCH

ASSY, heater

1шт.

10

631760R91

ELECTRICAL WIRE

WIRE ASSY, switch to junction block

1шт.

11

702093C1

CABLE TIE

STRAP, hose tie

2шт.

12

936491R91

CORE

ASSY, heater

1шт.

13

936490R91

FAN

ASSY, 6 in. dia

1шт.

14

936489R91

MOTOR

ASSY

1шт.

15

46894H

WIRE CONNECTOR,14 - 16 SAE

TERMINAL, male tip

1шт.
