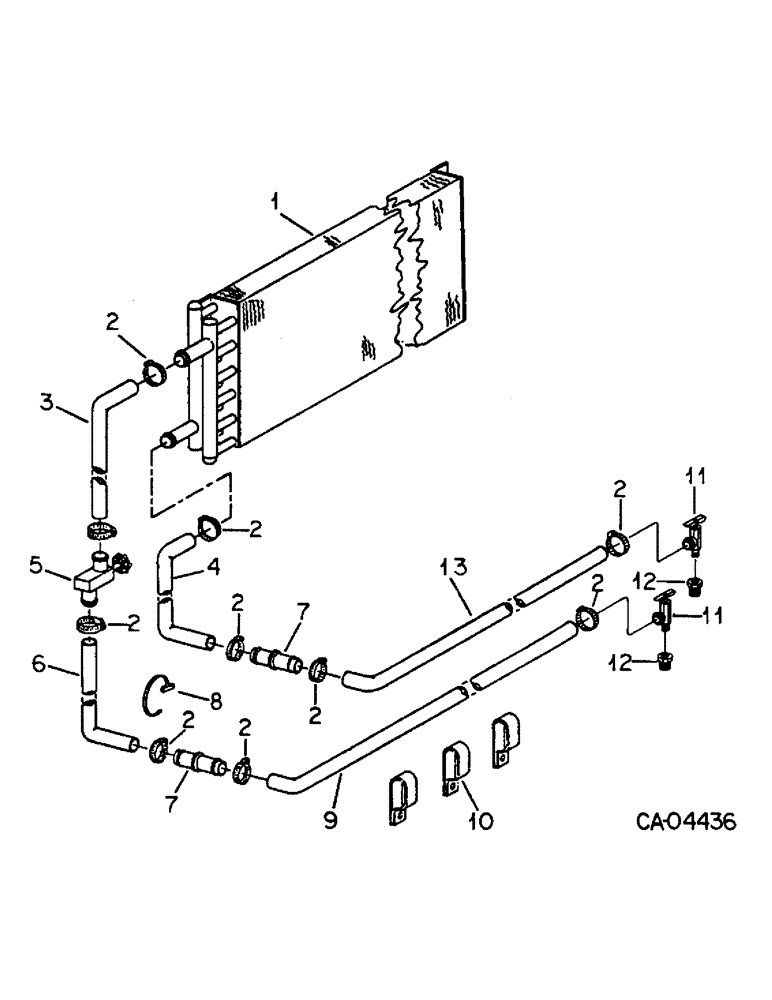

Запчасти Case IH 95 (13-13) - SUPERSTRUCTURE, OPERATORS CAB, HEATER, HOSE, FITTING AND VALVE, SERIAL NUMBER 1012 AND ABOVE (05) - SUPERSTRUCTURE

1

173914C1

CORE ASSY, heater

1шт.

2

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, heater hose

10шт.

3

HOSE, heater upper, Use 18 in. from bulk roll marked, 117724C1

1шт.

4

HOSE, heater outer, Use 92 in. from bulk roll marked, 117724C1

1шт.

5

173908C1

VALVE

heater

1шт.

6

HOSE, heater lower, Use 75 in. from bulk roll marked, 117724C1

1шт.

7

173898C1

FITTING

ADAPTER, heater hose

2шт.

8

702093C1

CABLE TIE

STRAP, hose tie

2шт.

9

HOSE, heater, Use 140 in. from bulk roll marked, 117724C1

1шт.

10

154695C1

CLAMP

hose

3шт.

11

301803R91

VALVE

ASSY, heater shut-off

2шт.

12

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing 1/2"-14 NPTF x 3/8"-18 Fem NPTF

2шт.

13

HOSE, heater, Use 147 in. of 5/8 ID from bulk roll marked, 117724C1

1шт.
