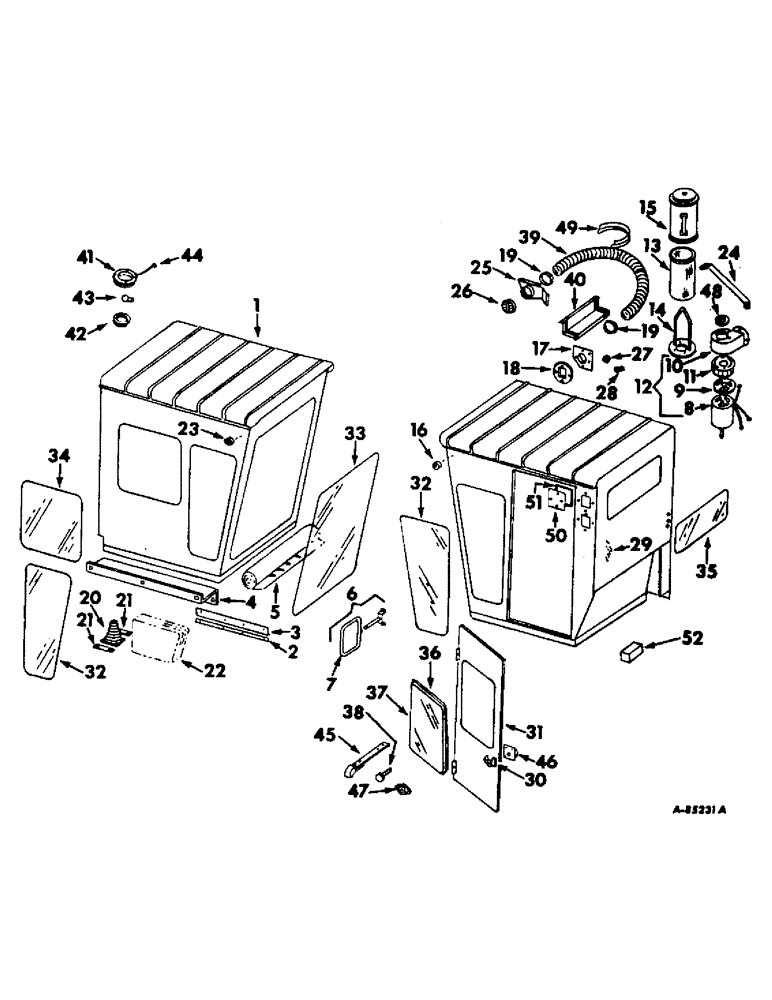

Запчасти Case IH 95 (13-09) - SUPERSTRUCTURE, OPERATORS CAB, SERIAL NUMBER 1011 AND BELOW (05) - SUPERSTRUCTURE

1

CAB ASSY, operators, 203879C91, Not for service

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

6шт.

2

175724C1

STRIP, seal reinforcement

2шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 znd slt-hex-hd tap

8шт.

3

175723C1

SEAL, lever

2шт.

4

171218C2

ANGLE, operator cab support

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

3шт.

5

212101C1

MAT, floor, Replaces 203988C1

1шт.

6

151188C91

MIRROR

ASSY, rear view, Incl ref no. 7

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 znd hex-hd cap

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex. lock

4шт.

7

151171C91

HEAD ASSY, mirror

1шт.

8

163478C91

MOTOR

electric

1шт.

9

163479C1

PLATE, motor mounting

1шт.

10

163477C91

SCROLL ASSY, pressurer

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

4шт.

11

167094C1

FAN

blower

1шт.

12

161197C91

PRESSURIZER ASSY, Includes ref nos. 8, 9, 10, 11, and 48

1шт.

13

161299C91

ELEMENT

FILTER ASSY, air intake

1шт.

14

161152C91

ADAPTER ASSY, filter

1шт.

445957

INDICATOR

1/4 x 3/8 znd slt-pan-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

86627130

WING NUT,1/4"-20

NUT, 1/4-20 znd wing

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .06 znd

1шт.

611352R1

WASHER

5/16 x 7/8 x 5/32 rubber

1шт.

15

161151C91

COVER

ASSY, filter

1шт.

16

117961

GROMMET,3/8" ID x 27/32" x .062"

rubber plain 3/8 hole

1шт.

17

161155C1

COLLAR, blower

1шт.

18

161158C1

SEAL, air pressurizer

1шт.

19

309693R91

HOSE CLAMP,#60, 3.31/4.25 Type F Worm

CLAMP, hose

2шт.

20

174114C1

BOOT

gear shift

1шт.

21

203880C1

STRIP, lever boot

2шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 znd slt-hex-hd tap

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22

PANEL ASSY, operators instrument, Refer to instrument panel, cover and control sheet for unit listing

1шт.

23

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

rubber

1шт.

24

175039C1

BRACE, blower support

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex. lock

2шт.

25

161153C91

BRACKET ASSY, air outlet

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

NUT, 5/16-18 x 3/4 znd hex-hd cap

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

611352R1

WASHER

5/16 x 7/8 x 5/32 rubber

2шт.

26

161156C91

DEFLECTOR, air vent

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

27

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

rubber

1шт.

28

362127R1

CLIP

hook rubber coated

3шт.

29

163500C1

CLEAT, line

1шт.

120757

SCREW, no. 10 x 3/4 znd slt-f-mach

2шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

2шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga

2шт.

30

393237R91

HANDLE

ASSY, door

1шт.

31

937629R92

DOOR ASSY, also order receptacle, 583431R91 if not so equipped

1шт.

32

150971C1

GLASS, front side window

2шт.

33

150972C1

GLASS

windshield

1шт.

34

150973C1

GLASS, side sliding window

1шт.

35

166504C1

GLASS, rear window

1шт.

36

937646R1

SEAL, glass moulding 78-3/4 in.

1шт.

37

150967C1

GLASS, door window

1шт.

38

168915C1

BOLT, door bumper

1шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

1шт.

39

174918C1

HOSE, air intake 58 in. long

1шт.

40

161163C11

SHIELD ASSY, air intake

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex, lock

4шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga znd

2шт.

611352R1

WASHER

5/16 x 7/8 x 5/32 rubber

2шт.

41

163681C91

LIGHT ASSY, cab dome, Includes ref nos. 42, 43, and 44

1шт.

42

336853C1

LENS, dome light

1шт.

153022

SCREW, 6/32 x 5/8 C-Z fillister-hd mach

2шт.

43

33686

BULB

LAMP, dome light 1141-12V

1шт.

44

CABLE, dome light 9 in., Order light assy, 163681C91

1шт.

45

173047C1

CATCH, door

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 znd slt-truss-hd mach

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex. lock

2шт.

46

937636R91

LATCH

ASSY, door

1шт.

47

583431R91

CONNECTION,ELECTRIC

RECEPTACLE, door holder

1шт.

48

158499R1

GASKET

blower inlet

1шт.

49

161157C1

SEAL

air intake filter 32.5 in.

1шт.

50

174919C1

COVER, blower opening

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex, lock

4шт.

51

174920C1

GASKET, blower opening

1шт.

52

212128C1

PAD, platform

1шт.

156188C91

KIT, window pull

1шт.
