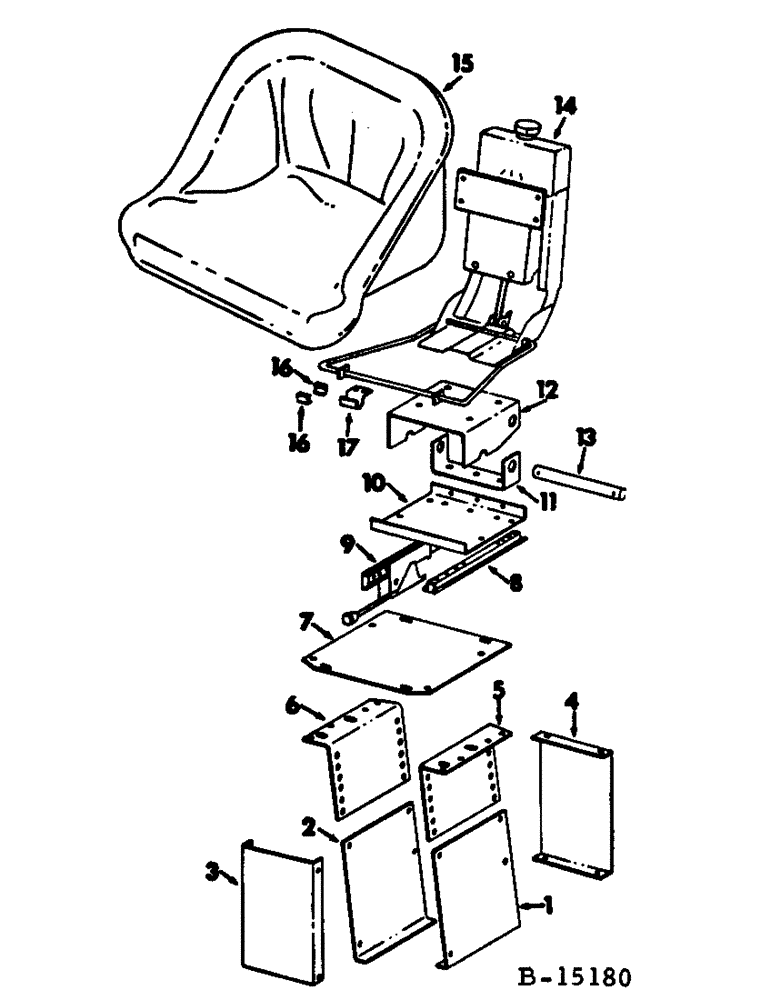

Запчасти Case IH 95 (13-06) - SUPERSTRUCTURE, OPERATORS SEAT AND SUPPORTS, SERIAL NUMBER 861 AND BELOW (05) - SUPERSTRUCTURE

1

203966C1

SIDE, seat support LH, Serial no. 801 and below

1шт.

1

217466C1

SIDE, seat support LH, Serial no. 802 and above

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

2

203967C1

SIDE, seat support RH, Serial no. 801 and below

1шт.

2

217466C1

SIDE, seat support RH, Serial no. 802 and above

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

3

170626C2

BASE, operators seat front

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

2шт.

4

173114C1

SUPPORT, operator seat base back

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

5

939266R1

BRACKET, seat adjustment LH

1шт.

6

939267R1

BRACKET, seat adjustment RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

7

203946C1

SHEET, lower seat

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

4шт.

8

825198C1

RAIL

SLIDE, adjusting LH

1шт.

9

825199C91

SLIDE

ASSY, seat adjusting RH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

4шт.

10

203886C1

CHANNEL, seat rail top

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

4шт.

11

202147C1

CHANNEL, seat stationary

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd mach

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

3шт.

12

202146C1

CHANNEL, seat pivot

1шт.

13

665904R1

SHAFT, operator seat pivot

1шт.

615191R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

14

825201C91

SUSPENSION ASSY, seat, See operators seat suspension

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

4шт.

15

825202C91

SEAT ASSY, operators

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

SCREW, 5/16-18 x 1/2 znd hex lock

4шт.

16

825203C1

BUSHING

BEARING, seat retainer half

4шт.

17

825204C1

RETAINER

CLIP, brg retainer

2шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

SCREW, 5/16-18 x 1/2 znd hex lock

4шт.
