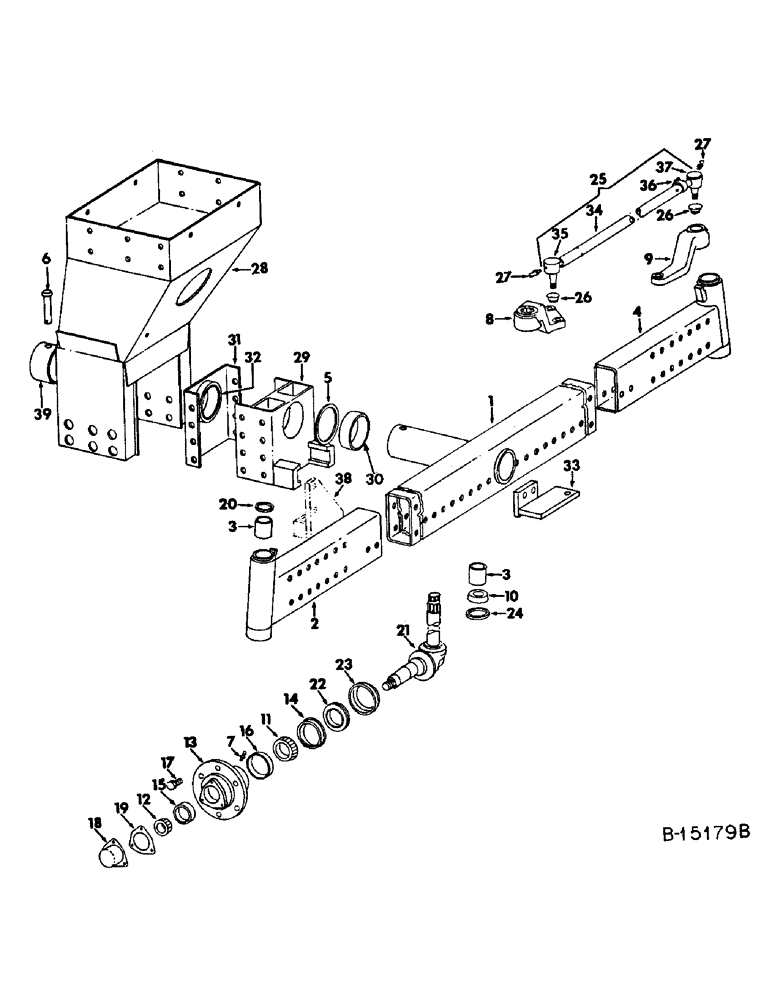

Запчасти Case IH 95 (14-01) - SUSPENSION, GUIDE WHEEL AXLE AND BOLSTER Suspension

1

182799C1

AXLE

ASSY, guide wheel, Replaces 195093C1

1шт.

2

177763C91

EXTENSION ASSY.

EXTENSION ASSY, guide axle LH, Includes ref no. 3

1шт.

3

376099R1

BUSHING

4шт.

4

177764C91

EXTENSION ASSY.

EXTENSION ASSY, guide axle RH, Includes ref no. 3

1шт.

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

SCREW, 3/4-10 x 4-3/4 znd hex-hd cap , Course threads

6шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

SCREW, 3/4-10 x 5-1/2 znd hex-hd cap

2шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

5

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

guide axle pivot, Use as required

2шт.

6

177762C1

PIN

guide wheel axle pivot, 1978 and below

1шт.

6

28147R1

HEADED PIN,3/4" x 5 1/2"

PIN, 3/4 x 5-1/2 std hd, 1979 and above

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, .194 str-drive type lub

2шт.

8

177776C3

ARM

steering knuckle, left

1шт.

9

177777C1

ARM

steering knuckle, right

1шт.

427547

JAM NUT,Jam, 1 3/8"-12, G5

1-3/32-12 znd hex. jam

2шт.

22827R1

WASHER

1-13/32 x 2-3/4 x 13 ga znd

2шт.

10

405831R91

BEARING

ASSY

2шт.

11

G15215

ROLLER BEARING

BEARING ASSY, cone inner

2шт.

12

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, cone outer

2шт.

13

391823R11

HUB

ASSY, wheel

2шт.

13

391823R11GV

HUB

Value, Hub Assy.

2шт.

14

48703D

RETAINER

wheel hub oil seal

2шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Outer front wheel hub

2шт.

16

619387R1

BEARING CUP

BEARING, inner front wheel hub cup

2шт.

17

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel hub

12шт.

18

369859R1

CAP

GASKET, front wheel hub

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

19

369860R1

GASKET,0.79mm Thk

front wheel hub

2шт.

20

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, Serial no. 801 & below

2шт.

21

71785C91

KNUCKLE JOINT

KNUCKLE ASSY, steering, Replaces 401768R92

2шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 znd slt-hex

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

.891 x 1.888 x .157

2шт.

22

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

wheel hub oil

2шт.

23

48701D

SHIELD

wheel hub dust

2шт.

24

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Felt

2шт.

25

179123C91

ROD

ASSY, tie, Includes ref nos 34 thru 37

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-16 slt-hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga znd

2шт.

26

382562R1

SEAL

tie rod end dust

2шт.

27

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

28

203394C1

BOLSTER ASSY, guide axle

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

16шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

29

177749C93

SUPPORT

ASSY, guide axle rear, Includes ref no. 30

1шт.

30

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

rear axle pin

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

280954

NUT,3/4"-10, G5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

31

177781C92

SUPPORT ASSY.

SUPPORT ASSY, guide wheel axle pivot, Includes ref no. 32, 1978 and below

1шт.

31

182792C92

SUPPORT ASSY.

SUPPORT ASSY, axle pivot, Includes two bushings, 182794C1, 1979 and above

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

32

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

1978 and below

1шт.

32

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING, 1979 and above

2шт.

33

177769C2

ANCHOR

ASSY, cylinder

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

34

170226C1

TUBE, tie rod

1шт.

35

179227C1

END

ASSY, tie rod LH

1шт.

36

225265R1

CLAMP

tie rod RH

1шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

37

179228C1

END ASSY.

END ASSY, tie rod end RH

1шт.

25776R1

BOLT

BOLT, 3/8-NF x 2-1/2 phc type 8

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

38

BRACKET ASSY, cyl anchor, Refer to basket cotton distributor att unit

1шт.

39

220974C2

BUSHING, axle spacer

1шт.
