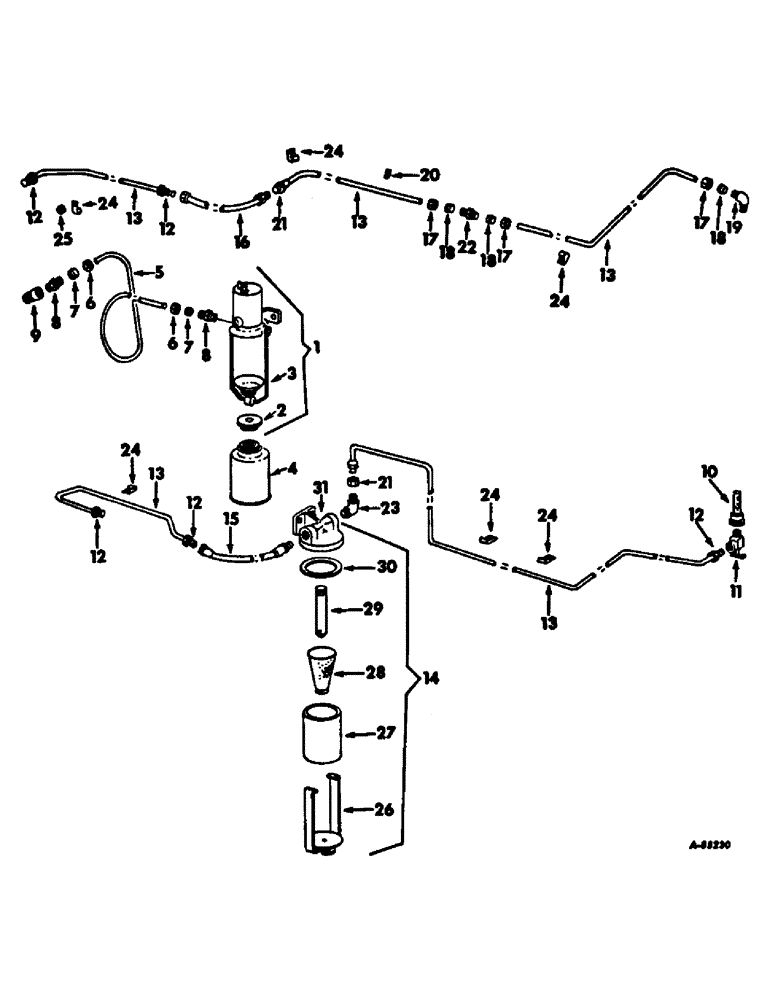

Запчасти Case IH 95 (12-05) - POWER, FUEL LINES Power

1

533231R92

SOLENOID

ASSY, ether injection, Replaces 393719R92

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

2шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga znd

4шт.

2

395686R1

GASKET

injector

1шт.

3

121851C1

RETAINER

BAIL ASSY, injector

1шт.

4

385064R91

FLUID

ether start, 12 oz. can

1шт.

5

203981C1

TUBE, starting fluid

1шт.

6

121220

TUBE NUT

NUT, 5/16-24 ball sleeve tube

2шт.

7

121322

SLEEVE,Ball Type, 1/8" tube

1/8 ball

2шт.

8

140284

PIPE FITTING

CONNECTOR, 1/8-27 ball sleeve tube

2шт.

9

269635R91

NOZZLE CAP

NOZZLE ASSY, starting fluid

1шт.

10

666129R91

STRAINER ASSY.

STRAINER ASSY, fuel tank

1шт.

11

152572C91

VALVE

ASSY, fuel shutoff

1шт.

12

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

5шт.

13

LINE ASSY, fuel, Serial Range: tank-trap

1шт.

13

LINE ASSY, fuel, Serial Range: filter-hose

1шт.

13

LINE ASSY, fuel, return, Serial Range: engine-hose

1шт.

13

LINE ASSY, fuel, return, Serial Range: hose-connector

1шт.

13

LINE ASSY, fuel, return connector to tank, Use 5/16 x 50 ft. roll 995062R1, part no. represents 1 ft.

1шт.

14

672821R91

FILTER

ASSY, fuel

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex lock

2шт.

15

220887C1

HOSE ASSY, filter to line, diesel, Replaces 255340C91

1шт.

16

220888C1

HOSE ASSY, fuel return, Replaces 167084R91

1шт.

17

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT, 5/16 ball sleeve tube

3шт.

18

114631

SLEEVE,Ball Type, 5/16" Tube

5/16 ball

3шт.

19

114927

ELBOW, 1/4-18 90 deg ball sleeve tube, in tank

1шт.

20

117959

GROMMET,5/16" ID x .719" x .062"

rubber

1шт.

21

140381

ANGLE BAR

1/2-20 flared tube

2шт.

22

115058

UNION, 5/16 ball sleeve tube

1шт.

23

222-935

ELBOW

1/4-18 90 deg flared tube, in filter

1шт.

24

299401C1

CLAMP,5/16", Insul, 1/4" Bolt

5/16 phc closed

6шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 znd hex-hd mach

3шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 znd hex-hd mach

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex. lock

4шт.

25

Y14154

SPACER, .405 x .269 x .62 std pipe

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

370785R91

CLAMP

BALE ASSY, fuel filter

1шт.

27

370783R1

BOWL

filter

1шт.

28

370784R91

FILTER SCREEN

SCREEN ASSY, fuel filter

1шт.

29

54762D

TUBE

center

1шт.

30

370520R1

GASKET

body

1шт.

31

NOT SERVICED SEPARATELY, Order 672821R91

1шт.
