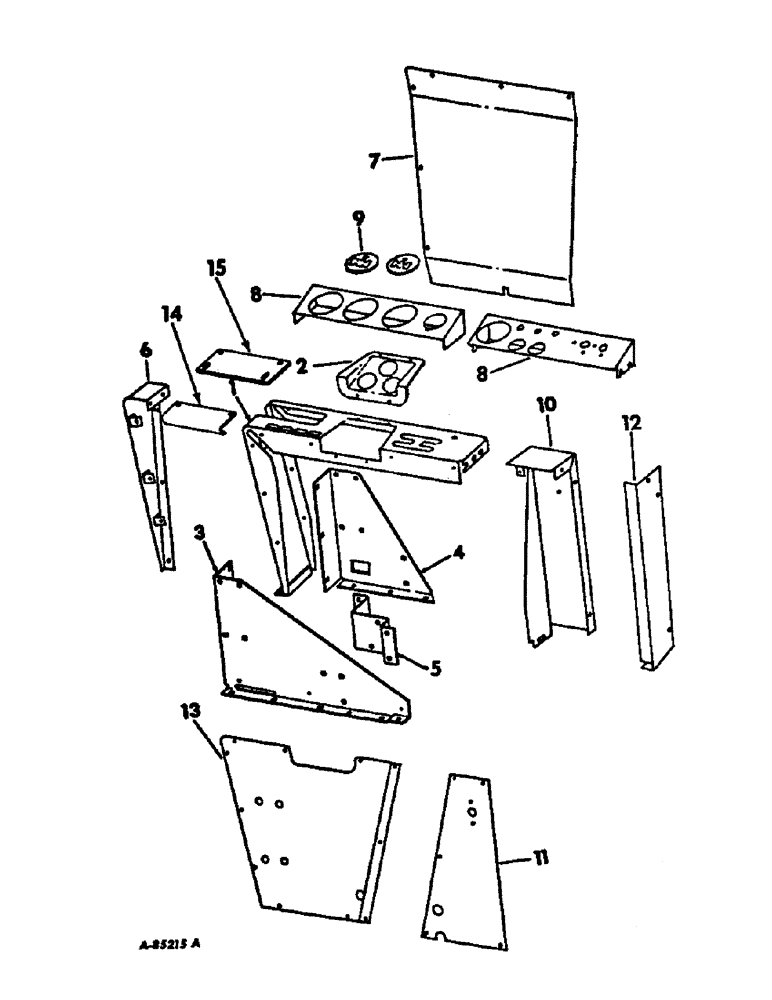

Запчасти Case IH 95 (11-01) - INSTRUMENTS, INSTRUMENT PANEL, COVER AND CONTROL PANEL SHEETS Instruments

1

203539C1

PANEL ASSY, control

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex-lock

1шт.

2

171377C2

SUPPORT, instruments

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 znd slt-pan-hd tap

4шт.

3

938850R3

SECTION, control left

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

4шт.

4

938851R3

SUPPORT, operators control housing R

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

6шт.

619856R1

WASHER

10/32 x 1 x 16 ga znd

1шт.

5

203564C1

BRACKET, lever center support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

4шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 znd slt-pan-hd tap

7шт.

6

171381C1

COVER ASSY, instrument panel frt

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex. lock

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 znd slt-pan-hd tap

3шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 C-Z hex lock

1шт.

7

203544C1

SHEET, control panel right

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 znd hex-hd tap

6шт.

8

203853C1

COVER, instrument panel, Serial no. 1011 and below

1шт.

8

217373C1

COVER, instrument panel, Serial no. 1012 and above

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 znd slt-truss-hd mach

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex lock

3шт.

9

167008C1

PLUG, instrument panel

2шт.

10

171388C2

COVER ASSY, cyl speed control

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 C-Z hex-hd lock

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex. lock

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga znd

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 znd slt-pan-hd mach

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

11

171394C1

SHEET, control panel left rear, Serial no. 801 and below

1шт.

11

212178C1

SHEET, control panel left rear, plate, without holes, Serial no. 802 and above

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 znd pan-hd tap

2шт.

12

203544C1

SHEET, console, rear

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 znd sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

3шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex lock

1шт.

13

171395C1

SUPPORT, control panel left front, Serial no. 801 and below

1шт.

13

212177C1

SUPPORT, control panel left front, without holes, Serial no. 802 and above

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 znd pan-hd-slt tap

9шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4-20 x 1/2 znd pan-hd-slt tap

1шт.

14

212102C1

SUPPORT, throttle seal

1шт.

15

212103C1

STRIP, throttle lever

1шт.
