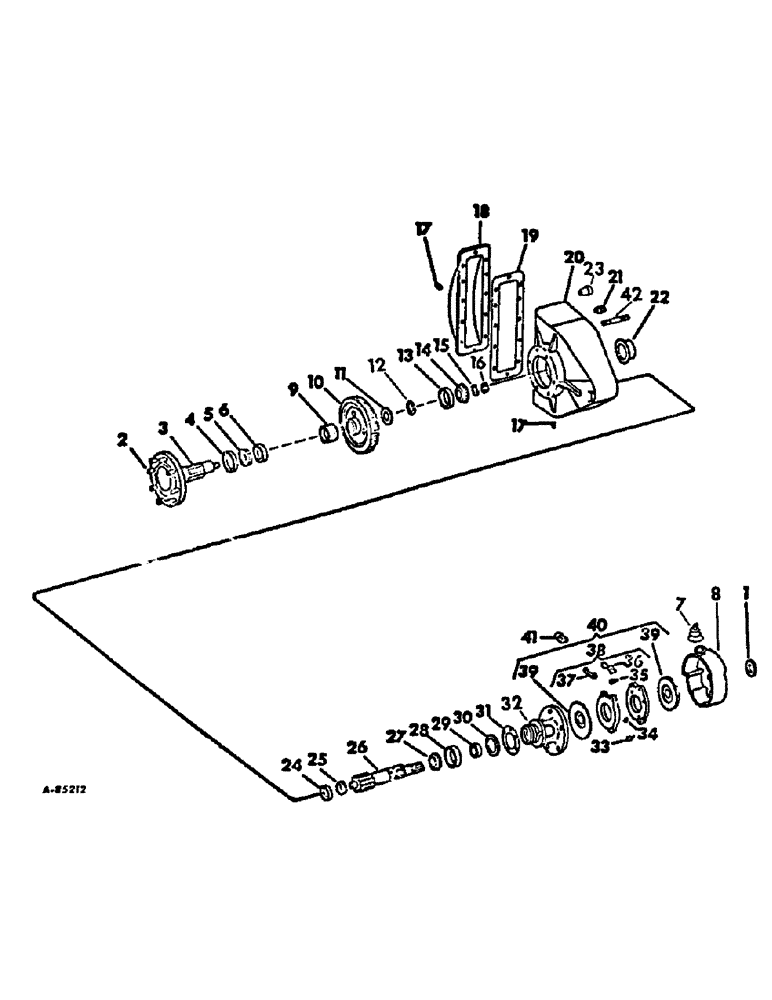

Запчасти Case IH 95 (07-09) - DRIVE TRAIN, FINAL DRIVE AND WHEEL BRAKES Drive Train

1

380637R91

SEAL,44.45mm ID x 66.72mm OD x 5.08mm Thk

brake housing dirt

2шт.

2

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

wheel

16шт.

3

533718R1

SHAFT

final drive

2шт.

4

404489R91

OIL SEAL,83.57mm ID x 127.1mm OD x 11.89mm Thk

OIL SEAL, final drive outer bearing cage

2шт.

5

ST2157

TAPERED BEARING,3.035" ID x 4.8126" OD x 1.3"

BEARING ASSY, final drive shaft outer cone

2шт.

6

ST985

CUP

BEARING, final drive shaft outer cup

2шт.

7

381699R1

BOOT

wheel brake

2шт.

8

574914R2

HOUSING

wheel brake

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex

10шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

8шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, 7/16-14 x 4-1/4 hex-hd cap

2шт.

NLS

NO LONGER SERVICED

.469 x .922 x .051 znd

4шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

10шт.

9

57360C1

SPACER

outer brg

2шт.

10

57586C91

GEAR ASSY, final drive

2шт.

373109R1

RIVET, final drive gear

12шт.

11

533722R1

SPACER

inner brg

2шт.

12

316222R1

RING

retainer snap

2шт.

13

BEARING, Not serviced separately, Order bearing assy, 533725R91

1шт.

14

NLS

NO LONGER SERVICED

ASSY, inner

2шт.

15

533730R1

WASHER

final drive shaft

2шт.

16

528935R1

NUT

final drive shaft

2шт.

103391

COTTER PIN,1/8" x 2 1/2"

Pin, Split (Cotter), 1/8" x 2 1/2"

2шт.

17

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 auto sq-hd pipe

4шт.

18

587078R91

PAN ASSY.

PAN ASSY, final drive housing

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

24шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

19

587655R1

GASKET

final drive housing pan

2шт.

20

533712R1

HOUSING

final drive LH

1шт.

20

57910C1

HOUSING, final drive RH

1шт.

271715

BOLT,Hex, 5/8" - 11 x 1", Gr 5

SCREW, 5/8-11 x 1 znd hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/4 znd hex-hd cap

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

178627

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER, 5/8 znd ext-tooth lock

4шт.

21

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

final drive housing oil

2шт.

22

533716R1

CAP

final dr shaft inner brg

2шт.

23

54700R1

DOWEL

final drive

4шт.

24

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Final drive pinion shaft outer

2шт.

25

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, final drive pinion shaft outer cone

2шт.

26

376461R2

SHAFT

final drive pinion

2шт.

27

56934D

ROLLER BEARING,2.1663" ID x 3.8125" OD x 0.8268"

final drive pinion shaft inner cone

2шт.

28

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING, final drive pinion shaft inner cup

2шт.

29

380186R92

OIL SEAL

OIL SEAL, brake adapter

2шт.

30

317923R1

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

brake adapter

2шт.

31

376467R1

SHIM

brake adapter, .007

1шт.

31

405627R1

SHIM

brake adapter, .003

1шт.

32

57584C91

ADAPTER

ASSY, brake LH

1шт.

32

57585C91

ADAPTER

ASSY, brake RH

1шт.

141279

DOWEL,1/2" x 3/4"

PIN, 1/2 x 3/4 dowel

2шт.

376814R1

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5, W/ Nylon Pellet

SCREW, 7/16-14 x 1-1/8 hex-hd

10шт.

25545R1

WASHER

.469 x .922 x .134 hard

10шт.

33

619731C1

SPRING

6шт.

34

16028R1

BALL

7/8 steel chrome

10шт.

35

354642R1

STUD

actuating disc

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

36

357114R91

LINK

actuating

2шт.

37

357113R1

LINK

actuating plain

2шт.

38

366182R92

BRAKE DISC

DISC ASSY, actuating

2шт.

39

121961C91

CLUTCH DISC

DISC ASSY, middle, Replaces 321162R91

1шт.

40

BRAKE ASSY, wheel, Not serviced as an assembly

1шт.

41

357043R1

CLEVIS,3/8" - 24

brake operating rod

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, 7/16 x 1.190 pln clevis

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

42

441553R1

STUD

tap end 5/8-11 x 2.75

12шт.
