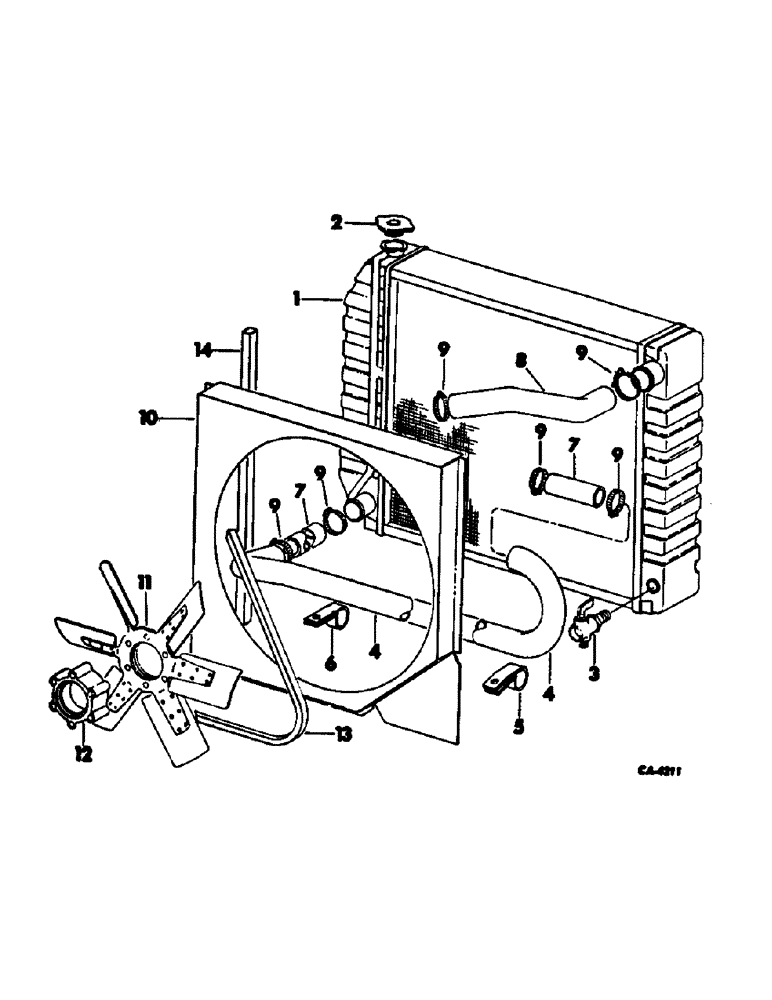

Запчасти Case IH 95 (06-2) - COOLING, RADIATOR, FAN AND CONNECTIONS Cooling

1

59954C1

RADIATOR

ASSY

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 C-Z whiz lock

4шт.

2

530874R1

CAP

radiator pressure

1шт.

3

86982771

VALVE

COCK, 1/4 drain type E

1шт.

4

59955C1

PIPE, radiator outlet

1шт.

5

61568C1

CLAMP, radiator pipe left

1шт.

189299

BOLT,Hex, 5/16" - 18 x 4 1/2", Gr 5

5/16-18 x 4-1/2 znd hex-hd cap

1шт.

6

59956C1

CLAMP, radiator pipe

1шт.

7

131025C1

HOSE

connector

2шт.

8

59957C1

HOSE

radiator inlet

1шт.

9

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, radiator hose

6шт.

10

59959C1

SHROUD ASSY, fan w/sealing strips

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 3/4 C-Z whiz lock

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

11

59962C1

HALF BLADE

BLADE ASSY, fan

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

59963C1

SPACER

fan, .900

1шт.

12

396542R1

HUB

SPACER, fan, 1.100

1шт.

12

59964C1

SPACER, fan, 2.800 Replaces the use of 59963C1 and 396542R1 spacers

1шт.

13

59969C91

SET OF BELTS,0.50" W x 63.50" L

V-Belt, Matched fan 0.50" W x 63.50" L

1шт.

14

STRIP, sealing, Order two foam gaskets, 73220C1

1шт.
