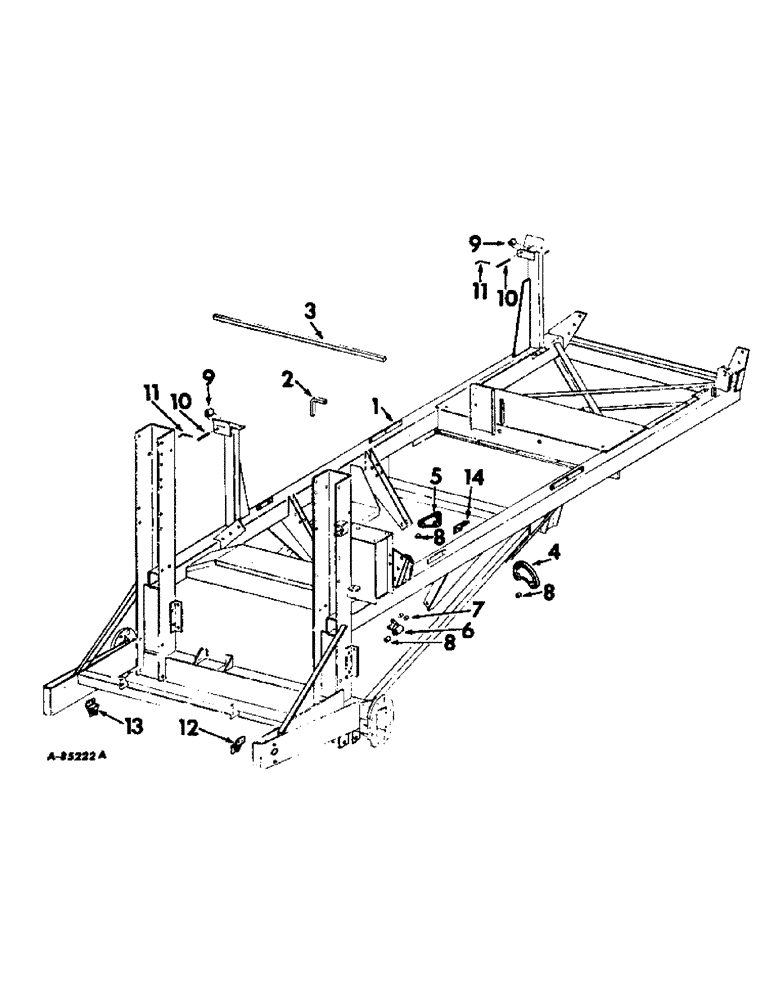

Запчасти Case IH 95 (09-01) - FRAME, MAIN FRAME AND SUPPORTS (12) - FRAME

1

203264C3

FRAME ASSY, main

1шт.

2

400143R1

GASKET

STRIP, seal, Service for 204025C1

1шт.

3

155771C1

SEAL

STRIP, seal, Service for 204023C1

2шт.

4

672871R1

SUPPORT

engine rear LH

1шт.

5

672872R1

SUPPORT

engine rear RH

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

672869R1

BRACKET, engine support frt

2шт.

7

N62744

BUSHING, engine frt support bracket

4шт.

179890

LATCH

SCREW, 1/2-13 x 2-1/4 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

8

672870R1

BUSHING

engine support rubber

4шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 hex-hd cap

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

672744R2

ROLLER

basket pivot

2шт.

10

672745R1

SHAFT

PIN, roller

2шт.

11

11453P

PIN

basket pivot roller lock

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

12

203836C1

ANCHOR ASSY, hyd cylinder LH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

2шт.

13

203837C1

ANCHOR ASSY, hyd cyl RH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

2шт.

14

203932C1

ANGLE, basket line supply

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

4шт.
