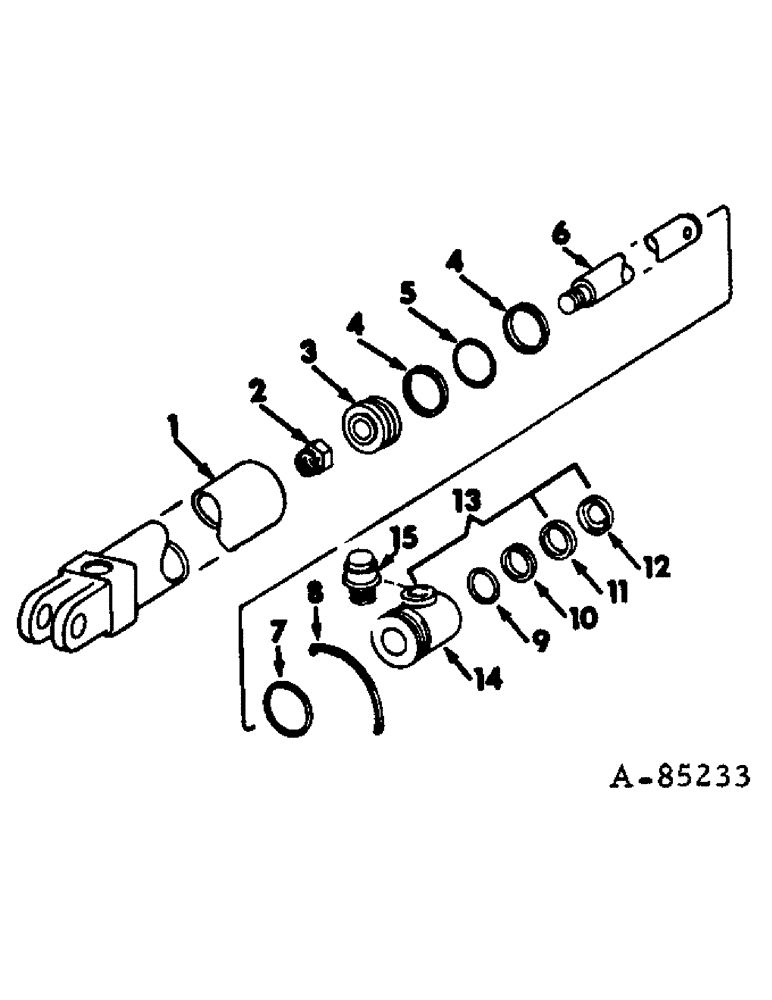

Запчасти Case IH 95 (10-19) - HYDRAULICS, UNIT LIFT HYDRAULIC CYLINDER, 2 X 9-3/4 INCH DOUBLE ACTING (07) - HYDRAULICS

59897C92

CYLINDER ASSY, unit lift 2 x 9-3/4 in., Consists of ref nos 1 thru 14

1шт.

1

59858C92

BODY ASSY, hyd cyl

1шт.

2

385020R1

NUT

3/4-16 hex. lock

1шт.

3

381849R1

HEAD

piston

1шт.

4

381850R1

WASHER

piston back-up

2шт.

5

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1-5/8 x 2 x 3/16 piston head

1шт.

6

59876C1

ROD, piston

1шт.

7

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 x 1/8

1шт.

8

461180R1

RETAINER

RING, retaining

1шт.

9

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING, piston rod

1шт.

10

383669R1

BACK-UP RING

piston rod o-ring

1шт.

11

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

12

354049R1

RETAINER

piston rod dust seal

1шт.

13

381803R11

HEAD

ASSY, rod end

1шт.

14

HEAD, rod end, Not serviced separately order 381803R11

1шт.

15

653419R1

CAP

BREATHER

2шт.

386685R91

KIT

KIT, hydraulic cylinder service, Consists of ref nos. 4, 5, 7, 9, 10, 11 and 12

1шт.
