(10-14[1]) - HYDRAULICS, UNIT CONTROL VALVE

Запчасти Case IH 95 (10-14[1]) - HYDRAULICS, UNIT CONTROL VALVE (07) - HYDRAULICS

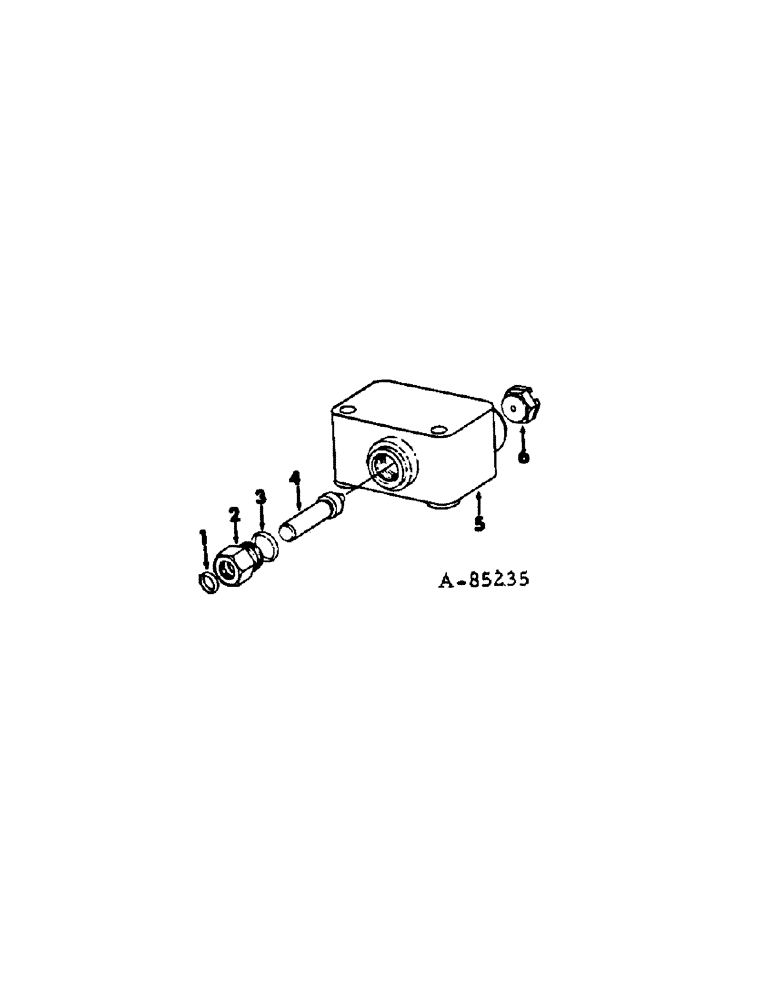

Схема запчастей Case IH 95 - (10-14[1]) - HYDRAULICS, UNIT CONTROL VALVE (07) - HYDRAULICS
2
5
4
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

202067C91

VALVE

ASSY, unit control, Consists of the following service parts

1шт.

1

310926R1

O-RING

3/32 x 3/8 x 9/16

1шт.

2

937202R1

PLUG

metering pin

1шт.

3

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3/32 x 1/2 x 11/16

1шт.

4

202488C1

PIN

metering

1шт.

5

BODY, Not serviced separately, Order 202067C91

1шт.

6

937201R1

PLUG

PLATE, orifice

1шт.
