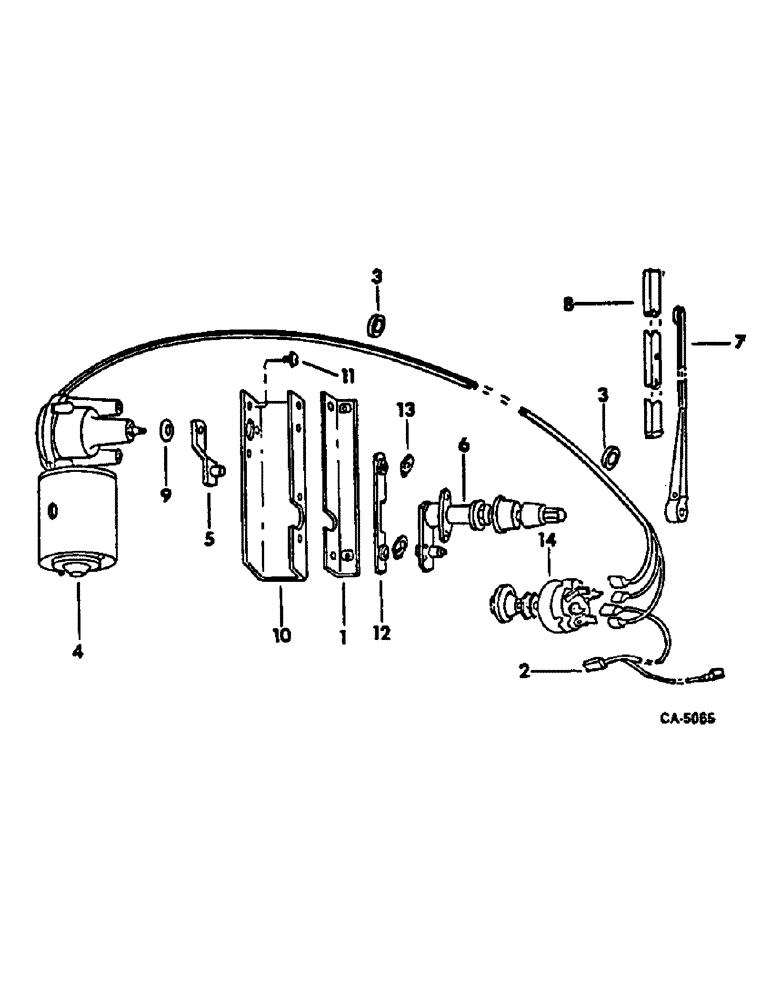

Запчасти Case IH 95 (13-15) - SUPERSTRUCTURE, WINDSHIELD WIPER ATTACHMENT, SERIAL NUMBER 1012 AND ABOVE, FOR OPERATORS CAB (05) - SUPERSTRUCTURE

187617C91

WINDSHIELD WIPER ATT

1шт.

1

NOT USED IN THIS APPLICATION

1шт.

2

187586C1

HARNESS

CABLE ASSY, binding post to wiper switch

1шт.

3

117959

GROMMET,5/16" ID x .719" x .062"

5/16 plain diagonal cut

2шт.

4

196795C1

WIPER MOTOR

MOTOR ASSY, wiper, 12 volt

1шт.

5

886257C1

ARM

drive

1шт.

6

196796C1

SHAFT ASSY.

SHAFT, wiper pivot

1шт.

7

890282C1

ARM

20 in.

1шт.

8

204642C1

BLADE

20 in.

1шт.

9

219699R1

WASHER

1шт.

10

923480C1

BRACKET

motor

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

11

923479C1

BOLT

SCREW

1шт.

12

260514C91

LINK

1шт.

13

937547C1

CLIP

1шт.

14

935793C91

SWITCH

2 speed

1шт.
