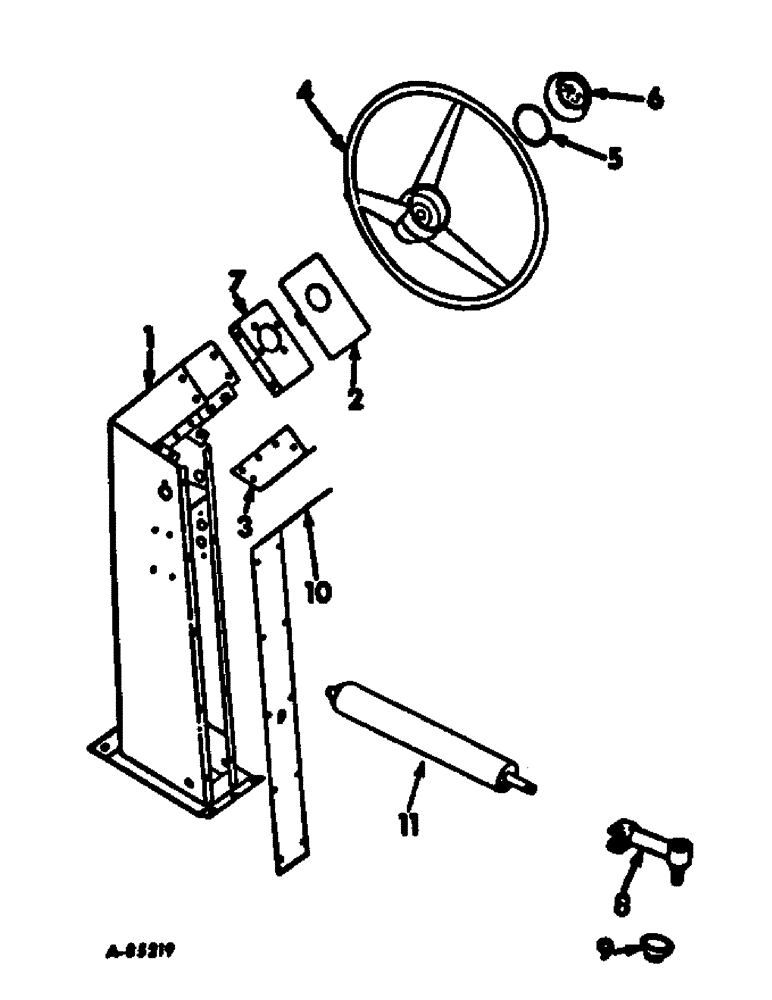

Запчасти Case IH 95 (05-1) - STEERING, STEERING COLUMN, WHEEL AND STEERING CYLINDER SOCKET (04) - STEERING

1

938865R91

COLUMN ASSY, steering

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex, lock

6шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

SCREW, 5/16-18 x 1/2 znd hex-hd lock

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

4шт.

2

633074R91

COVER ASSY, steering column top

1шт.

144811

SCREW,Sl Rnd Hd, #10 - 12 x 1/2"

no. 10 x 1/2 znd slt-pan-hd tap

3шт.

3

633492R1

SIDE, steering column removable LH

1шт.

3

633493R1

SIDE, steering column removable RH

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 hex-hd lock

8шт.

4

385156R1

WHEEL (STEERING)

WHEEL, steering

1шт.

4

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

5

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13-16 x 3 x 3-32

1шт.

6

68837C1

CAP

monogrammed steering wheel

1шт.

7

633073R11

BRACKET ASSY, steering hand pump

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16 x 5/8 znd sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 x 5/8 znd hex lock

6шт.

8

157432C91

SOCKET

ASSY, steering cylinder

2шт.

9

382562R1

SEAL

2шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-18 znd slt-hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

10

198753C1

PANEL, steering post

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 znd slt-pan-hd tap

12шт.

564791R1

SPRING NUT

1/4 spring

12шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

SCREW, 5/16-18 x 1/2 znd hex-hd

2шт.

11

CYLINDER ASSY, steering, See steering cylinder

1шт.
