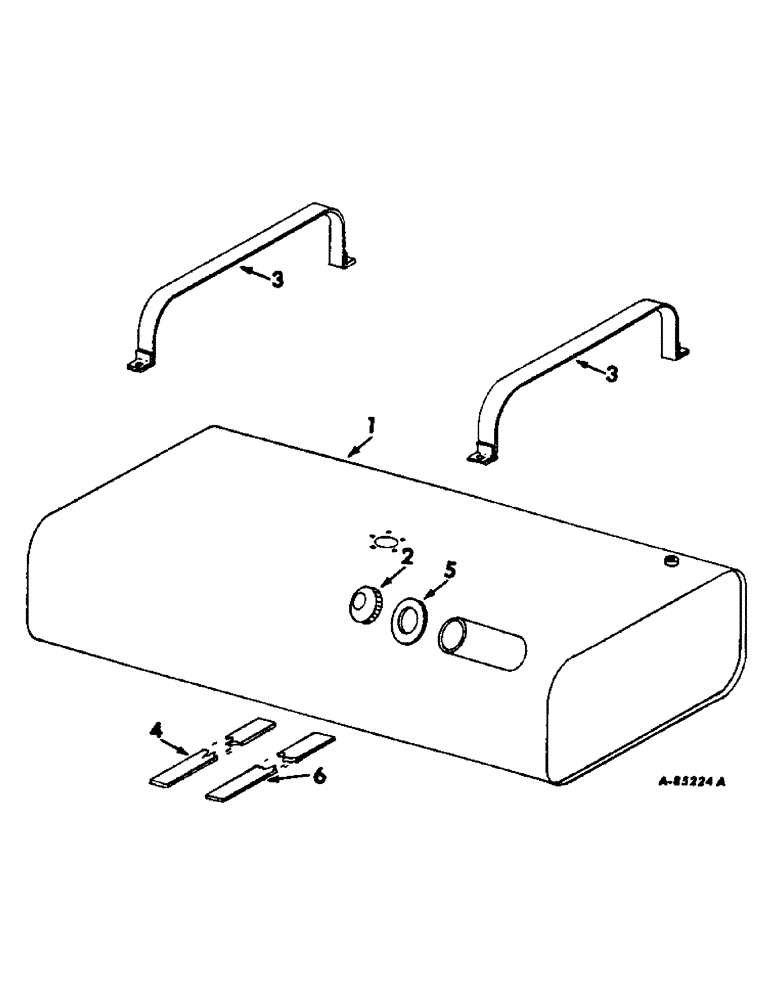

Запчасти Case IH 95 (12-04) - POWER, FUEL TANK AND STRAPS Power

1

203848C91

TANK W/CAP, fuel, Includes ref no 2

1шт.

2

126368R91

CAP

fuel tank

1шт.

3

203849C1

STRAP, fuel tank support

2шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 znd sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

4шт.

4

LINING, fuel tank support, Order webbing 1-1/2 x 50 ft. use 20 in. length 990541R1

2шт.

5

341689C1

GASKET

GROMMET, filler seal

1шт.

6

155771C1

SEAL

STRIP, seal, short, Service for 204022C1

2шт.
