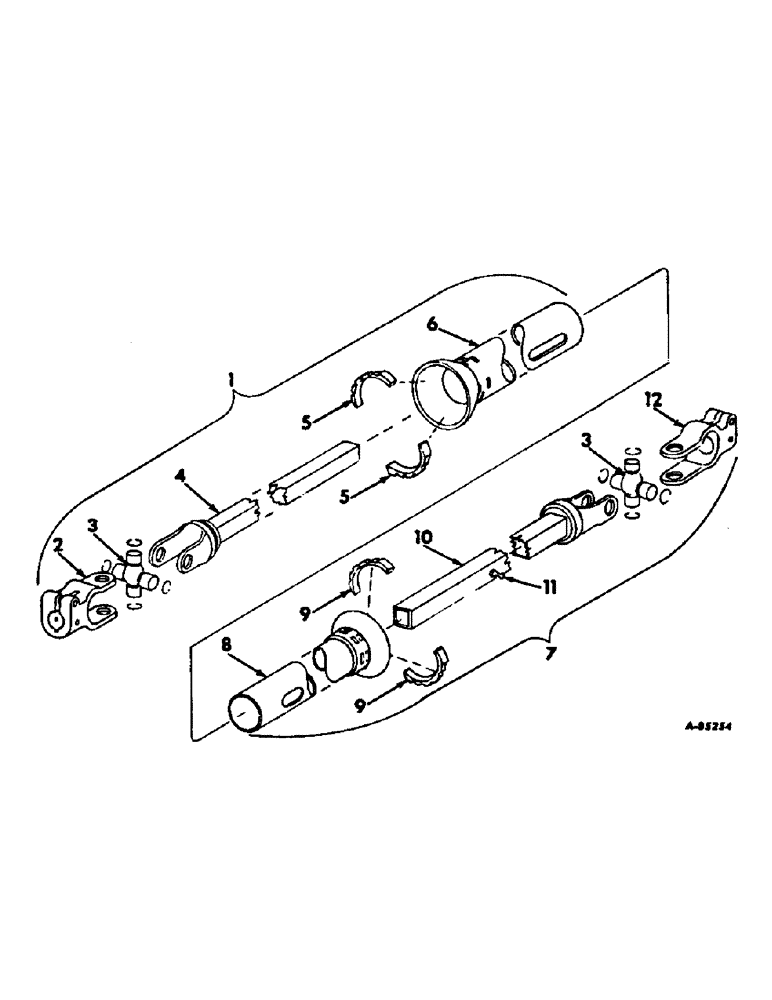

Запчасти Case IH 95 (18-16) - HARVESTING UNIT, BRUSH ROLL UNIT, DRIVE SHAFT ASSEMBLY Harvesting Unit

1

204237C91

SHAFT ASSY, inner slip half

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

617941R1

PIN,5/16" x 2", Coiled

2шт.

2

204241C1

YOKE, clamp

1шт.

3

480486R91

CROSS

KIT, center cross

1шт.

4

204239C1

SHAFT ASSY, yoke

1шт.

5

668336R1

NYLON BEARING,0.317"

nylon

2шт.

6

204240C1

SHIELD, outer

1шт.

7

204238C91

SHAFT ASSY, outer slip half

1шт.

8

204243C1

SHIELD, inner

1шт.

9

668336R1

NYLON BEARING,0.317"

nylon

2шт.

10

204242C1

TUBE ASSY, yoke

1шт.

11

20691R1

FITTING,3/16" x .47" lg, Drive

.194 str lub

1шт.

12

204244C1

YOKE

clamp

1шт.
