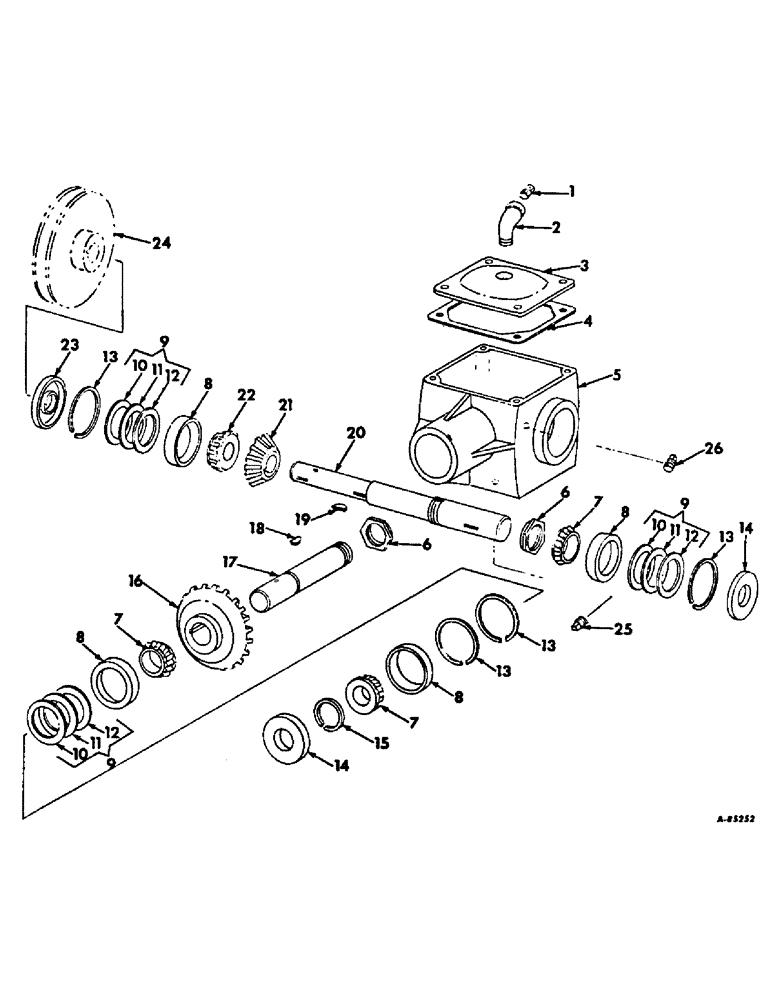

Запчасти Case IH 95 (18-14) - HARVESTING UNIT, BRUSH ROLL UNIT, GEAR BOX ASSEMBLY Harvesting Unit

203652C91

BOX ASSY, unit drive gear, Consists of the following parts

1шт.

1

356569R1

PLUG

3/8 vent

1шт.

2

144119

ADAPTER

ELBOW, 3/8 45 deg street

1шт.

3

204140C1

COVER

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

4шт.

4

594438R1

GASKET

1шт.

5

GEAR BOX, Not serviced separately, Order box assy, 203652C91

1шт.

6

594436R1

NUT

1-1/4-18 hex. stake

2шт.

7

459456R91

CONE

BEARING ASSY

3шт.

8

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, bearing

4шт.

9

204164C91

SHIM KIT

KIT, unit drive gear shift box shim

1шт.

10

SHIM, .005, Not serviced separately, Order kit, 204164C91

1шт.

11

SHIM, .010, Not serviced separately, Order kit, 204164C91

1шт.

12

SHIM, .020, Not serviced separately, Order kit, 204164C91

1шт.

13

594433R1

RING

snap

4шт.

14

202133C91

OIL SEAL

grease

2шт.

15

594440R1

RING

snap

1шт.

16

204135C1

GEAR, bevel

1шт.

17

204137C1

SHAFT

output

1шт.

18

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

1шт.

19

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, 1/4 x 7/8 Woodruff A

1шт.

20

204138C1

SHAFT

input

1шт.

21

204136C1

GEAR

bevel

1шт.

22

594446R91

ROLLER BEARING

BEARING ASSY

1шт.

23

204139C91

SEAL

grease

1шт.

24

PULLEY, auger drive, See cross auger drive

1шт.

25

280667R91

PLUG, 3/8 magnetic

1шт.

26

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8 NPT sq-hd oil check

1шт.
