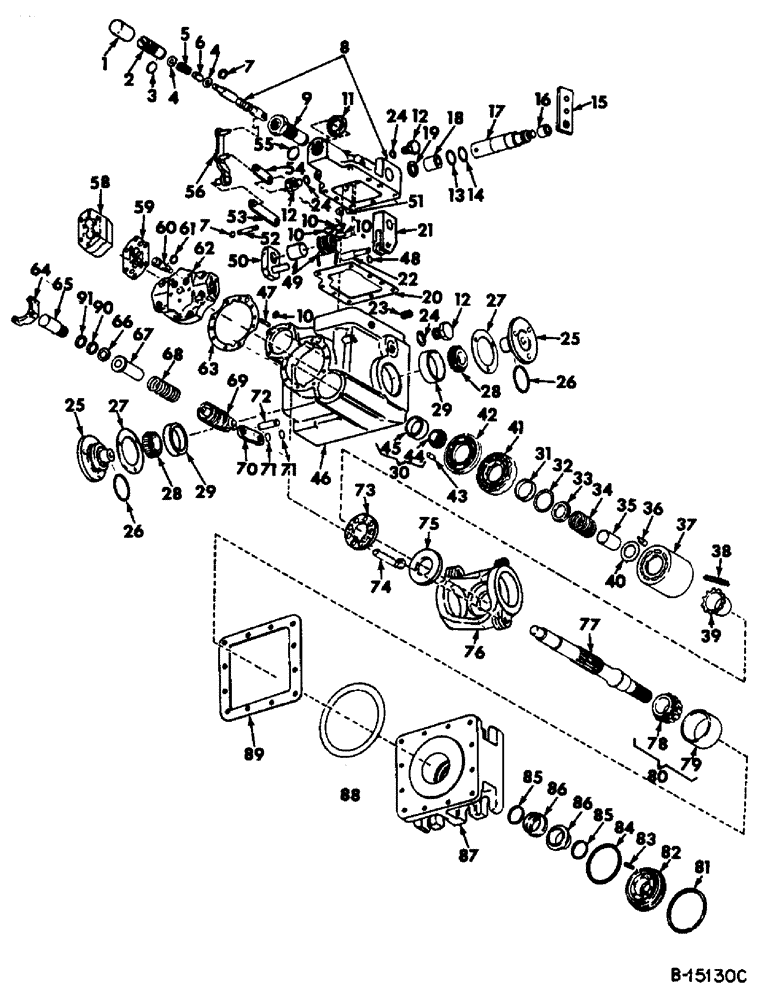

Запчасти Case IH 95 (07-13) - DRIVE TRAIN, HYDRAULIC DRIVE PUMP, SUNDSTRAND, FOR HYDROSTATIC GROUND DRIVE, SER. NO. 1011 AND BELOW Drive Train

67801C92

REMAN-INJECTION PUMP

PUMP ASSY, ground drive, renewed

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

674652R1

WASHER, 17/32 x 1-1/4 x 1/4 C-Z

4шт.

1

400546R1

COVER

centering spring housing

1шт.

2

394224R1

SCREW,Sl, 3/4" - 16 x 1.56"

centering spring adjusting

1шт.

219753

BACK-UP RING

3/4-16 hex jam

1шт.

3

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

13/16 x 15/16 x 1/16

1шт.

4

527553R1

SPRING WASHER

centering spring

2шт.

5

527554R1

SPRING

centering

1шт.

6

394227R1

SLEEVE

centering spring

1шт.

7

233045R1

SNAP RING,#25, Ext, Crescent

Ring, Snap, , Control valve link pin #25, Ext, Crescent

1шт.

8

533856R1

VALVE

KIT, control valve and spool

1шт.

9

394222R1

HOUSING

centering spring

1шт.

10

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

4шт.

11

394223R1

LOCK NUT

centering spring housing lock

1шт.

12

9410356

PLUG

7/16-20 hex-hd o-ring boss

3шт.

13

23178R1

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

-023, 70 Duro, 1.051" ID x .070" Thk

1шт.

14

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1-16

1шт.

15

404782R1

HANDLE

control valve shaft

1шт.

16

404783R1

SPACER

1шт.

17

394228R1

SHAFT

control valve handle

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

121753

WASHER

1/4 ext-tooth lock

1шт.

18

404711R1

BUSHING

control shaft

1шт.

19

235529R1

SNAP RING,#50, Ext, Crescent

Ring, Snap, , control valve handle shaft #50, Ext, Crescent

1шт.

20

394237R2

GASKET

control valve housing

1шт.

21

406903R1

LINK

control valve handle shaft

1шт.

22

406905R1

PIN

control valve handle shaft link

1шт.

23

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

1шт.

25

394204R1

TRUNNION

swashplate brg

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

394881R1

WASHER

15/32 x 11/16 x .106

6шт.

26

21003R1

O-RING,2.484" ID x 2.762" OD x 0.139"

2-1/2 x 2-3/4 x 1/8

2шт.

27

394205R91

SET

swashplate brg trunnion gasket

1шт.

28

165963R91

BEARING

ASSY, swashplate cone

2шт.

29

560954R1

BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"

ASSY, swashplate cup

2шт.

30

394200R91

BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"

ASSY, drive shaft rear pilot

1шт.

31

394197R1

RING

cyl block brg plate pilot

1шт.

32

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, drive shaft rear spring retainer snap

1шт.

33

394195R1

RETAINER

drive shaft rear spring

1шт.

34

532290R2

SPRING

drive shaft rear

1шт.

35

394193R1

BUSHING

drive shaft rear spring

1шт.

36

527636R1

PIN

cyl block brg plate

1шт.

37

67788C1

BLOCK

ASSY, piston cyl

1шт.

38

67789C1

SPRING

slipper retainer

6шт.

39

394188R1

GUIDE

cyl block piston slipper

1шт.

40

394192R1

SEAT

piston cyl block spring

1шт.

41

399406R1

PLATE

cyl block brg

1шт.

42

530769R1

PLATE

cyl block valve

1шт.

43

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel

1шт.

44

BEARING ASSY, drive shaft rear pilot cone, Not serviced separately, Order bearing assy, 394200R91

1шт.

45

BEARING ASSY, drive shaft rear pilot cup, Not serviced separately Order bearing assy, 394200R91

1шт.

46

394179R1

HOUSING

transmission pump

1шт.

47

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel pump housing

4шт.

48

21346R1

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , control valve link #25, Ext, E-Type

1шт.

49

71923C91

KIT

ASSY, sleeve and spring

1шт.

50

394232R1

ARM

ACTUATOR, control valve, handle shaft return spring

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

51

394219R1

PLUG

control valve orifice

1шт.

142876C91

HYDRAULIC VALVE

KIT, control valve, Replaces 128032C91, Composed of ref nos. 1 through 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 48, 49, 50, 54, 55, 56, nut, 219753, nut, 114501, pin 18518R1 and washer, 121753

1шт.

179806

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

SCREW, 1/4-20 x 2-1/4 hex-hd cap

9шт.

385180R1

WASHER

9/32 x 1/2 x .065

9шт.

52

394215R1

PIN

control valve link front

1шт.

53

394214R1

LINK

control valve

1шт.

54

406904R1

ELEC CONNECTOR

CONNECTOR, control valve link

1шт.

55

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16, centering spring housing

1шт.

56

128033C1

LINK ASSY.

LINK, control valve, Replaces two links, 394233R1 and two pins 394235R1

1шт.

57

NOT USED THIS APPLICATION

1шт.

58

404777R92

PUMP, HYDRAULIC

PUMP ASSY, hyd charge

1шт.

179809

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

385180R1

WASHER

9/32 x 1/2 x .065

4шт.

59

533858R1

GASKET

charge pump

1шт.

60

394238R91

VALVE

ASSY, charge pump check

2шт.

61

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16

2шт.

62

530731R1

CAP

COVER, transmission pump rear end

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106

9шт.

63

394218R1

GASKET

transmission pump rear end cover

1шт.

64

394213R1

RETAINER

servo piston sleeve

2шт.

536291R1

SCREW

10-24 x 3/8 hex-soc-hd cap

4шт.

65

403074R2

SLEEVE

servo piston

2шт.

66

394207R1

WASHER

servo piston bolt

2шт.

67

394211R1

GUIDE

servo piston spring

2шт.

68

549726R1

SPRING

servo piston

2шт.

69

537761R1

PISTON

servo

2шт.

537762R1

SCREW

1/4-20 x 5/8 hex-hd cap nylon coated

2шт.

70

549725R1

LINK

servo piston

2шт.

71

267805R1

RING

servo piston link pin snap

8шт.

72

65797C1

PIN

servo piston link

4шт.

73

394189R1

RETAINER

cyl block piston slipper

1шт.

74

142484C1

PISTON ASSY.

PISTON ASSY, cyl block, Replaces 539252R1

9шт.

75

394186R3

PLATE

piston slipper thrust

1шт.

76

394185R1

SWASHPLATE, transmission pump

1шт.

77

404779R1

SHAFT

pump drive

1шт.

78

BEARING ASSY, drive shaft front cone, Not serviced separately, Order bearing assy 394181R91

1шт.

79

BEARING ASSY, drive shaft front cup, Not serviced separately, Order bearing assy, 394181R91

1шт.

80

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

ASSY, drive shaft front

1шт.

81

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face seal 3.346", Int, #334

1шт.

82

393881R91

RETAINER

ASSY, drive shaft face seal

1шт.

83

393882R1

SPRING

drive shaft face seal retainer

6шт.

84

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8

1шт.

85

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 x 3/32

2шт.

86

NOT SERVICED SEPARATELY, Order o-ring and seal package 403072R92

1шт.

87

404778R1

COVER

transmission pump front

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

394881R1

WASHER

13/32 x 11/16 x .106

12шт.

88

404780R1

SHIM

1шт.

89

394184R1

GASKET

transmission pump front cover

1шт.

90

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

2шт.

93

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2-3/8 x 2-9/16 x 3/32

2шт.

403072R92

O-RING KIT

o-ring and seal, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

2шт.

393882R1

SPRING

6шт.

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

65018C91

KIT

PACKAGE, hyd pump piston & plate kit service, Consists of

1шт.

142484C1

PISTON ASSY.

PISTON

9шт.

399406R1

PLATE

brg

1шт.

530769R1

PLATE

valve RH

1шт.

133789C92

KIT

cylinder block, Consists of

1шт.

399406R1

PLATE

bearing

1шт.

142484C1

PISTON ASSY.

PISTON ASSY

9шт.

394188R1

GUIDE

retainer

1шт.

394189R1

RETAINER

slipper

1шт.

67789C1

SPRING

retainer

6шт.

394192R1

SEAT

spring

1шт.

394193R1

BUSHING

GUIDE, spring

1шт.

532303R2

SPRING

cylinder block

1шт.

394195R1

RETAINER

spring

1шт.

527636R1

PIN

piston cylinder

1шт.

394197R1

RING

PILOT, bearing plate

1шт.

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, internal retaining

1шт.

NSS

NOT SOLD SEPARAT

CYLINDER BLOCK

1шт.

24

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.
