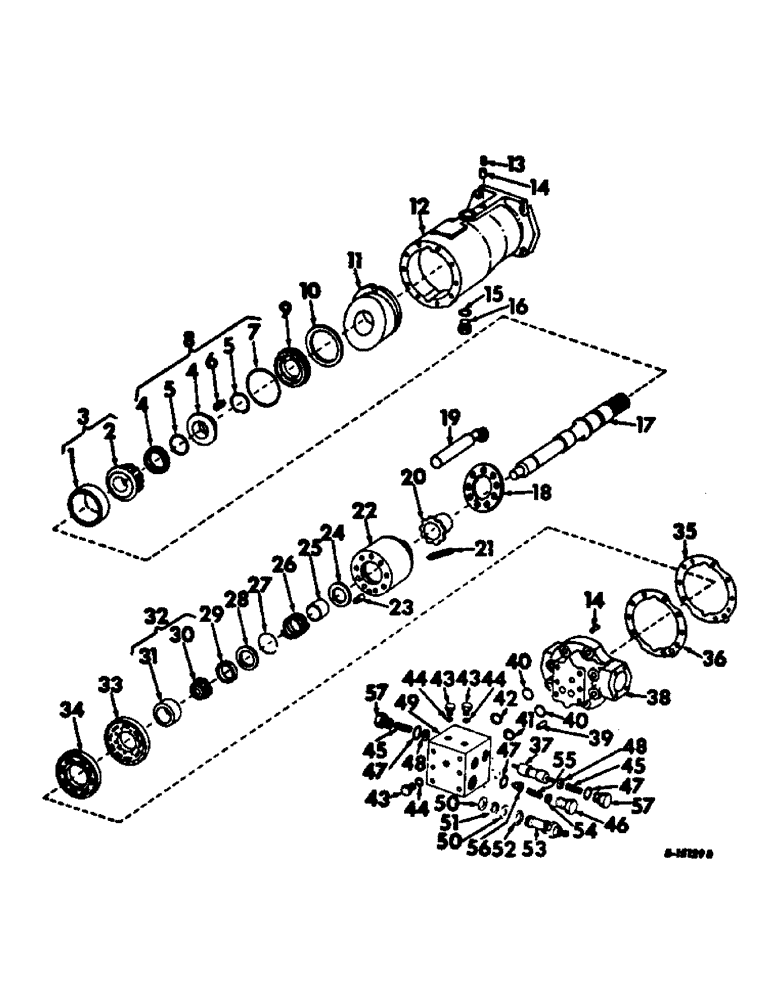

Запчасти Case IH 95 (07-11) - DRIVE TRAIN, HYDRAULIC MOTOR ASSEMBLY, SUNDSTRAND, FOR HYDROSTATIC GROUND DRIVE, S/N 1011 AND BELOW Drive Train

67809C91

REMAN-ENG OIL PUMP

MOTOR ASSY, hydrostatic drive, renewed

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

674652R1

WASHER, 17/32 x 1-1/4 x 1/4 C-Z, Consists of the following service parts less ref no. 57

4шт.

1

BEARING ASSY, drive shaft front cup cone, Not serviced separately order bearing assy 394150R91

1шт.

2

BEARING ASSY, drive shaft front cone, Not serviced separately order bearing assy 394150R91

1шт.

3

394150R91

BEARING, ROLLER

BEARING ASSY, drive shaft front

1шт.

4

NOT SERVICED SEPARATELY, order 403072R91

1шт.

5

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 x 3/32

2шт.

6

393882R1

SPRING

drive shaft face seal retainer

6шт.

7

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8

1шт.

8

403072R92

O-RING KIT

drive shaft face seal, Composed of

1шт.

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 x 3/32

2шт.

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8

1шт.

393882R1

SPRING

S

6шт.

NSS

NOT SOLD SEPARAT

SHAFT SEAL

1шт.

NSS

NOT SOLD SEPARAT

HOUSING SEAL

1шт.

9

393881R91

RETAINER

ASSY, drive shaft seal

1шт.

10

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face seal 3.346", Int, #334

1шт.

11

394152R1

PLATE

SWASHPLATE, hyd motor

1шт.

12

394148R1

HOUSING, hyd motor

1шт.

13

444687

PLUG,Hex Soc, 1/8"-27

Pipe Hex Soc, 1/8"-27

1шт.

14

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

16

9410360

PLUG

7/8-14 C-Z str-thd o-ring boss

1шт.

17

404798R1

SHAFT

hyd motor drive

1шт.

18

394155R1

RETAINER

cyl block piston slipper guide

1шт.

19

539256R1

PISTON ASSY

cyl block

9шт.

20

394154R1

GUIDE

cyl block piston slipper

1шт.

21

71720C1

SPRING, slipper retainer, Replaces 394157R1

6шт.

22

71219C1

BLOCK ASSY.

BLOCK ASSY, piston cyl, Replaces 394156R91

1шт.

23

394164R1

PIN

cyl block brg plate

1шт.

24

394158R1

SEAT

piston cyl block spring

1шт.

25

394159R1

GUIDE

BUSHING, drive shaft rear spring

1шт.

26

394194R1

SPRING

drive shaft rear

1шт.

27

21015R1

SNAP RING,#212, 2.217, Int, Spiral

RING, drive shaft rear spring retainer snap

1шт.

28

394161R1

RETAINER

drive shaft rear spring

1шт.

29

394162R1

RING

cyl block brg plate pilot

1шт.

30

BEARING ASSY, drive shaft rear pilot cone, Not serviced separately order bearing assy 394165R91

1шт.

31

BEARING ASSY, drive shaft rear pilot cup, Not serviced separately order bearing assy 394166R91

1шт.

32

394166R91

BEARING ASSY,0.75" ID x 2.125" OD x 0.878, 0.625"

BEARING ASSY, drive shaft rear pilot

1шт.

33

404201R1

PLATE

cyl block brg

1шт.

34

530768R1

LARGE PLATE

PLATE, cyl block valve

1шт.

35

404197R1

SHIM

motor shaft rear brg .010

1шт.

36

394170R1

GASKET

motor rear end cover

1шт.

37

SPOOL, shuttle valve, Not serviced separately, Order 529426R1

1шт.

38

530729R1

CAP, motor rear end

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106

9шт.

39

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel

2шт.

40

393886R1

WASHER

WASHER, manifold valve

2шт.

394171R91

VALVE

ASSY, hyd motor manifold, less relief valve, Includes ref nos. 37, 43, 44, 45, 46, 47, 48, 49, 51, 55 and 56

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

6шт.

394880R1

WASHER

11/32 x 19/32 x .083

6шт.

41

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32 manifold valve housing large

2шт.

42

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 x 1 x 1/16 manifold valve housing small

1шт.

43

9410356

PLUG

7/16-20 C-Z str thd o-ring boss manifold valve housing

3шт.

45

394176R1

SPRING

manifold shuttle valve

2шт.

46

394173R1

PLUG

relief valve

1шт.

47

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32 shuttle valve plug

3шт.

48

394177R1

WASHER

manifold shuttle valve

2шт.

49

529426R1

HOUSING

AND SPOOL ASSY, manifold valve

1шт.

50

393887R1

BACK-UP RING

RING, relief valve back-up

4шт.

51

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32 relief valve small

2шт.

52

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64 relief valve large

2шт.

53

402626R94

VALVE

ASSY, high pressure relief

2шт.

54

394279R91

KIT

PACKAGE, relief valve shim

1шт.

55

531174R1

SPRING

manifold relief valve

1шт.

56

531175R1

PISTON

manifold relief valve

1шт.

57

63432C1

PLUG

manifold shuttle valve

2шт.

166506C1

GASKET,0.81mm Thk

hydrostatic motor

1шт.

393884R91

KIT

PACKAGE, manifold valve housing seal, Composed of

1шт.

393886R1

WASHER

WASHER

2шт.

383219R1

O-RING,0.924" ID x 0.103" Width

15/32 x 1-1/8 x 3/32

2шт.

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 x 1 x 1/16

1шт.

393885R91

GASKET KIT

PACKAGE, relief valve seal, Composed of

1шт.

393887R1

BACK-UP RING

RING

4шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

2шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64

2шт.

44

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Manifold valve housing boss plug

3шт.
