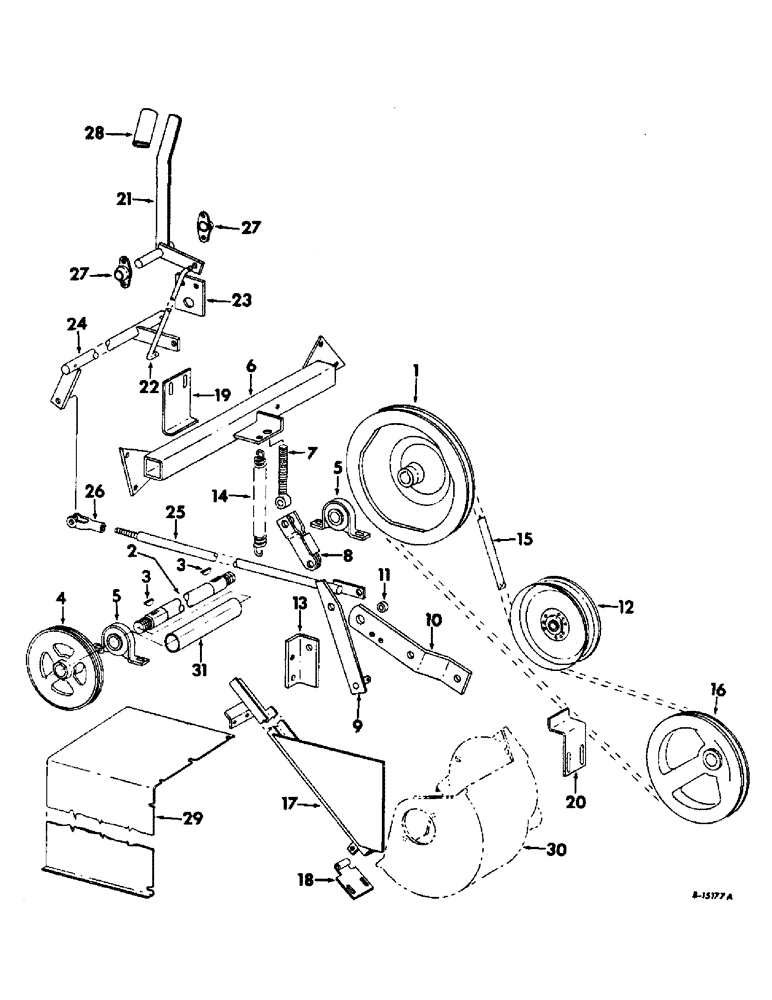

Запчасти Case IH 95 (07-07) - DRIVE TRAIN, AUXILIARY DRIVE Drive Train

1

203601C1

PULLEY, countershaft

1шт.

2

212135C1

SHAFT, main drive, Replaces 203602C1, by also ordering two bearings, 212312C91 and tube, 212136C1

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 nylon insert

2шт.

3

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, 3/16 x 2-/8 Woodruff 126

2шт.

4

672637R2

PULLEY

unit drive

1шт.

5

204069C91

BEARING ASSY, shaft, less collar, Serial no. 801 and below

2шт.

5

212312C91

BEARING CARRIER

BEARING ASSY, shaft, less collar, Serial no. 802 and above

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex lock

4шт.

20601R1

WASHER

17/32 x 1-1/4 ga znd

6шт.

6

203604C1

TUBE ASSY, anchor

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex lock

4шт.

7

666414R1

BOLT, main drive eye

1шт.

280954

NUT,3/4"-10, G5

2шт.

8

666522R91

TOGGLE ASSY, main drive

1шт.

9

203608C1

LEVER ASSY, main drive

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

10

203610C1

ARM, main drive idler

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex lock

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga znd

1шт.

11

663787R1

BUSHING, idler arm

1шт.

12

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

ASSY

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

203611C1

BRACKET, pivot

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

2шт.

14

662632R1

SPRING

idler arm

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

2шт.

15

203612C1

BELT,118.61" L

V-BELT , Countershaft 118.61" L

1шт.

16

203613C1

PULLEY

countershaft drive

1шт.

17

204030C1

SUPPORT ASSY, belt

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

23326R1

HEADED PIN,3/8" x 2 1/8"

PIN, 3/8 x 2-1/8 znd std-hd

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

18

203615C1

PIVOT, belt support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

19

203628C1

GUIDE, belt upper

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

2шт.

20

203616C1

GUIDE, belt lower

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

2шт.

21

203617C2

LEVER ASSY, main drive

1шт.

366112R1

WASHER

.781 x 1.250 x .105 znd

1шт.

22

203619C1

ROD, main drive upper

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

23

203620C1

PLATE, control shaft bearing

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

4шт.

24

203621C1

SHAFT ASSY, main drive control

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

25

203624C1

ROD ASSY, main drive lower

1шт.

120371

NUT,1/2"-20, G5

1шт.

26

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 LT adj rod end

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, , Rod end 1/2" x 1.360"

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

27

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING ASSY, main drive lever

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

4шт.

173934C1

NUT, 3/4 speed

1шт.

28

938885R1

GRIP

KNOB, main drive lever

1шт.

29

203999C1

SHIELD, main drive

1шт.

30

CARRIER, hydraulic pump, Refer to main drive gear box

1шт.

31

212136C1

TUBE, main drive shaft brg spacer, Serial no. 802 and above

1шт.
