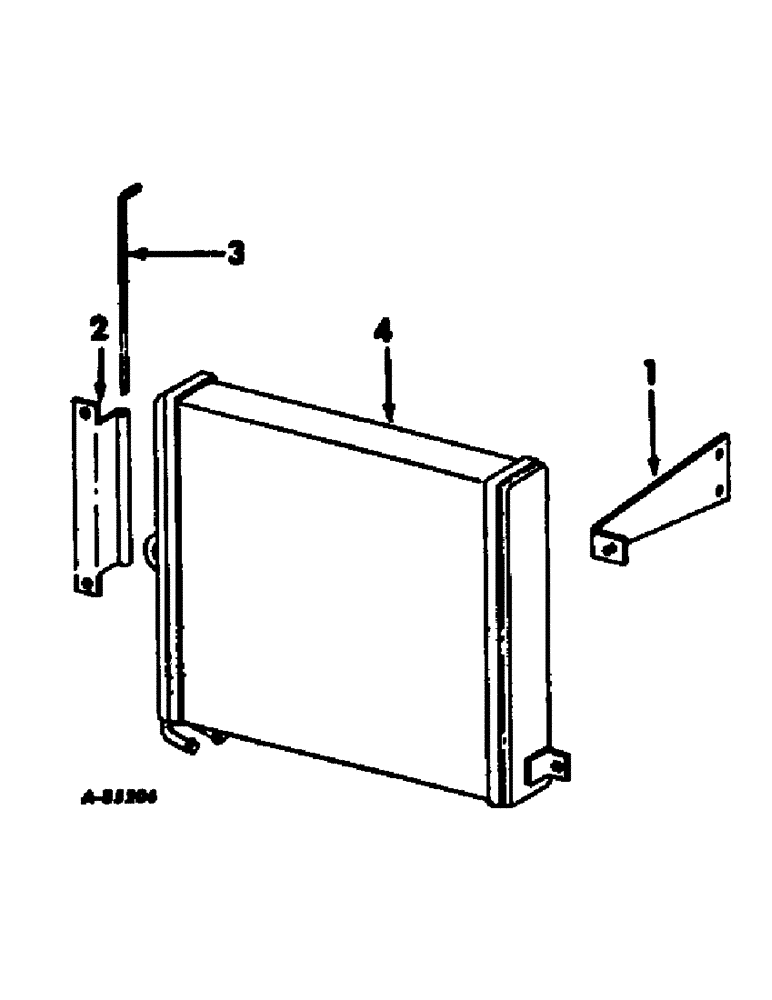

Запчасти Case IH 95 (06-1) - COOLING, OIL COOLER Cooling

1

203574C1

LATCH ASSY, oil cooker

1шт.

382652R1

PIN

1/16 quick attachable cot

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

2шт.

2

203576C1

HINGE, oil cooler support

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

2шт.

3

203577C1

ROD, oil cooler hinge

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

4

406408R2

COOLER

oil, Optional w/536349R1

1шт.

4

536349R1

COOLER

oil, Optional w/406408R2

1шт.
