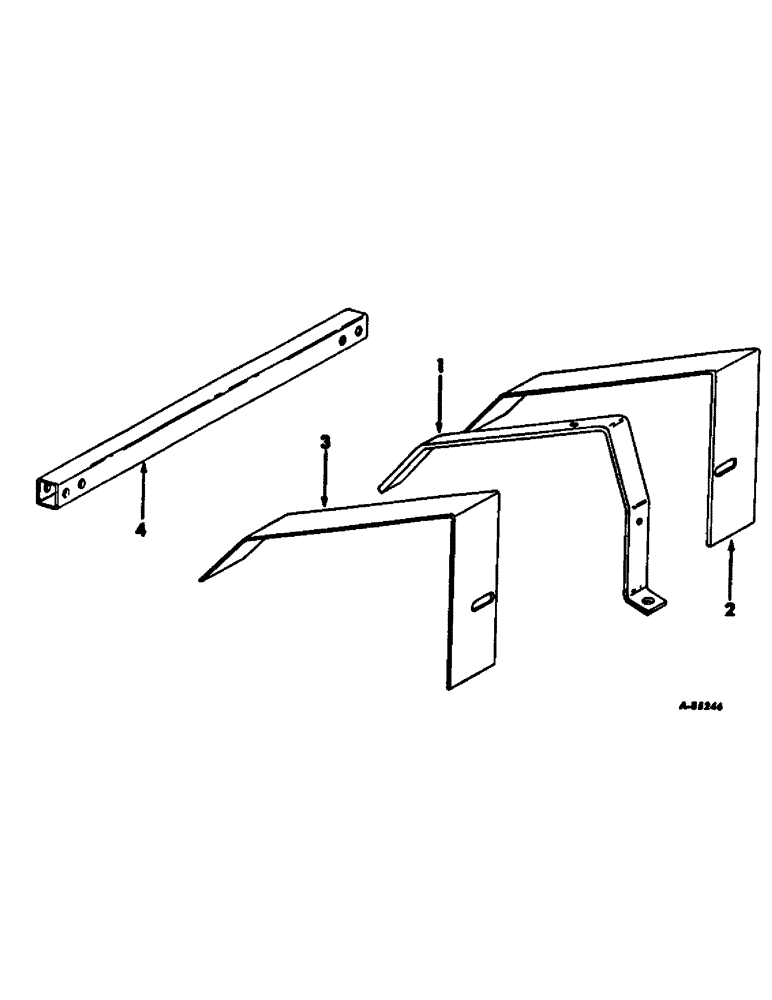

Запчасти Case IH 95 (19-22) - BASKET AND CONVEYOR, 30, 32, 34, 36, AND 38 INCH ROW SPACING ATTACHMENT Basket & Conveyor

1

203441C1

BRACKET ASSY, center trough cover

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 1 znd hex-hd cap

2шт.

203457C1

BOLT, 3/8-16 x 1 wing

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

2шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 znd wing

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga znd

6шт.

2

203455C1

COVER, cross auger narrow LH

1шт.

3

203456C1

COVER, cross auger narrow RH

1шт.

4

203531C1

TUBE

drive shaft 38 in. rows

1шт.

4

203532C1

TUBE

drive shaft 36 in. rows

1шт.

4

203533C1

TUBE

drive shaft 34 in. rows

1шт.

4

203534C1

TUBE

drive shaft 32 in. rows

1шт.

4

203535C1

TUBE

drive shaft 30 in. rows

1шт.
