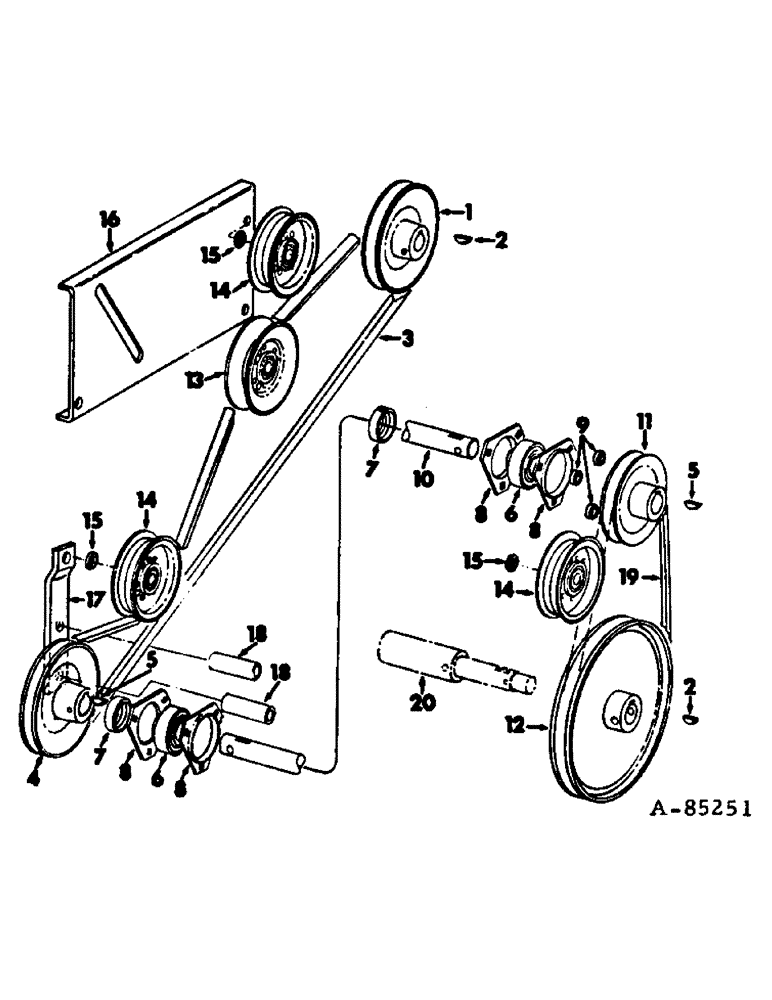

Запчасти Case IH 95 (19-21) - BASKET AND CONVEYOR, CROSS AUGER DRIVE Basket & Conveyor

1

203643C1

PULLEY

auger drive

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.

2

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

3

203644C1

BELT,114.39" L

V-BELT , Cross auger countershaft 114.39" L

1шт.

4

203645C1

PULLEY

countershaft

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

5

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff B

2шт.

6

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

ASSY, auger countershaft

2шт.

7

557115R11

COLLAR

COLLAR W/SET SCREW, brg lock

2шт.

8

662649R1

RETAINER

FLANGE, brg mount

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

6шт.

9

S5375

SPACER,3/8" Pipe x 3/8"

brg flange

3шт.

10

203646C1

SHAFT

COUNTERSHAFT, auger

1шт.

11

203647C1

PULLEY

countershaft drive

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

12

203648C1

PULLEY

auger

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.

13

662959R91

PULLEY ASSY.

PULLEY ASSY, V stationary

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14

662958R91

PULLEY

ASSY, flat

3шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 znd sq-nk crg

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 znd hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

446266

WASHER,7/8" x 2" x .165"

15/16 x 2 x 11 ga

2шт.

15

661629R1

SPACER, idler

3шт.

16

203649C1

PLATE, auger countershaft idler

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

2шт.

17

203650C1

ARM, cross auger lower idler

1шт.

18

574467R1

SPACER, .423 x .675 x 2 pipe

2шт.

181652

YOKE

SCREW, 3/8-16 x 3 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

19

203651C1

BELT,52.61" L

Cross auger 52.61" L

1шт.

20

SHAFT ASM, cross auger drive, See cross auger

1шт.
