Запчасти Case IH 95 (19-17) - BASKET AND CONVEYOR, BOLL BOX AND CONTROLS Basket & Conveyor

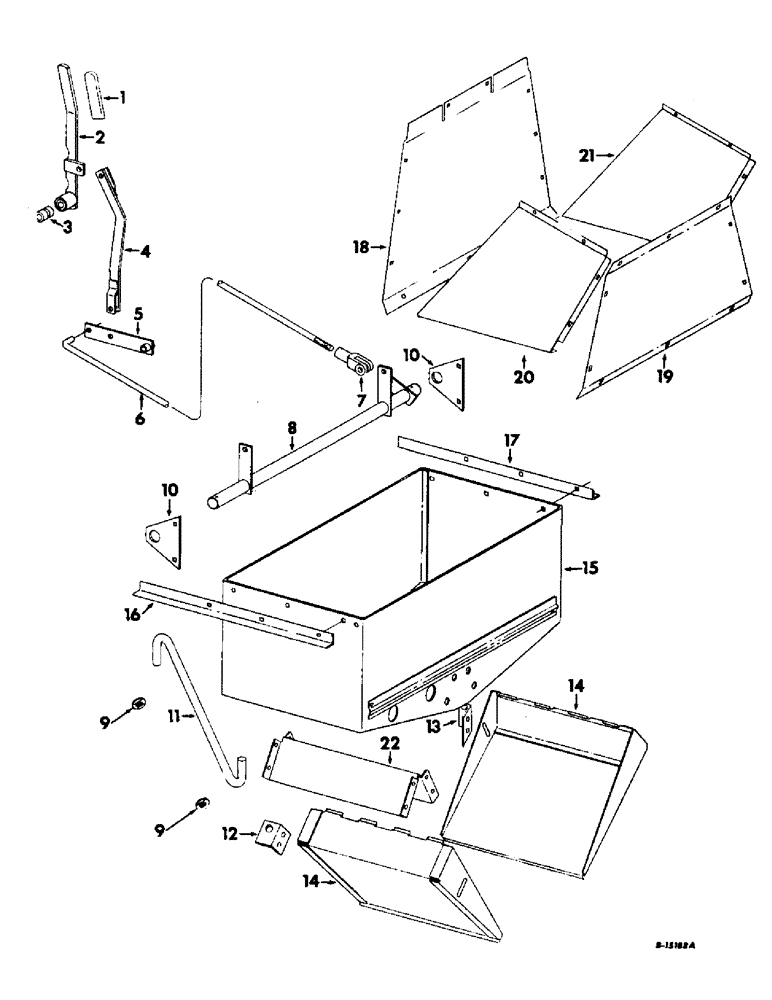

Схема запчастей Case IH 95 - (19-17) - BASKET AND CONVEYOR, BOLL BOX AND CONTROLS Basket & Conveyor
13
18
20
15
1
2
16
6
9
4
5
12
21
14
10
14
9
3
8
7
10
17
22
11
19

Артикул

Название

Примечание

Количество

1

938885R1

GRIP

handle

1шт.

2

175463C92

LEVER ASSY, boll box control

1шт.

3

938847R91

BEARING ASSY

1шт.

4

203731C1

STRAP ASSY, door lever

1шт.

21881R1

CLEVIS PIN

PIN, 3/8 x 1 znd rod end

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

5

203733C1

BELLCRANK ASSY

1шт.

23225R1

HEADED PIN,3/8" x 2"

PIN, HEADED, 3/8" x 2"

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

6

203735C1

ROD, boll box linkage

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

7

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 adj rod end

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1-7/32 phc clevis

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

8

203736C1

SHAFT ASSY, door linkage

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

9

652328C1

NUT, grip

4шт.

10

203740C1

STRAP, shaft mounting

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

4шт.

11

203741C1

HOOK

boll box door

2шт.

12

203742C1

ANGLE, door adjusting LH

1шт.

13

203743C1

ANGLE, door adjusting RH

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 znd hex. lock

4шт.

14

203744C1

DOOR ASSY, boll box

2шт.

15

203749C1

BOX ASSY, boll

1шт.

16

203753C1

ANGLE, boll box support LH

1шт.

17

203754C1

ANGLE, boll box support RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

6шт.

18

203759C1

SHEET, front transition boll box

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

11шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

11шт.

19

203760C1

SHEET, rear boll box transition

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

10шт.

20

203761C1

SHEET, boll box transition side LH

1шт.

21

203762C1

SHEET, boll box transition side RH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

4шт.

22

203763C1

BAFFLE, boll box

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

8шт.

Выбрано товаров: 47
