Запчасти Case IH 95 (19-16) - BASKET AND CONVEYOR, FAN DRIVE Basket & Conveyor

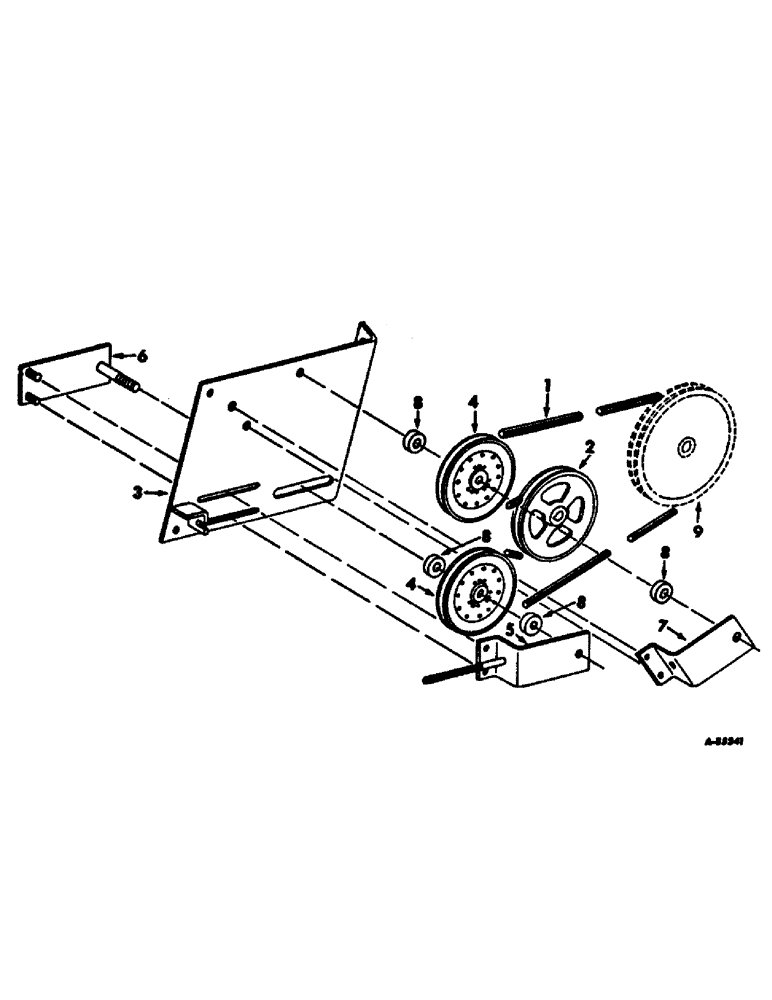

Схема запчастей Case IH 95 - (19-16) - BASKET AND CONVEYOR, FAN DRIVE Basket & Conveyor
5
4
3
6
6
4
8
2
1
8
7
9
8

Артикул

Название

Примечание

Количество

1

203708C1

BELT,129.89" L

Fan drive 129.89" L

1шт.

2

203715C1

PULLEY

fan drive

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

3

203716C1

PLATE ASSY, fan drive idler

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

4

574097R91

PULLEY

IDLER ASSY, pulley

2шт.

5

203719C1

BRACKET ASSY, adjusting idler

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga znd

1шт.

6

203721C1

STRAP ASSY, idler bracket backup

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

203720C1

BRACKET, fan drive idler

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8-16 x 3/4 znd hex-hd lock

2шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 znd hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

661629R1

SPACER, idler bolt

4шт.

9

PULLEY, countershaft, See auxiliary drive

1шт.

Выбрано товаров: 21
