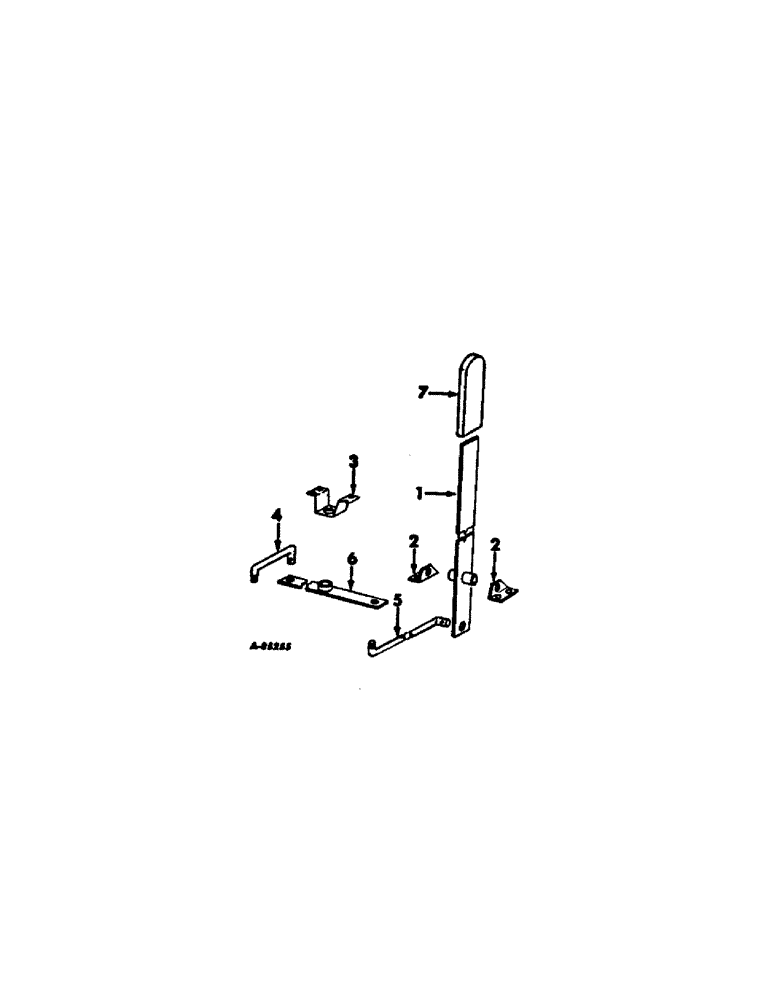

Запчасти Case IH 95 (19-08[1]) - BASKET CONTROL LEVER Basket & Conveyor

1

203378C1

LEVER ASSY, basket control

1шт.

2

574471R1

BRACKET, pivot

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-truss-hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

2шт.

23455R1

PIN, 7/16 x 2-7/8 znd std-hd

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

3

627429R1

SUPPORT, pivot

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

4шт.

4

633673R1

ROD, control

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

5

203380C1

ROD, valve control

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

6

203381C1

LEVER ASSY, valve control

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga znd

1шт.

574464R1

BUSHING, speed control pivot bar

1шт.

7

938885R1

GRIP

lever

1шт.
