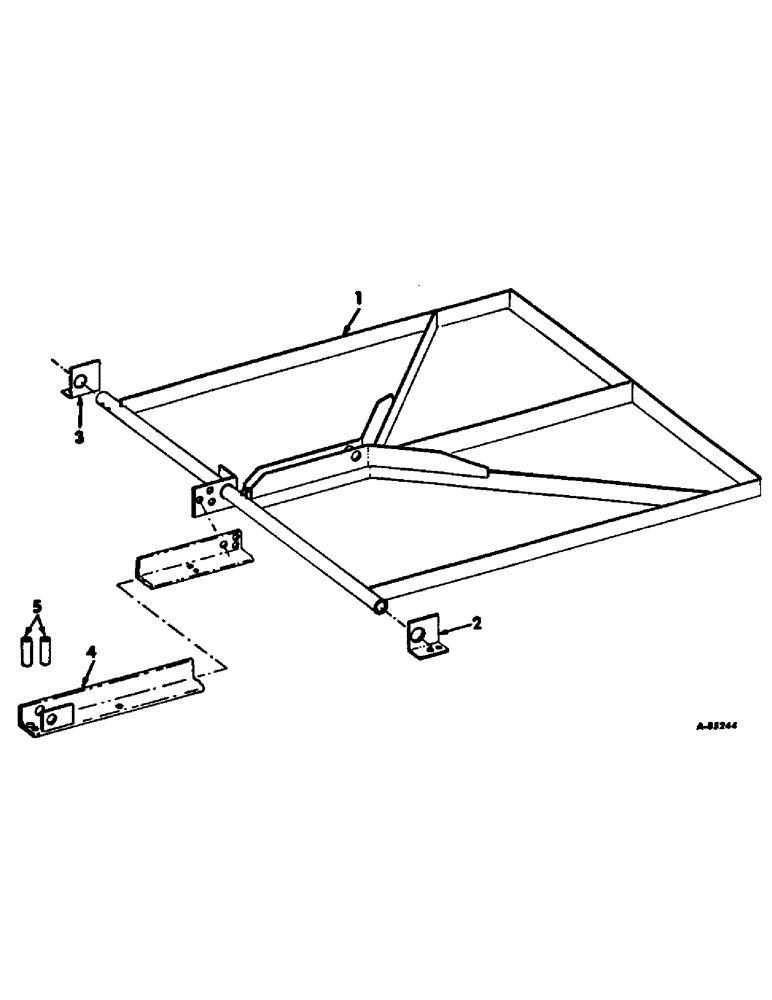

Запчасти Case IH 95 (19-07) - BASKET AND CONVEYOR, BASKET DISTRIBUTOR ATTACHMENT, VANE Basket & Conveyor

1

673540R2

VANE ASSY, distributor

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

3шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

3шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

2шт.

2

673538R1

SUPPORT, vane LH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

21309R1

WASHER

13/32 x 7/8 x 7 ga, Used as spacers

2шт.

3

673809R1

SUPPORT, vane RH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex. lock

2шт.

21309R1

WASHER

13/32 x 7/8 x 7 ga, Used as spacers

2шт.

4

673546R1

ANGLE ASSY, cylinder

2шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

BOLT, 3/8 x 2-3/4 znd sq-nk crg

3шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 znd hex-hd cap

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 x 3 znd hex. lock

5шт.

5

871688R1

SPACER, cylinder

2шт.

21309R1

WASHER

13/32 x 7/8 x 7 ga znd

2шт.

142619H

WASHER

13/32 x 3/4 x 11 ga znd, Under each front 2 spacers

2шт.
