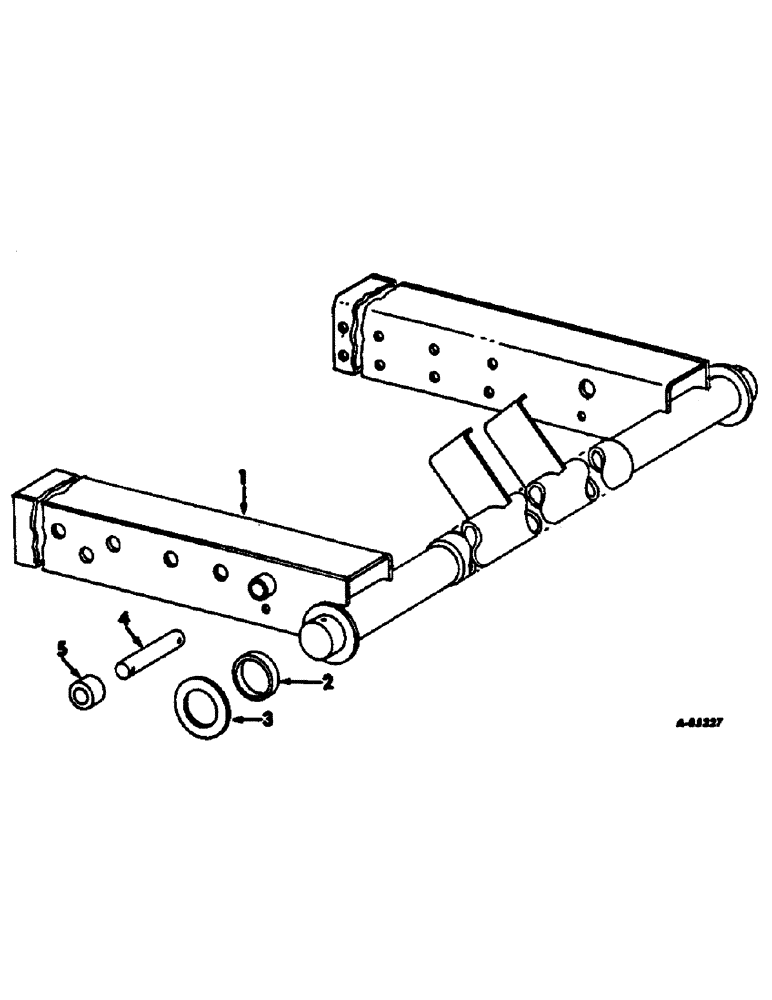

Запчасти Case IH 95 (19-06) - BASKET AND CONVEYOR, BASKET PIVOT Basket & Conveyor

1

203249C1

PIPE ASSY, basket pivot

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

22шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

26шт.

2

203260C1

ROLLER

basket pivot

2шт.

3

203257C1

WASHER

pivot

2шт.

180112

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

SCREW, 5/16-18 x 2-3/4 znd hex-hd cap

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. lock

2шт.

4

672742R2

PIN

basket pivot stop

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

4шт.

5

672741R1

ROLLER

basket pivot stop

2шт.
