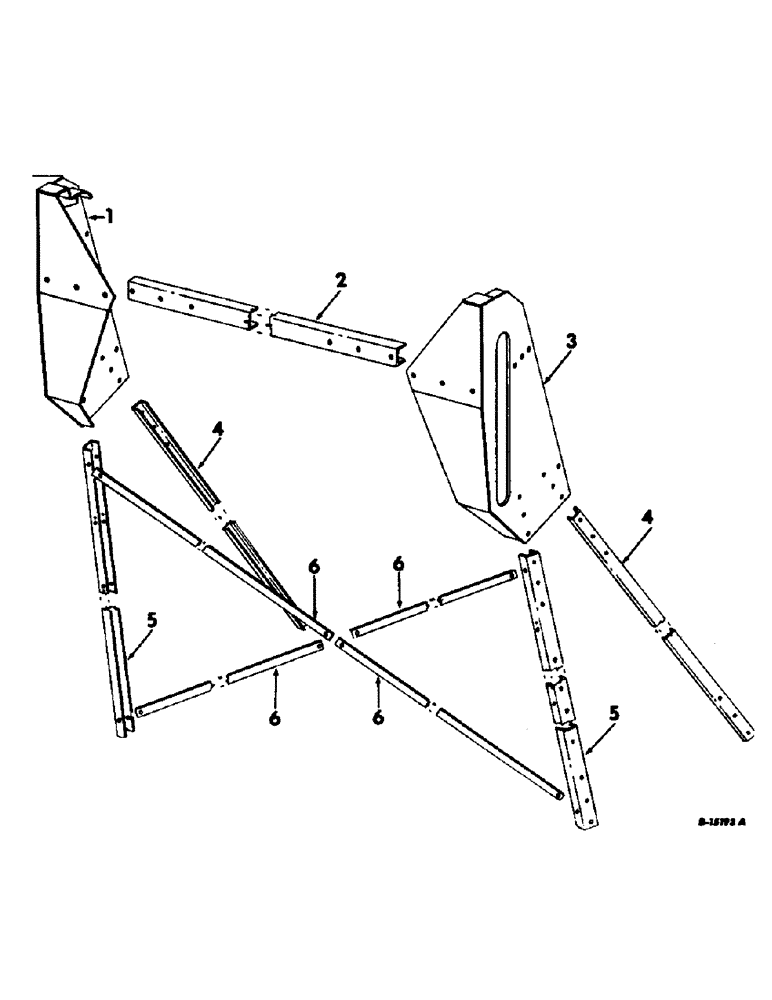

Запчасти Case IH 95 (19-05) - BASKET AND CONVEYOR, BASKET PIVOT FRAME Basket & Conveyor

1

203305C1

PIVOT ASSY, basket front

1шт.

2

203312C1

CHANNEL, horizontal support

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

6шт.

3

203306C1

PIVOT ASSY, basket rear

1шт.

4

203304C1

BRACE, basket pivot

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

12шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

12шт.

5

203303C1

SUPPORT, basket pivot

2шт.

6

203313C1

STRIP, basket diagonal

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2-13 znd hex. lock

5шт.
