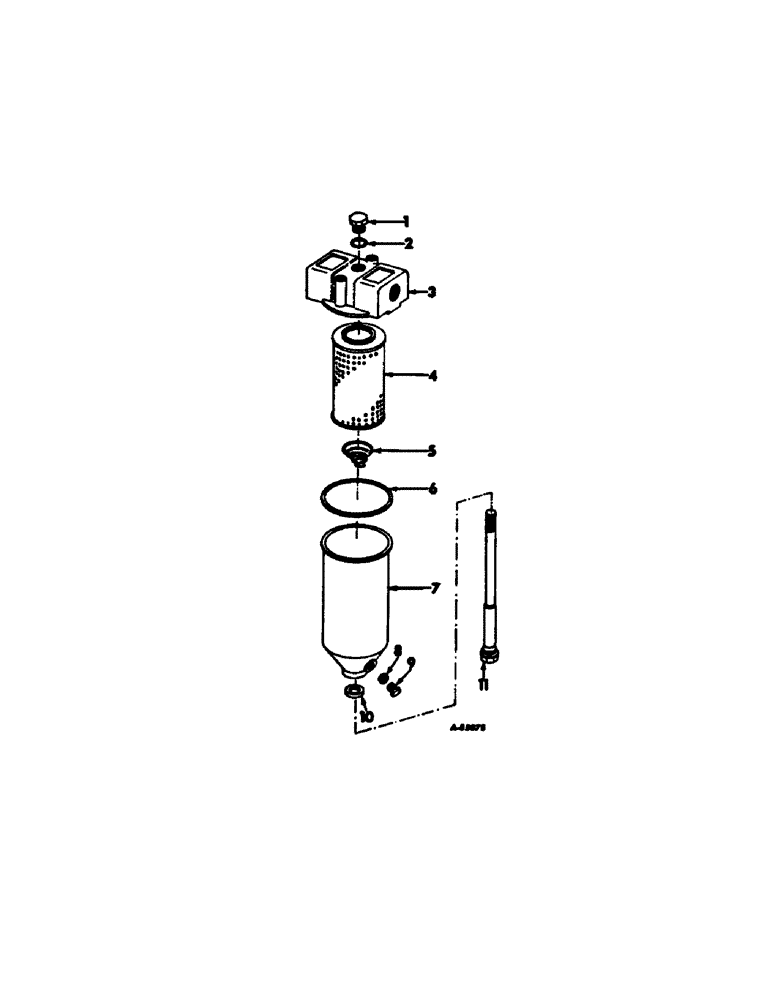

Запчасти Case IH 95 (10-22) - HYDRAULICS, CHARGE PUMP FILTER FOR HYDROSTATIC DRIVE, SERIAL NUMBER 801 AND BELOW (07) - HYDRAULICS

156571C91

FILTER CARTRIDGE

FILTER ASSY, oil, Order filter assy, 123008C91 & package, 204742C91

1шт.

1

9410359

PLUG

3/4-16 C-Z str thd o-ring boss

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

1шт.

3

VALVE AND BASE ASSY, Not serviced separately

1шт.

4

381256R91

ELEMENT

CARTRIDGE ASSY

1шт.

5

471633R1

SPRING

hold down

1шт.

6

381627R1

RUBBER WASHER

GASKET, base groove

1шт.

7

471634R1

BODY FITTING ASSY.

1шт.

8

381618R1

COPPER WASHER

RING, gasket

1шт.

9

445078

PLUG

1/2-20 hex-hd outside drain

1шт.

10

381629R1

GASKET

aluminum

1шт.

11

471632R1

BOLT, hold down

1шт.

204742C91

PACKAGE, spin-on oil filter adapter, Consists of

1шт.

380633R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR

1шт.

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR

1шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

2шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW

3шт.

203787C2

SUPPORT

1шт.

NSS

NOT SOLD SEPARAT

INSTALLING INSTRUCTIONS

1шт.
