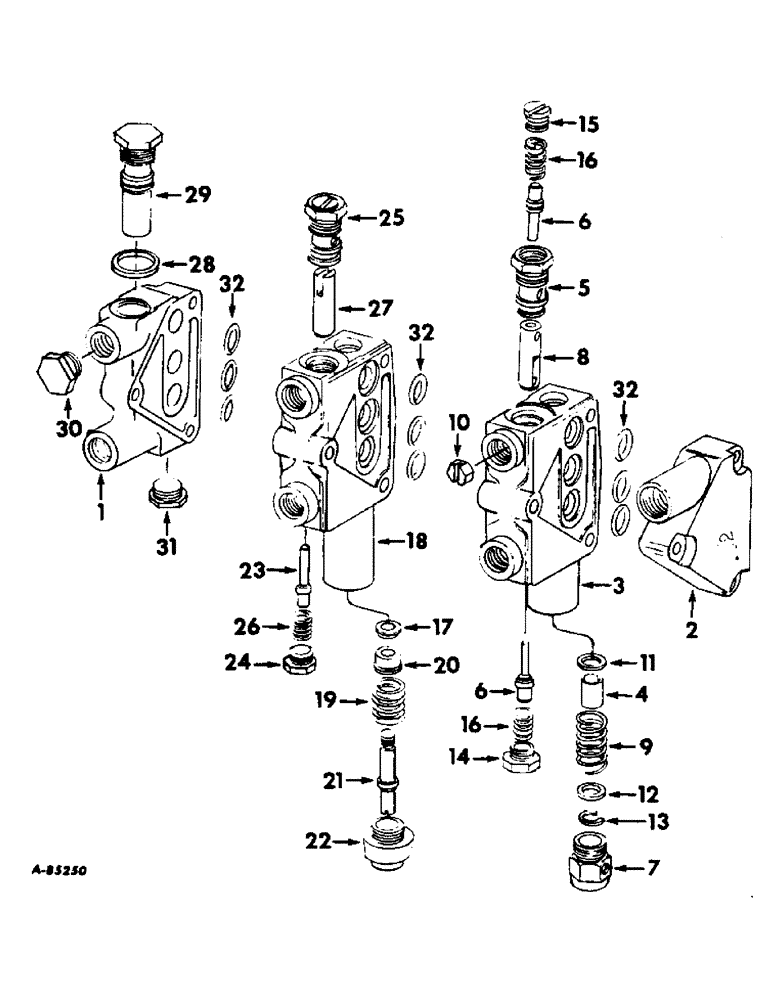

Запчасти Case IH 95 (10-12) - HYDRAULICS, CONTROL VALVE (07) - HYDRAULICS

203833C92

VALVE ASSY, control, Consists of the following parts

1шт.

1

587569R1

PLATE, port LH

1шт.

18775R1

BOLT,Hex, 5/16"-18 x 5", G2

5/16 x 5 type 1

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

203937C1

PLATE, end RH

1шт.

173569C92

VALVE

SECTION ASSY, valve, Consists of ref nos. 3 thru 16

1шт.

3

BODY, section assy valve, Not serviced separately, Order no. 173569C92

1шт.

4

588345R1

SLEEVE

1шт.

5

588349R1

SEAT

1шт.

6

POPPET ASSY, Not serviced separately order kit, 204826C1

2шт.

7

203938C1

VALVE

CAP ASSY

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-NF x 3/4 type 5

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

8

173825C1

PLUNGER

1шт.

9

203942C1

SPRING

1шт.

10

212313C1

ORIFICE

PLATE, orifice

1шт.

11

395887R1

WASHER

.520 x .925 x .065

1шт.

12

203940C1

WASHER

.520 x .810 x .069

1шт.

13

85633R1

RING

retaining

1шт.

14

587570R91

PLUG

ASSY

1шт.

15

391458R1

PLUG

slotted

1шт.

16

574789R1

SPRING

2шт.

203943C91

VALVE ASSY, four way, Consists of ref no. 17 thru 27

1шт.

17

937194R1

SPRING WASHER

spool spring

1шт.

18

BODY, four way valve assy, Not serviced separately, Order 203943C91

1шт.

19

588353R1

SPRING

1шт.

20

937195R1

SPRING WASHER

1шт.

21

937197R1

SCREW,1/4" - 20 x 2-5/16"

SPOOL, screw

1шт.

22

937198R91

CAP

ASSY

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-NF x 3/4 type 5

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

23

159380C91

VALVE

POPPET ASSY

1шт.

24

203944C1

PLUG

ASSY

1шт.

25

173827C91

VALVE

PLUG ASSY, check

1шт.

26

159382C1

SPRING

flow divider

1шт.

27

173859C1

PLUNGER

lockout

1шт.

28

673644R1

WASHER

WASHER, back-up

1шт.

29

673643R91

LOCK VALVE

VALVE ASSY, relief

1шт.

30

203973C1

PLUG

ASSY

1шт.

31

203974C1

PLUG ASSY

1шт.

32

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

9шт.

159645C91

SEAL

KIT, port plate repair, Consists of

1шт.

O-RING 3/32 X 1/2 I.D.

1шт.

O-RING 3/32 X 5/8 I.D.

1шт.

O-RING 3/32 X 3/4 I.D.

1шт.

BACK-UP WASHER 3/32 X 5/8 RUB

1шт.

159383C91

PACKAGE

KIT, seal repair, Consists of

1шт.

O-RING 3/32 X 5/8 I.D.

1шт.

O-RING 3/32 X 9/16 I.D.

1шт.

O-RING 3/32 X 1/2 I.D.

1шт.

O-RING 3/32 X 3/4 I.D.

1шт.

POPPET ASSY

1шт.

O-RING 3/32 X 3/4 I.D. RUB

2шт.

204826C1

KIT

o-ring and poppet repair, Consists of

1шт.

O-RING, 1/2 I.D.

2шт.

O-RING, 9/16 I.D.

1шт.

O-RING, 3/4 I.D.

3шт.

POPPET ASSY

2шт.

203976C1

KIT

major seal repair, Consists of

1шт.

159645C91

SEAL

PORT PLATE REPAIR KIT

1шт.

159383C91

PACKAGE

SEAL, repair kit

1шт.

204826C1

KIT

O-RING AND POPPET REPAIR KIT

1шт.

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

9шт.
