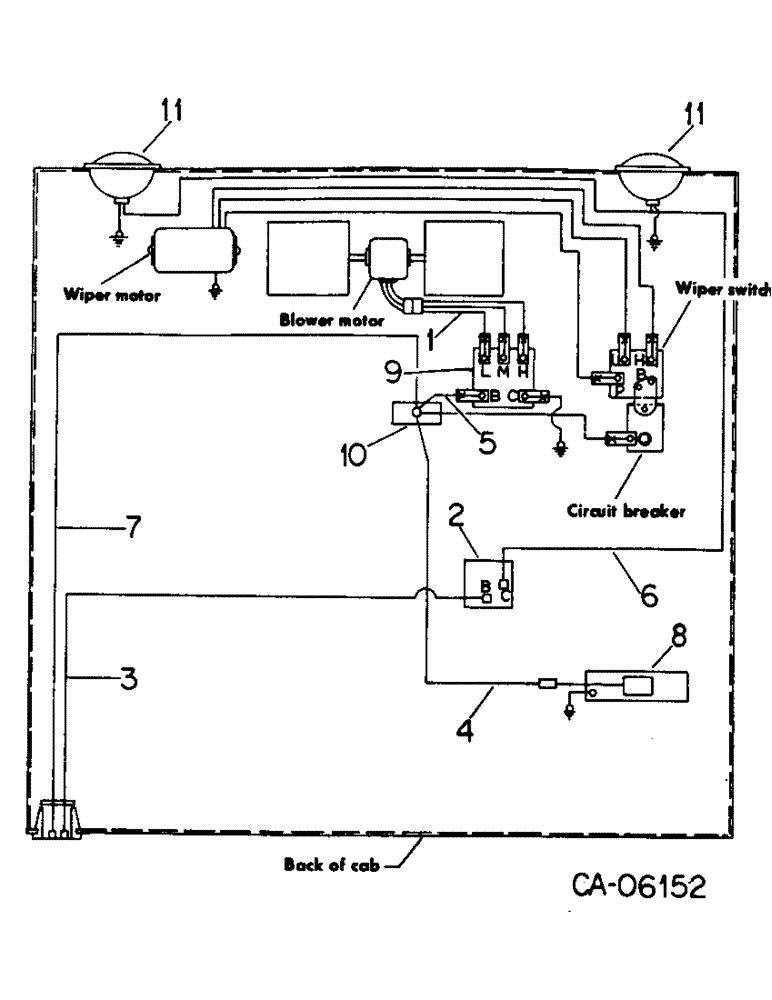

Запчасти Case IH 95 (08-13) - ELECTRICAL, WIRING DIAGRAM, OPERATORS CAB, SERIAL NUMBER 1012 AND ABOVE (06) - ELECTRICAL

1

187591C1

CABLE ASSY, blower

1шт.

2

168251C1

SWITCH

light

1шт.

3

217506C1

CABLE ASSY, cab light switch

1шт.

4

187589C1

CABLE, binding post to dome light

1шт.

5

187587C1

CABLE, binding post to light switch blower

1шт.

6

187590C1

CABLE ASSY, cab light

1шт.

7

219782C1

CABLE ASSY, cab power

1шт.

8

111397C2

LAMP

LIGHT ASSY, dome, Only serviceable item are

1шт.

117940C1

LENS

dome light

1шт.

33686

BULB

LAMP, no. 1141

1шт.

9

168822C2

SWITCH

blower

1шт.

10

378336R91

BLOCK

POST, binding

1шт.

11

175569C1

HEADLIGHT ASSY, sealed beam, Only serviceable items are

2шт.

373662R91

LAMP

SEALED BEAM UNIT

1шт.

175570C1

SEAL RETAINER

RETAINER, light

1шт.
