(08-12) - ELECTRICAL, BATTERY AND MOUNTING, SERIAL NUMBER 801 AND BELOW

Запчасти Case IH 95 (08-12) - ELECTRICAL, BATTERY AND MOUNTING, SERIAL NUMBER 801 AND BELOW (06) - ELECTRICAL

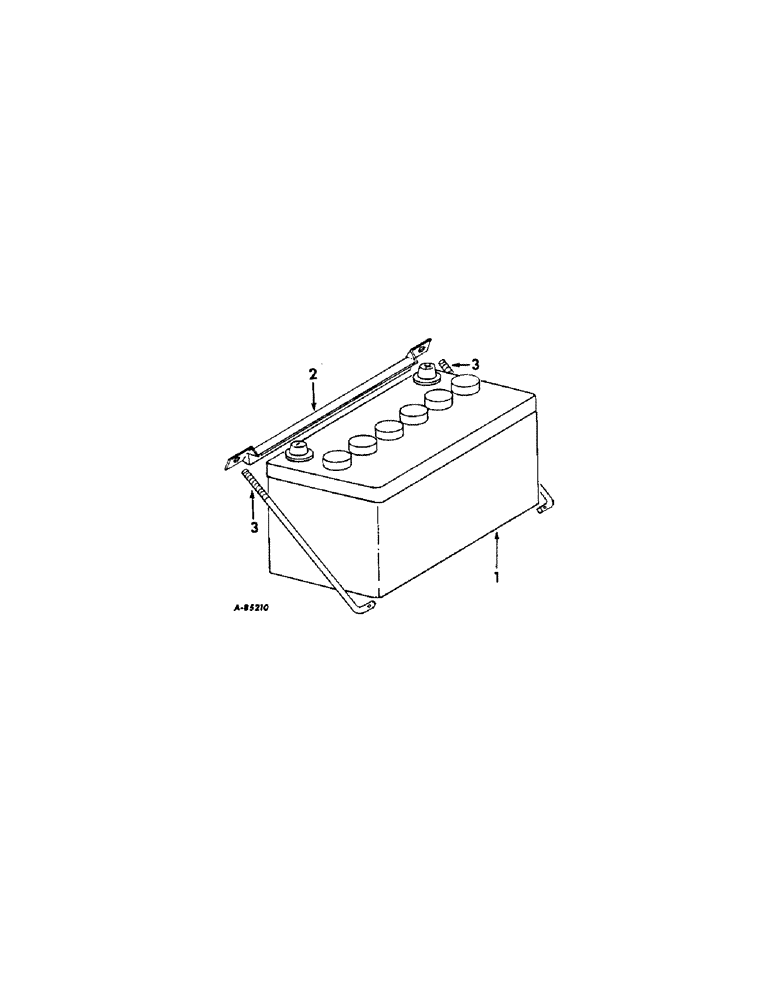

Схема запчастей Case IH 95 - (08-12) - ELECTRICAL, BATTERY AND MOUNTING, SERIAL NUMBER 801 AND BELOW (06) - ELECTRICAL
3
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

IHCM4DA

DRY BATTERY

low-maintenance, 12 volt

1шт.

2

673426R1

CLAMP, battery hold down

1шт.

3

N62379

BOLT, battery hold down

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.
