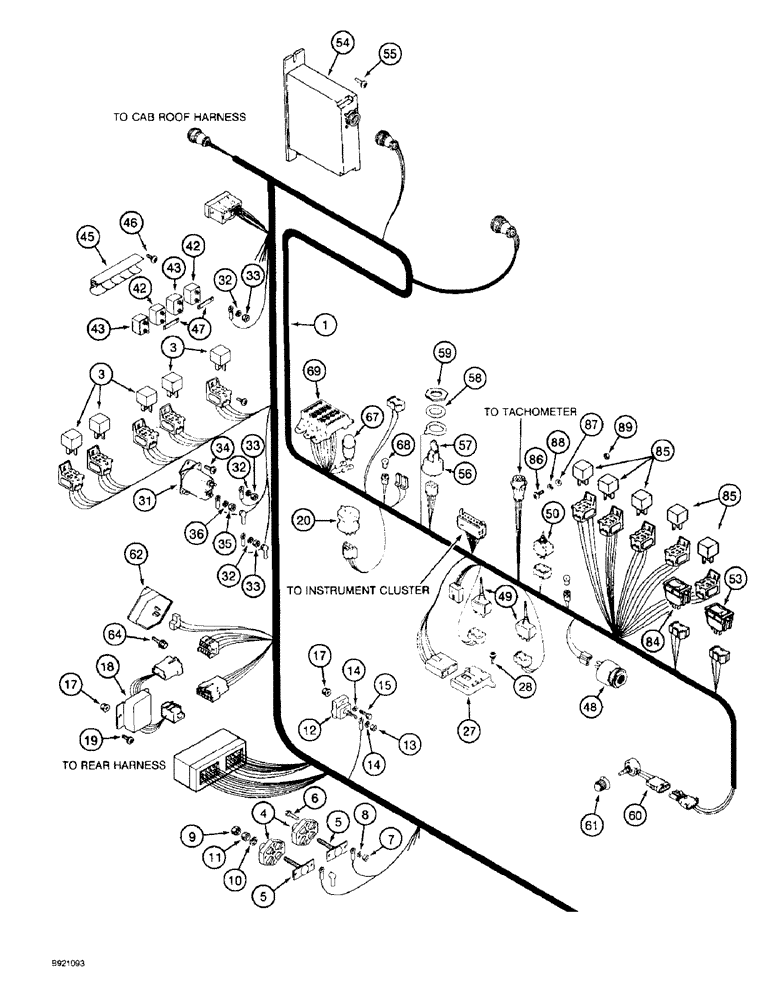

Запчасти Case IH 1800 (4-08) - CONSOLE HARNESS, RIGHT-HAND (06) - ELECTRICAL SYSTEMS

1

1983634C6

HARNESS

- console, see page 4-13 for continuation of harness

1шт.

3

1983394C2

RELAY

- mini, 12 volt, electrical

5шт.

4

468647C2

BLOCK ASSY.

BLOCK - junction, power and ground

2шт.

5

1964561C1

BAR

- junction block buss

2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

12шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

245539C1

CONNECTION

BLOCK - junction, clean ground

1шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

1шт.

17

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

18

187609C2

RECTIFIER

- diode (Replaces rectifier 187609C1)

1шт.

19

261-1478

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch, if used

2шт.

19

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch, if used

2шт.

20

107200C2

LIGHT SWITCH

SWITCH - lamp

1шт.

27

A162294

CONNECTOR, ELEC

MODULE - low coolant (Replaces module 121770C2)

1шт.

28

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8 NC x 1/2 inch

2шт.

31

107655C1

SOLENOID SWITCH

SWITCH - magnetic

1шт.

32

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

33

225-14210

NUT,#10-32

9шт.

34

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

35

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

42

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere

2шт.

43

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 ampere

2шт.

45

245870C1

BRACKET

- circuit breaker

1шт.

46

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

47

1301157C1

BAR

- circuit breaker (Replaces bar 245860C1)

2шт.

48

1546441C1

BUZZER

ALARM - audible

1шт.

49

245634C2

SWITCH

- toggle, boll box control

2шт.

50

1301521C1

SWITCH

- drum lockout

1шт.

53

245855C1

SWITCH

- rocker, distributor

1шт.

54

1987595C2

CASE

MODULE - compactor control (Replaces module 1987595C1)

1шт.

55

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

56

1252476C1

SWITCH

- ignition

1шт.

57

131313C1

KEY, IGNITION

KEY - ignition

1шт.

58

375431R1

LOCK WASHER

- flat, special

1шт.

59

365502R1

NUT

- flat hex, special

2шт.

60

245385C1

POTENTIOMETER,1000 Ohm

Header Height Control 1000 Ohm

1шт.

61

1345235C1

BUTTON

KNOB - control

1шт.

62

245835C1

SUPPRESSOR

- central load dump

1шт.

64

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

2шт.

67

453453C1

SWITCH

- push button, ether

1шт.

68

A14553

BULB

- No. 57

6шт.

69

REF

INSTRUCTION

BLOCK - fuse, parts list page 4-23

1шт.

84

92148C1

SWITCH

- fan

1шт.

85

1983394C2

RELAY

- mini, 12 volt, electrical

5шт.

86

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

1шт.

87

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

1шт.

88

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

89

225-14110

NUT,#10-24

1шт.
