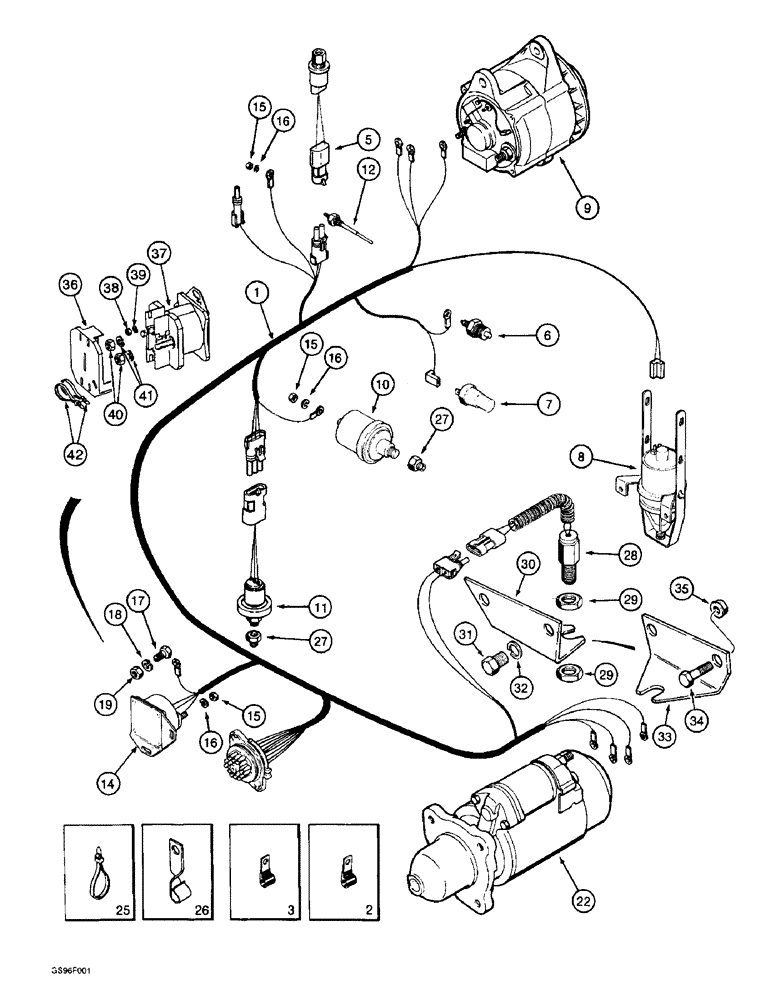

Запчасти Case IH 1800 (4-04) - ENGINE HARNESS (06) - ELECTRICAL SYSTEMS

1

1983383C1

HARNESS

- engine

1шт.

2

515-30222

CLAMP,7/8", 1/2" Bolt

P-type 7/8", 1/2" Bolt

3шт.

3

362123R1

CLIP

- engine harness

1шт.

5

92038C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure, compressor

1шт.

6

121756C2

SENSOR

- coolant temperature

1шт.

7

1345489C1

IGNITION SWITCH

SWITCH - coolant, lamp and alarm

1шт.

8

REF

INSTRUCTION

SOLENOID - ether injection, parts list page 2-15 or 2-15B

1шт.

9

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, parts list page 4-47

1шт.

10

1341330C2

TRANSMITTER

SWITCH - sender, oil pressure (Replaces switch 1341330C1)

1шт.

11

1964960C1

PRESSURE SWITCH

SWITCH - oil pressure and hydraulic lock

1шт.

12

A145513

SENSOR

- probe, coolant level

1шт.

14

A39079

SOLENOID

- magnetic relay, no longer available, order kits 178149A1 or 143119A1 below

1шт.

15

225-14210

NUT,#10-32

2шт.

16

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

17

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

22

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list pages 4-51 and 4-53

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

2шт.

26

269980R1

CLIP

- engine harness center

1шт.

27

217-9

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

VALVE - 1/8 inch PT

2шт.

28

1252494C2

TRANSMITTER

SENSOR - probe, engine RPM

1шт.

29

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

2шт.

30

1338650C3

SUPPORT

- pickup, RPM, if used (Replaces support 1338650C2)

1шт.

31

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 5/8 NC x 3/4 inch

2шт.

32

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

1546305C1

SUPPORT

- pickup, RPM, if used

1шт.

34

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

35

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover (Replaces solenoid A39079)

1шт.

36

178148A1

COVER

- solenoid switch

1шт.

37

183038A1

SOLENOID

SWITCH - solenoid with barrier

1шт.

38

225-14210

NUT,#10-32

1шт.

39

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

40

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

143119A1

COVER

KIT - starter relay

1шт.

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

115756A1

CAP

- small starter relay

1шт.

115757A1

RETAINER

- small starter relay cap

1шт.

115759A1

COVER

CAP - large starter relay

1шт.

115760A1

RETAINER

- large starter relay cap

1шт.

260-54412

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

SCREW - self-tapping, No. 8 x 3/4 inch

2шт.

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, No. 8 x 1/2 inch

4шт.

135163A1

RING

INSERT - large cap and retainer

1шт.
