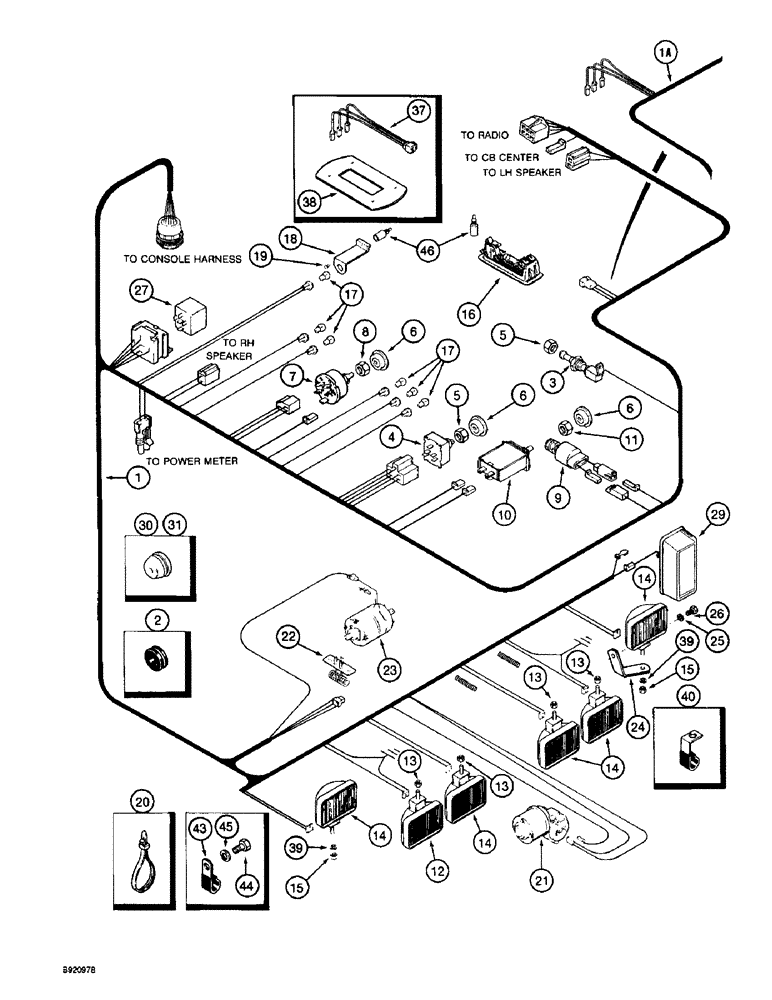

Запчасти Case IH 1800 (4-02) - CAB ROOF HARNESS (06) - ELECTRICAL SYSTEMS

1

84311C6

HARNESS

- cab roof, prior to P.I.N. JJC133070

1шт.

1a

1994715C1

HARNESS

- cab roof, P.I.N. JJC133070 and after

1шт.

2

3063674R1

GROMMET

- blower harness

1шт.

3

245175C1

SWITCH

- door dome lamp control

1шт.

4

168822C2

SWITCH

- blower

1шт.

5

109311H

JAM NUT

- hex jam, 7/16 inch NF

1шт.

6

111282C1

KNOB

- blower, wiper and thermostat switch

3шт.

7

245734C1

SWITCH

- wiper control

1шт.

8

109311H

JAM NUT

- hex jam, 7/16 inch NF

1шт.

9

111267C4

SWITCH, A/C LOW PRES

SWITCH - air conditioner, low pressure

1шт.

9

111267C4GV

SWITCH, A/C LOW PRES

SWITCH - air conditioner, low pressure

1шт.

10

109268C2

SWITCH

- cab thermostat

1шт.

11

109311H

JAM NUT

- hex jam, 7/16 inch NF

2шт.

12

91666C91

INTERIOR LIGHT

LAMP - headlamp, fog, 40 x 7 Halogen, used with harness 84311C6

1шт.

12

245555C1

LAMP

- headlamp, fog, 40 x 7 Halogen, used with harness 1994715C1

1шт.

13

325-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

4шт.

14

245897C91

LAMP, WORK

LAMP - work and outer flood, 80 x 30 Halogen

5шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

16

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, parts list page 4-35

1шт.

17

A14553

BULB

LAMP - type C-2V, trade No. 57, cab instrument panel and warning lamp (Replaces lamp 127934)

3-5шт.

18

1281975C1

BRACKET

SUPPORT - instrument panel bulb mounting

4-5шт.

19

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8 NC x 1/2 inch

4-5шт.

20

111619C1

STRAP

- tie

6шт.

21

REF

INSTRUCTION

MOTOR ASSEMBLY - wiper, includes bracket, parts list page 4-41

1шт.

22

1255876C1

RESISTOR

- blower motor

1шт.

23

190333A1

MOTOR, ELECTRIC,12V

MOTOR - blower, 12 volt, DC, PM, see page 9D-27

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1800

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

24

1283289C1

ANGLE

BRACKET - outer flood lamp mounting

2шт.

25

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

2шт.

26

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

2шт.

27

1983394C2

RELAY

- mini, 12 volt, air conditiioner

1шт.

29

REF

INSTRUCTION

LAMP ASSEMBLY - warning, parts list page 4-33

1шт.

30

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 1/2 inch ID, lamp harness, right-hand

1шт.

31

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID, lamp harness, left-hand

1шт.

36

260-53424

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 1/2"

SCREW - self-tapping, pan Phillips, No. 8 NC x 1-1/2 inch, dome lamp plate, not shown

4шт.

37

1983386C1

HARNESS

- dome lamp adapter, used with harness 84311C6

1шт.

38

1979628C1

LARGE PLATE

PLATE - dome lamp

1шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

40

370383R1

CLIP

CLAMP - warning lamp

4шт.

43

371036R1

CLIP

CLAMP - retaining, rubber covered

1шт.

44

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

46

117995C1

PACKAGE

KIT - fastener, includes 5 fasteners

1шт.
