(5-30) - WHEEL - REAR STEERING, P.I.N. JJC133070 AND AFTER

Запчасти Case IH 1800 (5-30) - WHEEL - REAR STEERING, P.I.N. JJC133070 AND AFTER (04) - STEERING

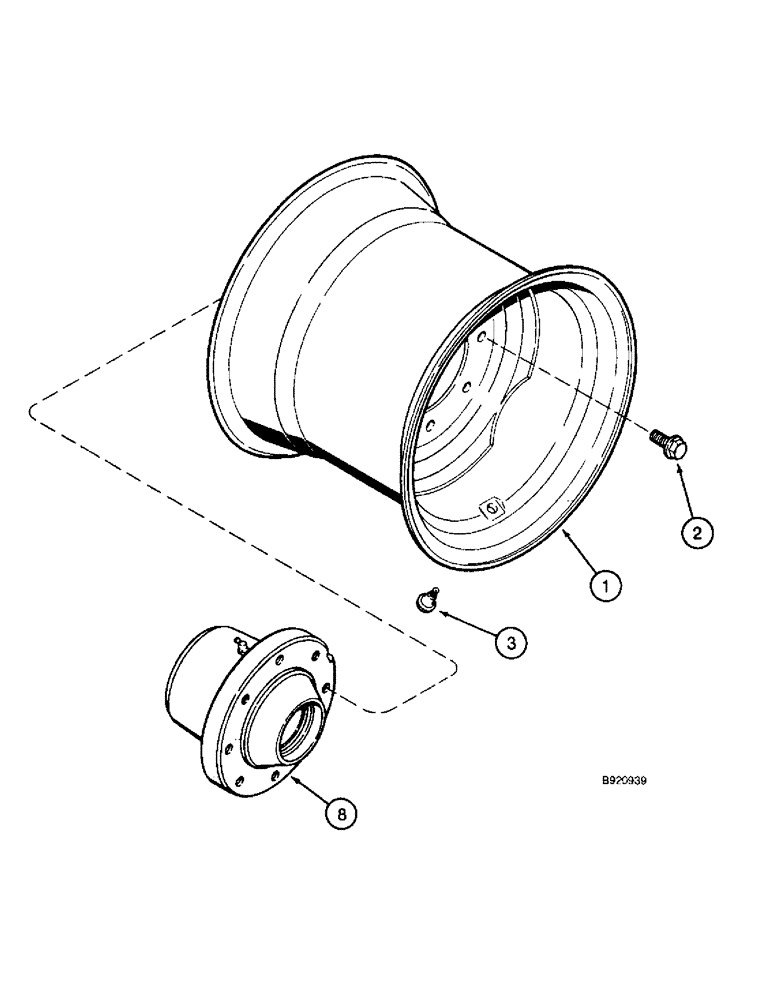

Схема запчастей Case IH 1800 - (5-30) - WHEEL - REAR STEERING, P.I.N. JJC133070 AND AFTER (04) - STEERING
2
3
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1270628C1

RIM

WHEEL - front, W14L x 16.1

2шт.

2

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

- hex flange, special

16шт.

3

A38261

VALVE

- stem, tire inflation

2шт.

8

1259528C1

HUB

ASSEMBLY - wheel, parts list page 5-27

2шт.
