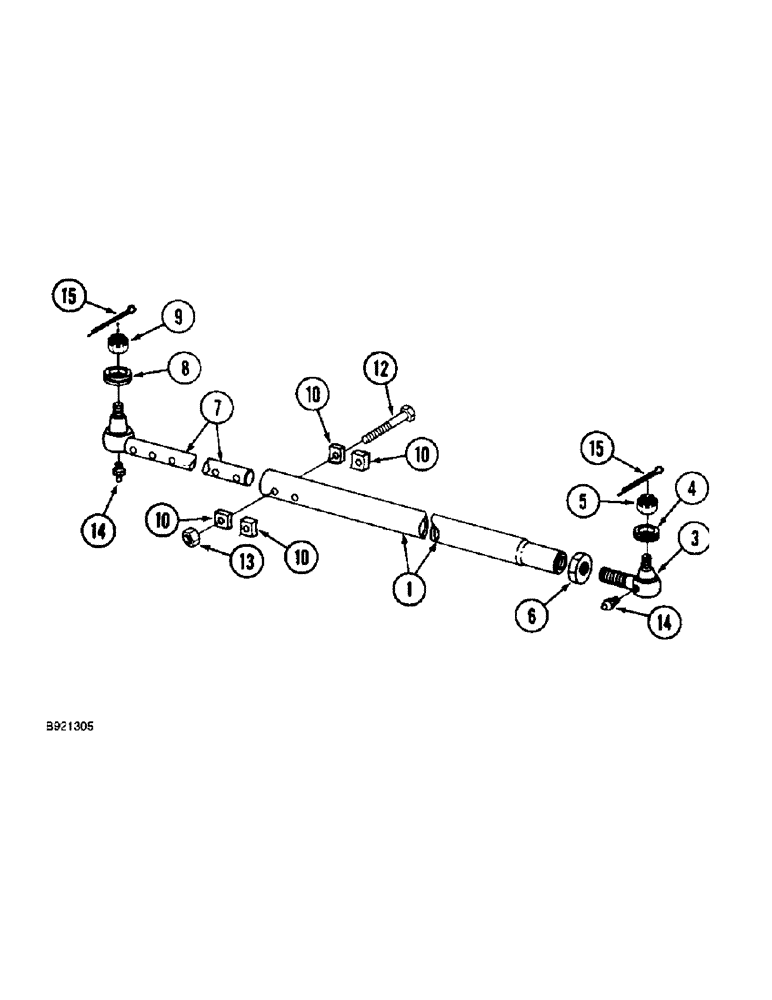

Запчасти Case IH 1800 (5-18) - STEERING AXLE TIE ROD, PRIOR TO P.I.N. JJC133070 (04) - STEERING

1270788C91

ROD

ASSEMBLY - tie

2шт.

1

1280657C1

TUBE,30.7 - 40 mm ID, 41.2 mm OD, 431.5 mm Length

- tie rod

1шт.

3

1280658C1

BALL JOINT

SOCKET ASSEMBLY - tie rod, end, right-hand thread

1шт.

4

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

- dust

1шт.

5

1280660C1

SLOTTED NUT

NUT - hex slotted, 20 mm - 1.50

1шт.

6

1280661C1

NUT

NUT - hex jam, 1-1/8" inch NF

1шт.

7

1280662C1

BALL JOINT

SOCKET ASSEMBLY - tie rod, end

1шт.

8

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

- dust

1шт.

9

1280660C1

SLOTTED NUT

NUT - hex slotted, 20 mm - 1.50

1шт.

10

A43369

CLAMP

- spacer

4шт.

12

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

2шт.

13

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

2шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

15

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.
