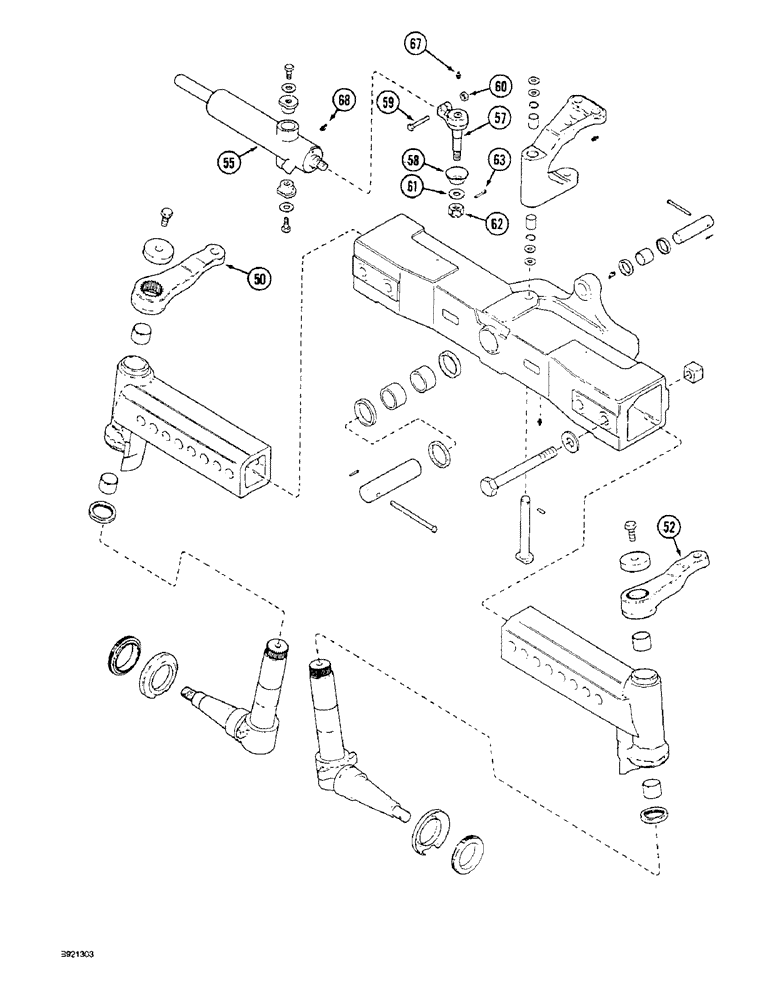

Запчасти Case IH 1800 (5-16) - ADJUSTABLE STEERING AXLE, PRIOR TO P.I.N. JJC133070 (04) - STEERING

50

1259526C2

ARM

- steering spindle, left-hand

1шт.

52

1259527C2

STEERING ARM

ARM - steering spindle, right-hand

1шт.

55

1255300C3

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, parts list page 5-11

1шт.

57

1280566C2

BALL JOINT

END ASSEMBLY - cylinder, O & S Bearing or TRW

1шт.

57

71820C91

END

ASSEMBLY - cylinder, Columbus Auto

1шт.

58

250586C1

SEAL

- dust, rubber, used with end assembly 1280566C2

1шт.

58

71822C1

SEAL

- dust, used with end assembly 71820C91

1шт.

59

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

60

131-463

NUT,3/8"-16

NUT - heavy hex, self-locking, 3/8 inch NC (Replaces nut 69981R1)

1шт.

61

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

1шт.

62

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, SLOTTED, , Castle (Replaces nut 272322) 7/8"-14, G5, Thk

1шт.

63

32-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

67

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting 109454) 1/4"-28 NPT x .54" lg

1шт.

68

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 3/16 inch (Replaces fitting 273359)

2шт.
