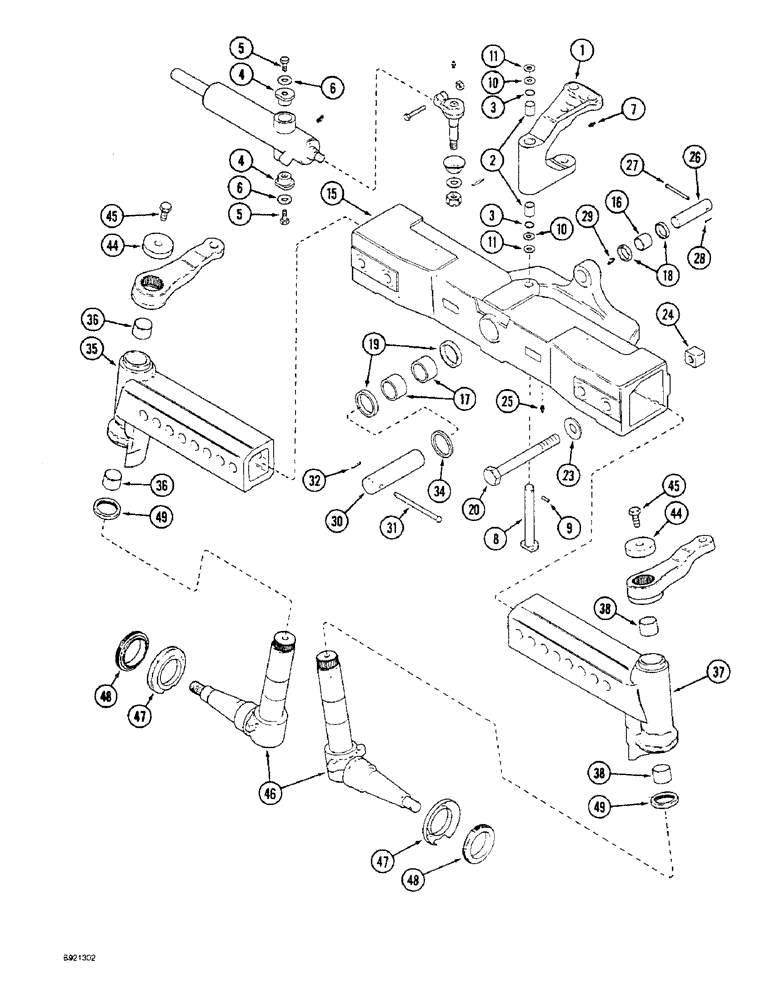

Запчасти Case IH 1800 (5-14) - ADJUSTABLE STEERING AXLE, PRIOR TO P.I.N. JJC133070 (04) - STEERING

1

1259579C5

ARM

ASSEMBLY - center steering (Replaces arm assembly 1259579C4)

1шт.

2

1259581C1

BUSHING,25.43mm ID x 28.6mm OD x 31.8mm L

- arm

2шт.

3

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

4

1259582C3

FITTING

- trunnion, cap (Replaces fitting 1259582C2)

2шт.

5

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 20 - 2.5 x 60 mm, class 10.9

2шт.

6

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch (Replaces fitting 109461)

1шт.

8

1259584C1

PIVOT PIN,25.65mm OD x 210.05mm L

PIN - center arm pivot

1шт.

9

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

1шт.

10

71421C1

WASHER

- flat, 1-1/32 x 1-3/4 x 5/32 inch

1шт.

11

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

15

1264573C92

AXLE, REAR

AXLE ASSEMBLY - high capacity

1шт.

16

1280558C2

BUSHING

- axle front pivot

1шт.

17

1280557C1

BUSHING

- axle rear pivot

2шт.

18

1280599C1

SEAL,31.7mm ID x 38.1mm OD x 3.17mm Thk

- axle pivot front

2шт.

19

1280600C1

SEAL,50.77mm ID x 63.5mm OD x 7.92mm Thk

- axle pivot rear

2шт.

20

828-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

- hex, 24 - 3.0 x 200 mm, class 10.9

4шт.

23

896-12024

WASHER,26mm ID x 44mm OD x 5mm Thk

- flat, 26 x 44 x 5 mm, hardened

4шт.

24

1264635C1

NUT

- square, special

4шт.

25

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

3шт.

26

1259512C2

PIVOT PIN

PIN - axle pivot, front

1шт.

27

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN - headed, 3/8 x 4-1/8 inch

1шт.

28

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

29

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

30

1259511C2

PIVOT PIN

PIN - axle pivot, rear

1шт.

31

439-18104

HEADED PIN,1/2" x 6 1/2"

PIN - headed, 1/2 x 6-1/2 inch, grade 2

1шт.

32

432-1216

COTTER PIN,3/16" x 1"

1шт.

34

100063C1

THRUST WASHER

- thrust

1шт.

35

1264574C2

EXTENSION ASSY.

AXLE ASSEMBLY - extension, LH section

1шт.

36

1259518C1

BUSHING,63.53mm ID x 67.21mm OD x 50.8mm L

- pivot, steering knuckle

2шт.

37

1264575C2

EXTENSION ASSY.

AXLE ASSEMBLY - extension, RH section

1шт.

38

1259518C1

BUSHING,63.53mm ID x 67.21mm OD x 50.8mm L

- pivot, steering knuckle

2шт.

44

1259669C2

WASHER

- steering arm retainer

2шт.

45

614-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 8.8, Full Thd

- hex, full threads, 20 - 2.5 x 55 mm

2шт.

46

1259519C2

STEERING KNUCKLE

SPINDLE ASSEMBLY - steering

2шт.

47

1259522C1

SHIELD

- wheel dust

1шт.

48

491641C1

SEAL

- wheel hub

1шт.

49

1270815C1

THRUST BEARING

- thrust wheel spindle

2шт.
