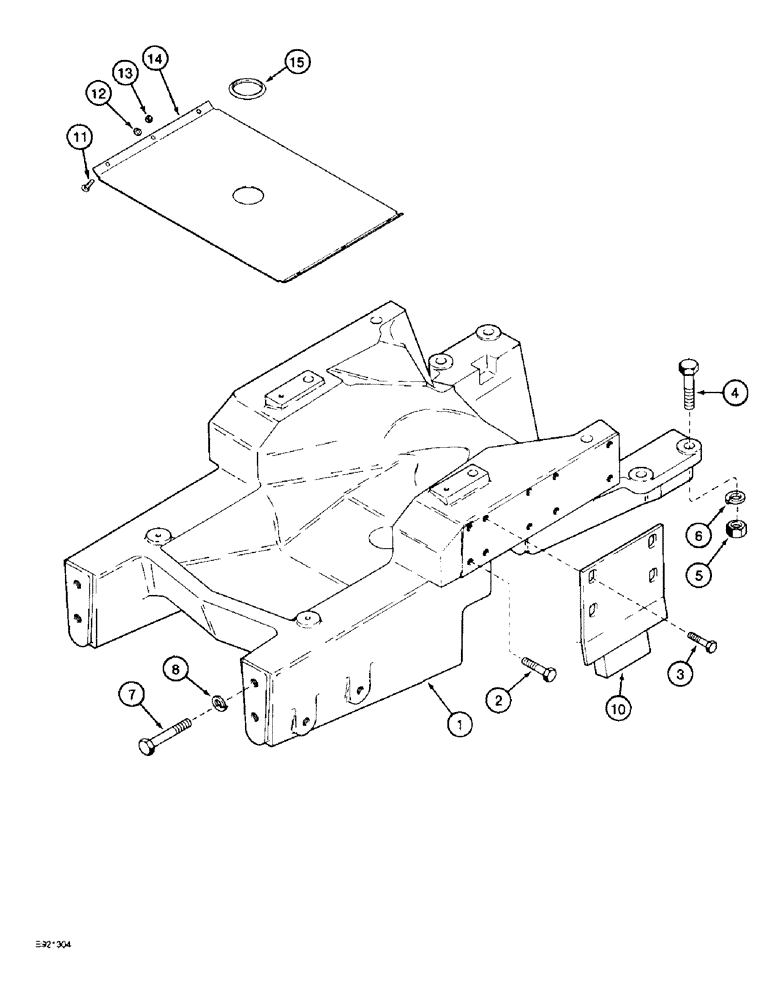

Запчасти Case IH 1800 (5-12) - STEERING AXLE BOLSTER, PRIOR TO P.I.N. JJC133070 (04) - STEERING

1

1280704C1

BOLSTER

- steering

1шт.

2

628-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

3

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

7

828-24120

BOLT,Hex, M24 x 3 x 120mm, Cl 10.9

- hex, 24 - 3.0 x 120 mm, class 10.9

4шт.

8

492-11100

LOCK WASHER,1"

1"

4шт.

10

87568C2

RETAINER

STOP - axle

2шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

10шт.

12

492-11038

LOCK WASHER,3/8"

22шт.

13

425-106

NUT,3/8"-16, Cl 5

22шт.

14

1266330C3

LARGE PLATE

PLATE - cover, fuel tank, see page 9E-23 for fuel tank guards

1шт.

15

1302758C1

PLUG

- plastic, 89 mm OD

1шт.
